Page 1

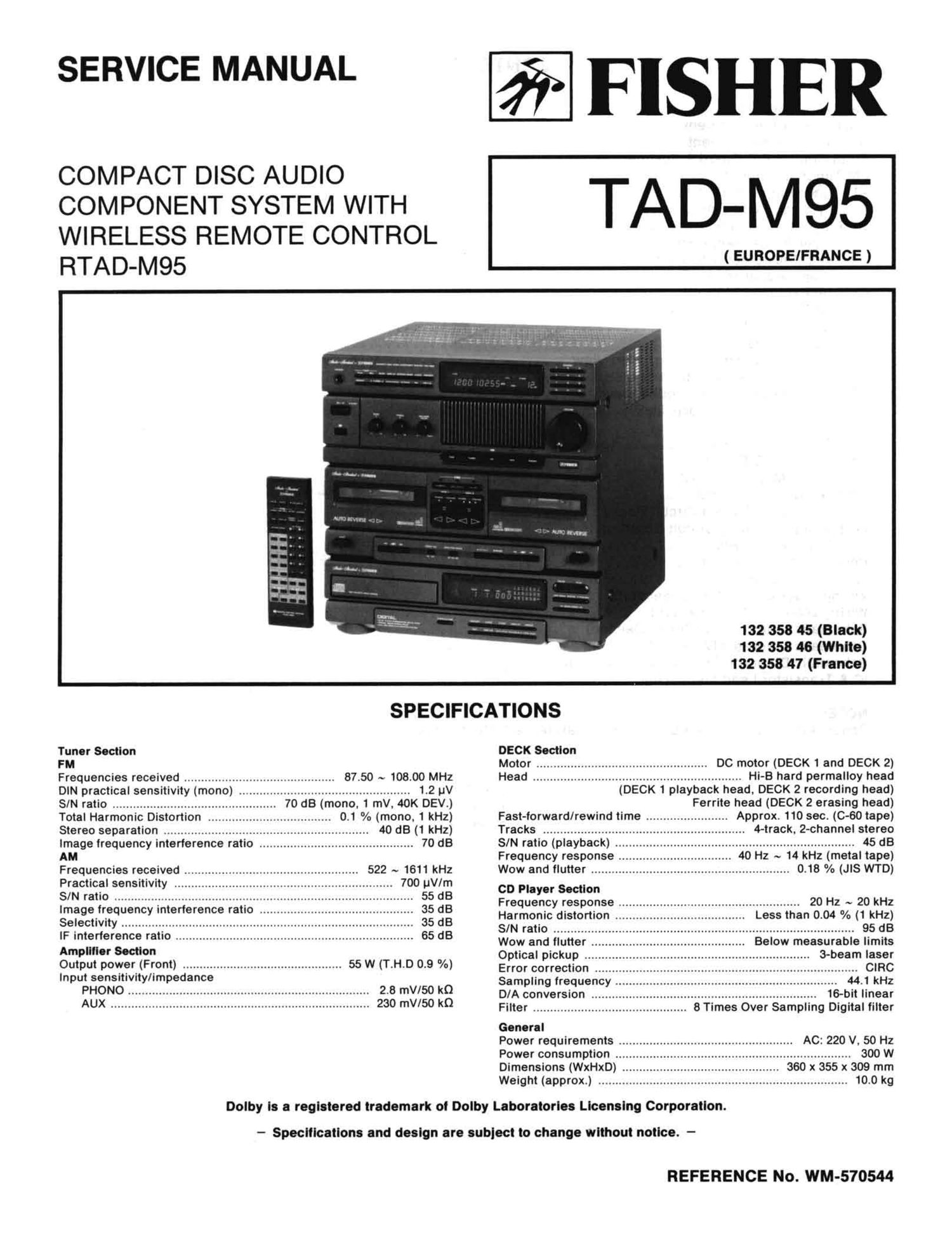

SERVICE MANUAL

COMPACT DISC AUDIO
COMPONENT SYSTEM WITH
WIRELESS REMOTE CONTROL
RTAD-M95

~.
,3.
hm».
'4'
-r-r.
win-

an
:m

~ i

I FISHER

TAD-M95

( EUROPE/FRANCE )

132 358 45 (Black)
132 358 46 (White)
132 358 47 (France)

SPECIFICATIONS
Tuner Section DECK Section
FM Motor .................................................. DC motor (DECK 1 and DECK 2)
Frequencies received ............................................ 87.50 ~ 108.00 MHz Head ............................................................. Hi-B hard permalioy head
DIN practical sensitivity (mono) .................................................. 1.2 uv (DECK 1 playback head. DECK 2 recording head)
S/N ratio ................................................ 70 dB (mono. 1 mV. 40K DEV.) Ferrite head (DECK 2 erasing head)
Total Harmonic Distortion .................................... 0.1 % (mono. 1 kHz) Fast-forward/rewind time ........................ Approx. 110 sec. (C-60 tape)
Stereo separation ............................................................ 40 dB (1 kHz) Tracks ........................................................... 4-track. 2-channel stereo
image frequency interference ratio ............................................. 70 dB S/N ratio (playback) ...................................................................... 45 dB
AM Frequency response ................................. 40 Hz ~ 14 kHz (metal tape)
Frequencies received ................................................... 522 ~ 1611 kHz Wow and flutter .......................................................... 0.18 °/o (JIS WTD)
gm if???7.'YfiY..iiiti:ti:::::::::::::::::::1:i:::1::::::::::::::::::::::::::::::__73°£333 5° p..,.. Mon 20 H 20 m
. . requency response ..................................................... 2 ~ 2
ismagefrequency interference ratio ............................................. 35 dB Harmonic distortion ...................................... Less than 0.04 % (1 kHz)
electIVIty ...................................................................................... 35 dB SIN ratio 95 dB
IF interference ratio ...................................................................... 65 dB """"""""""""""""""""""""""""""""""""""""""""""""" . .
Wow and flutter ............................................. Below measurable limits
Ampiiiier Section Optical pickup .................................................................. 3-beam laser
Output power (Front) """""""""""""""""""""""" 55 W (TH'D 0'9 0/") Error correction ............................................................................. CIRC
"9! sensitivity/impedance Sampling frequency ................................................................. 44.1 kHz
PHONO """"""""""""""""""""""""""""""""""""""""""""" 2'8 mV/50 k0 D/A conversion .................................................................. 16-bit linear
AUX ............................................................................ 230 "IV/50 k0 Filter ............................................. 8 Times over Sampling DIQIIBI filter
General
Power requirements ................................................... AC: 220 V. 50 Hz
Power consumption ..................................................................... 300 W
Dimensions (WxHxD) .............................................. 360 x 355 x 309 mm
Weight (approx.) ......................................................................... 10.0 kg

Dolby is a registered trademark oi Dolby Laboratories Licensing Corporation.

- Speclilcatlons and design are subject to change without notice. -

REFERENCE No. WM-570544
