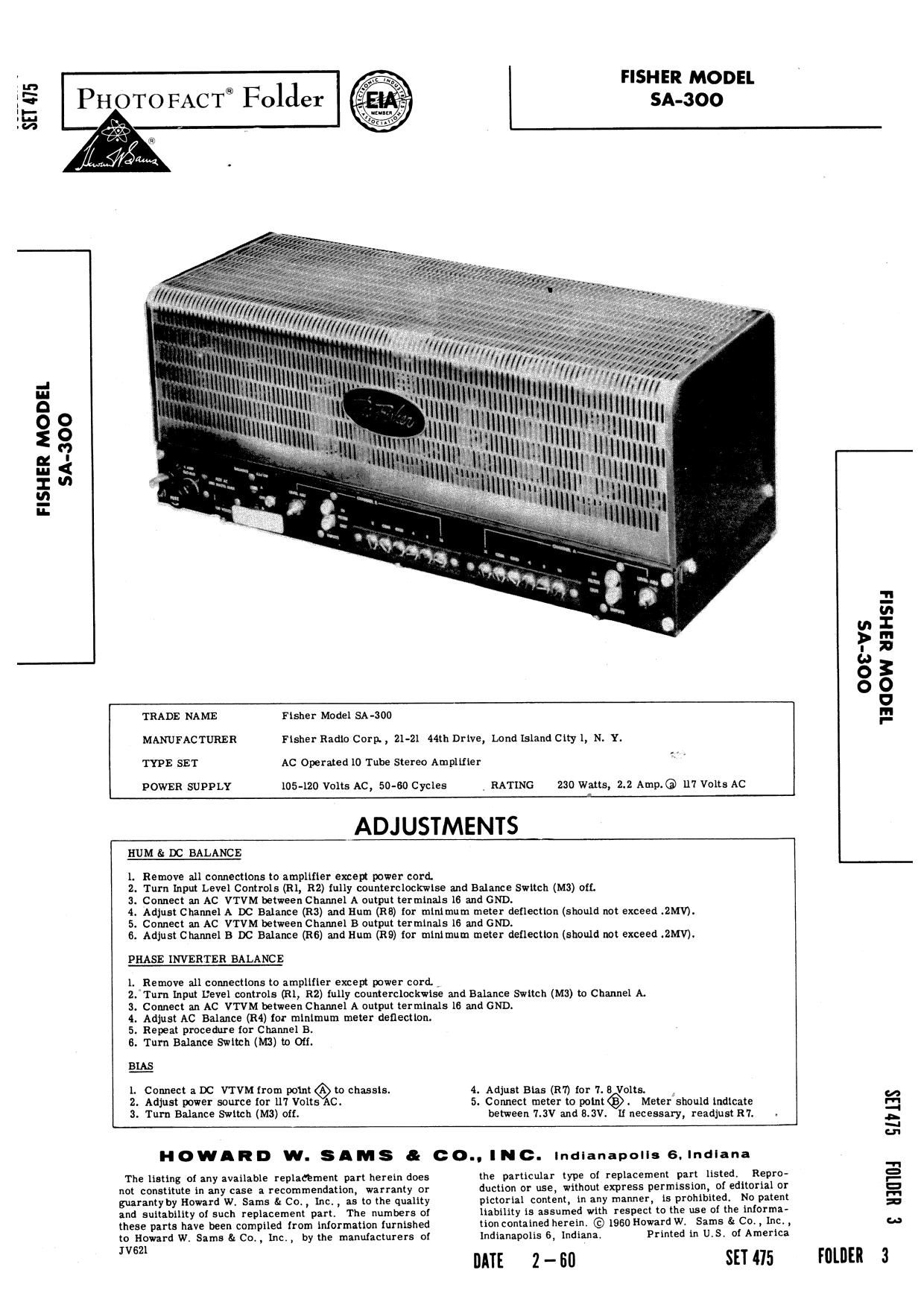

Page 1
FISHER MODEL
PHOTOFACT® Folder SA-3OO
FISHER MODEL
SA-3OO
,' r5 WfWMaW
ill/l Ink/AZ
III/11
TRADE NAME Fisher Model SA-300
MANUFACTURER Flsher Radio Corp. , 21-21 44th Drive, Lond Island City 1, N. Y.
ms sm- Ac Operated 10 Tube stereo Ampiuier '*
rowan SUPPLY 105-120 Volts Ac, 50-60 Cycles . RATING 230 Watts, 2.2 Amp.© 117 Volts AC
ADJUSTMENTS
HUM 8: DC BALANCE
Remove all connections to amplifier except power cord.
. Turn input Level Controls (R1, R2) fully counterclockwise and Balance Switch (M3) 011.
. Connect an AC VTVM between Channel A output terminals 16 and GND.
. Adjust Channel A DC Balance (R3) and Hum (R8) for minimum meter deflection (should not exceed .ZMV).
. Connect an AC VTVM between Channel B output terminals 16 and aim.
. Adjust Channel B DC Balance (R6) and Hum (R9) for minimum meter deflection (should not exceed .ZMV).
@mmer
PHASE INVERTER BALANCE
1. Remove all connections to amplltier except power cord.
2. Turn input Bevel controls (R1, R2) fully counterclockwise and Balance Switch (M3) to Channel A.
3. Connect an AC VTVM between Channel A output termlnals l6 and GND.
4. Adjust AC Balance (R4) tor minimum meter deflection.
5. Repeat procedure tor Channel B.
8. Turn Balance Switch (MB) to Off.
BIAS
1. Connect a DC VTVM from point ® to chassis. 4. Adjust Bias (R7) (or 1. 8 Volts.
2. Adjust power source lor ll'l Volts AC. 5. Connect meter to point®. Meter should indicate
3. Turn Balance Switch (M3) oil. between 7.3V and 8.3V. it necessary, readjust R7.
HOWARD w. SAMS & CO" INC. lndlanapolls 6.Indlana
The listing of any available replaCbment part herein does the particular type 0! replacement part listed. Repro-
not constitute in any case a recommendation, warranty or duction or use, without express permission, of editorial or
guaranty by Howard W. Sams & Co. , lnc. , as to the quality pictorial content, in any manner, ls prohibited. No patent
and suitability oi such replacement part. The numbers 01 liability is assumed with respect to the use oi the informa-
these parts have been compiled from information iurnlshed tion contained herein. © 1960 Howard W. Sams K1 Co. , Inc. ,
to Howard W. Sims 51 C0,, lnc,, by the manufacturers of Indianapolis 6Y lndiana, Printed in U.S. oi America
JVGZI
DATE 2- 5|] SH 475
OOC'VS
EOOW HEHSH
El? 138
E 30101
FOLDER 3
