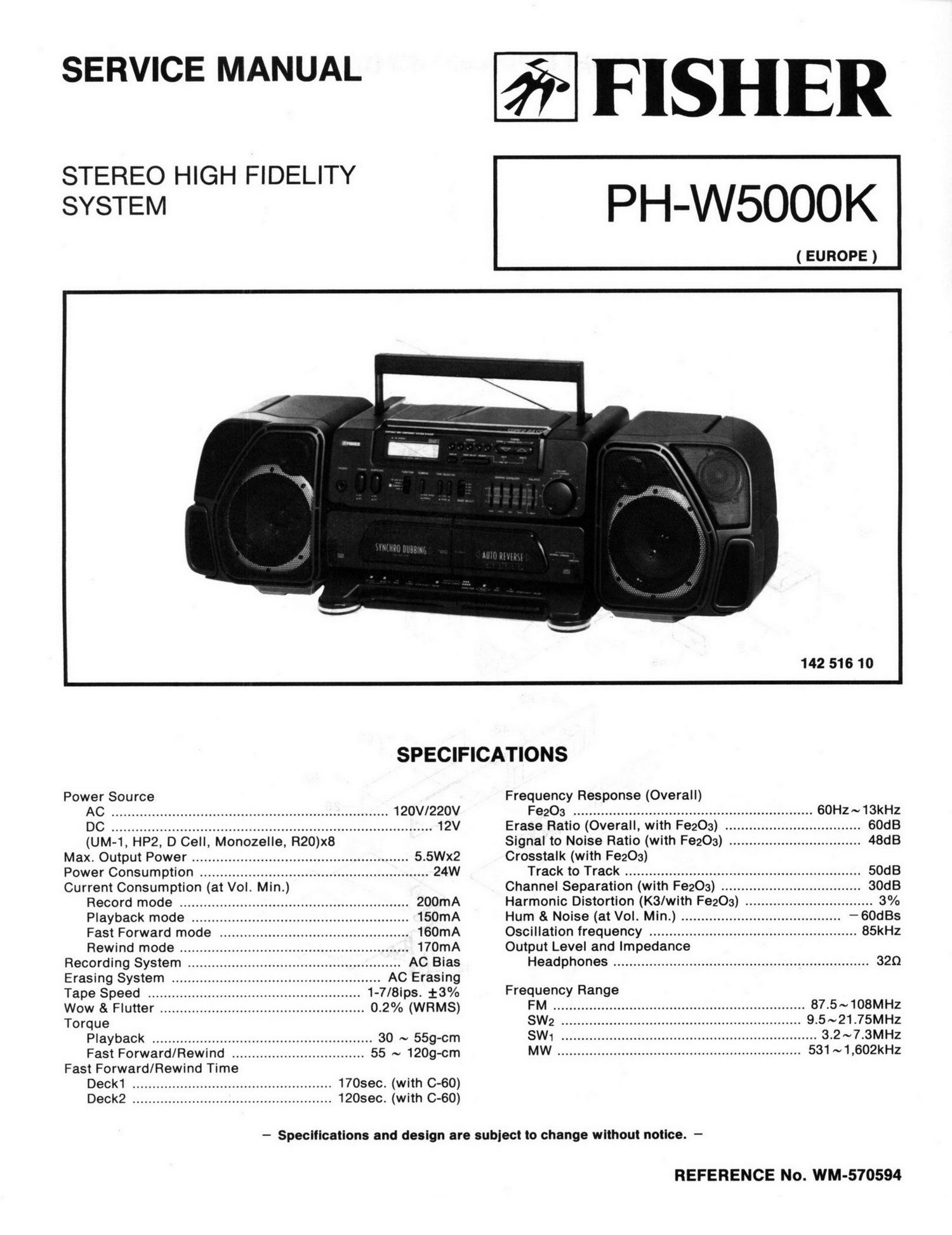

Page 1
SERVICE MANUAL
STEREO HIGH FIDELITY
SYSTEM
- FISHER
PH-WSOOOK
(EUROPE)
142 516 10
SPECIFICATIONS
Power Source Frequency Response (Overall)
AC ..................................................................... 120V/220V F9203 ............................................................ 60Hz ~13kHz
DC ................................................................................ 12V Erase Ratio (Overall, with Fe203) .................................. 60dB
(UM-1, HP2, D Cell, Monozelle, R20)x8 Signal to Noise Ratio (with F8203) ................................. 48dB
Max. Output Power ...................................................... 5.5Wx2 Crosstalk (with Fe203)
Power Consumption ......................................................... 24W Track to Track ........................................................... 50dB
Current Consumption (at Vol. Min.) Channel Separation (with Fe203) ................................... 30dB
Record mode ......................................................... 200mA Harmonic Distortion (KS/with Fe203) ................................ 3%
Playback mode ...................................................... 150mA Hum & Noise (at Vol. Min.) ........................................ -60st
Fast Forward mode ............................................... 160mA Oscillation frequency .................................................... 85kHz
Rewind mode ......................................................... 170mA Output Level and Impedance
Recording System ..................................................... AC Bias Headphones ................................................................ 320
Erasing System .................................................... AC Erasing
Tape Speed ..................................................... 1-7/8ips. 13% Frequency Range
Wow & Flutter ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 0.2% (WRMS) FM ............................................................... 87.5~108MHz
Torque SW2 ............................................................ 9.5~21.75MHz
Playback ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 30 ~ 559-cm SW1 ................................................................ 3.2~7.3MHZ
Fast Forward/Rewind _________________________________ 55 ~ 1209-cm MW ............................................................. 531 ~1,602kHZ
Fast Forward/Rewind Time
Deckt .................................................. 17OSec. (with 0-60)
Deck2 .................................................. 1205ec. (with C-60)
- Specifications and deslgn are subject to change without notice. -
REFERENCE No. WM-570594
