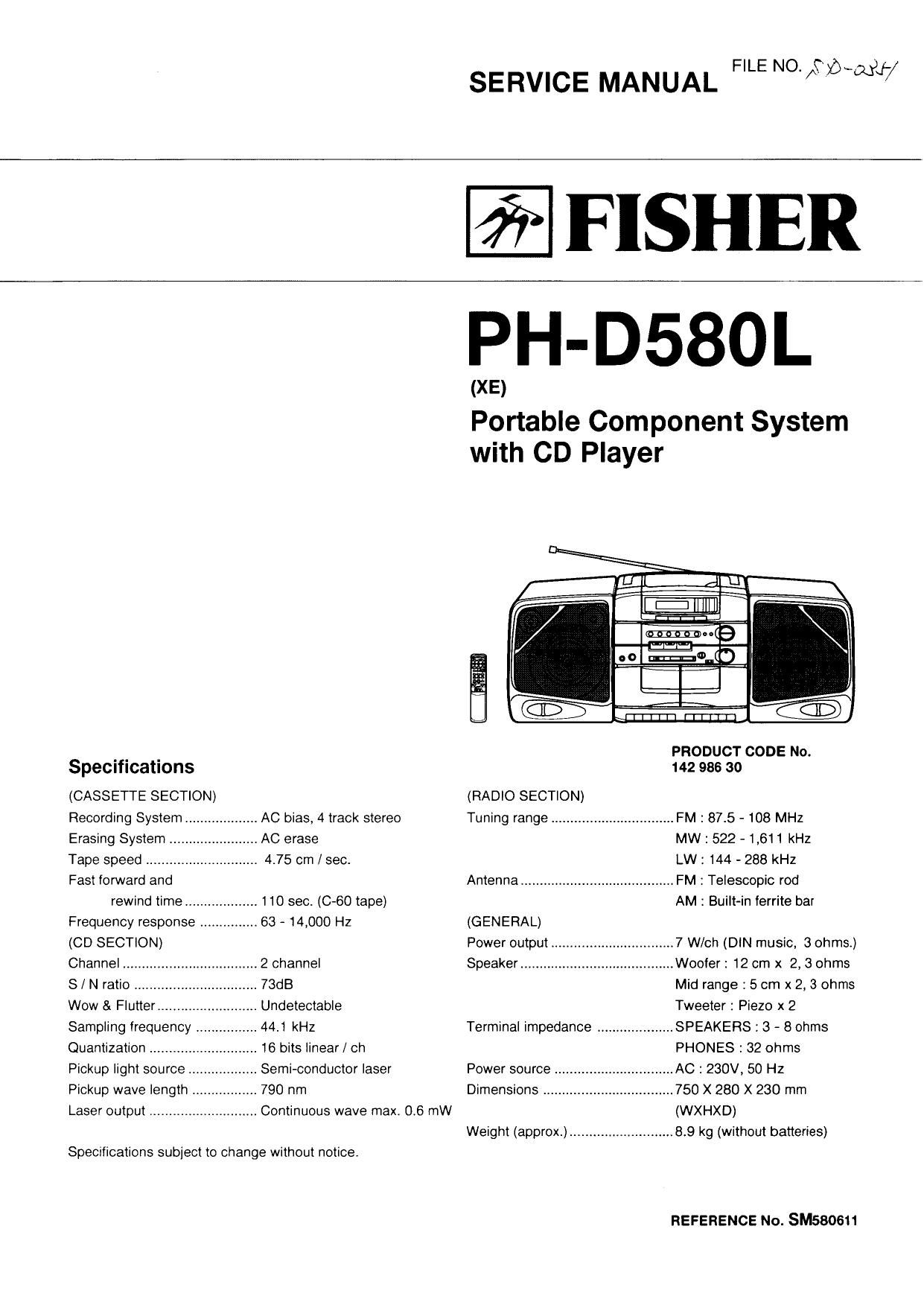

SERVICE MANUAL FILE Nowcgflyf/
FISHER
Specifications
(CASSETTE SECTION)
Recording System ................. AC bias, 4 track stereo
Erasing System ....................... AC erase
Tape speed ..................... 4.75 cm / sec.
Fast forward and
rewind time ........ 110 sec. (0-60 tape)
Frequency response 63 - 14,000 Hz
(CD SECTION)
Channel ................................... 2 channel
S/N ratio 73dB
Wow & Flutter. . Undetectable
Sampling frequency ..... ....44.1 kHz
Quantization ......... 16 bits linear / ch
Semi-conductor laser
790 nm
Continuous wave max. 0.6 mW
Pickup light source
Pickup wave length
Laser output ..........
Specifications subject to change without notice.
PH-D580L
(XE)
Portable Component System
with CD Player
CK)
PRODUCT CODE No.
142 986 30
(RADIO SECTION)
Tuning range FM :87.5 - 108 MHz
MW : 522 - 1,611 kHz
LW: 144 - 288 kHz
Antenna ....................................... FM : Telescopic rod
AM : Built-in ferrite bar
(GENERAL)
Power output ...7 W/ch (DlN music, 3 ohms.)
Speaker ........ ...Woofer: 12 cm x 2,3 ohms
Mid range : 5 cm x 2, 3 ohms
Tweeter : Piezo x 2
Terminal impedance .................... SPEAKERS :3 - 8 ohms
PHONES :32 ohms
Power source ............................... AC : 230V, 50 Hz
Dimensions .................................. 750 X 280 X 230 mm
(WXHXD)
Weight (approx) ........................... 8.9 kg (without batteries)
REFERENCE No. SM580611
