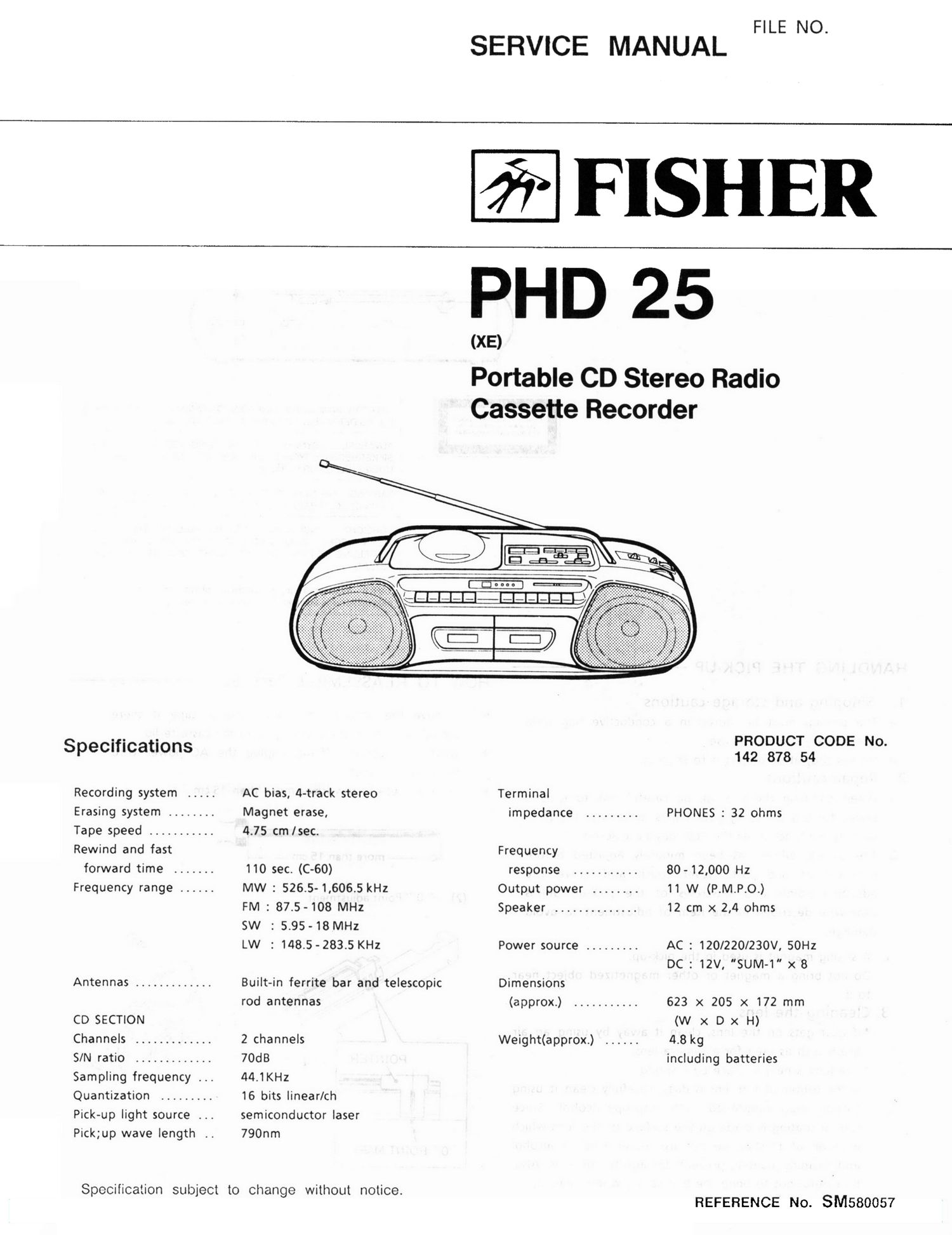

Page 1
FILE NO.
SERVICE MANUAL
I FISHER
Specifications
Recording system .....
Erasing system ........
Tape speed ...........
Rewind and fast
forward time .......
Frequency range ......
Antennas .............
CD SECTION
Channeb .............
S/N ratio .............
Sampling frequency
Quantization .........
Pick-up light source
Pick;up wave length .
PHD 25
(XE)
Portable CD Stereo Radio
Cassette Recorder
.. Q
235.:335325223335 /
I 21'
g
AC bias, 4-track stereo
Magnet erase,
4.75 cm/sec.
110 sec. (C-60)
MW : 526.5- 1,606.5 kHz
FM : 875-108 MHz
SW : 5.95-18MHz
LW : 1485-2835 KHz
Built-in ferrite bar and telescopic
rod antennas
2 channels
70dB
44.1KHz
16 bits linear/ch
semiconductor laser
790nm
Specification subject to change without notice.
Terminal
impedance .........
Frequency
response ...........
Output power ........
Speaker ..............
Power source .........
Dimensions
(approx.) ...........
Weight(approx.) ......
PRODUCT CODE No.
142 878 54
PHONES : 32 ohms
80-12,000 Hz
11 W (P.M.P.O.)
12 cm x 2,4 ohms
AC : 120/220/230V, SOHz
DC : 12V, SUM-1" x 8
623 x 205 x 172 mm
(W x D x H)
4.8 kg
including batteries
REFERENCE No. SM580057
