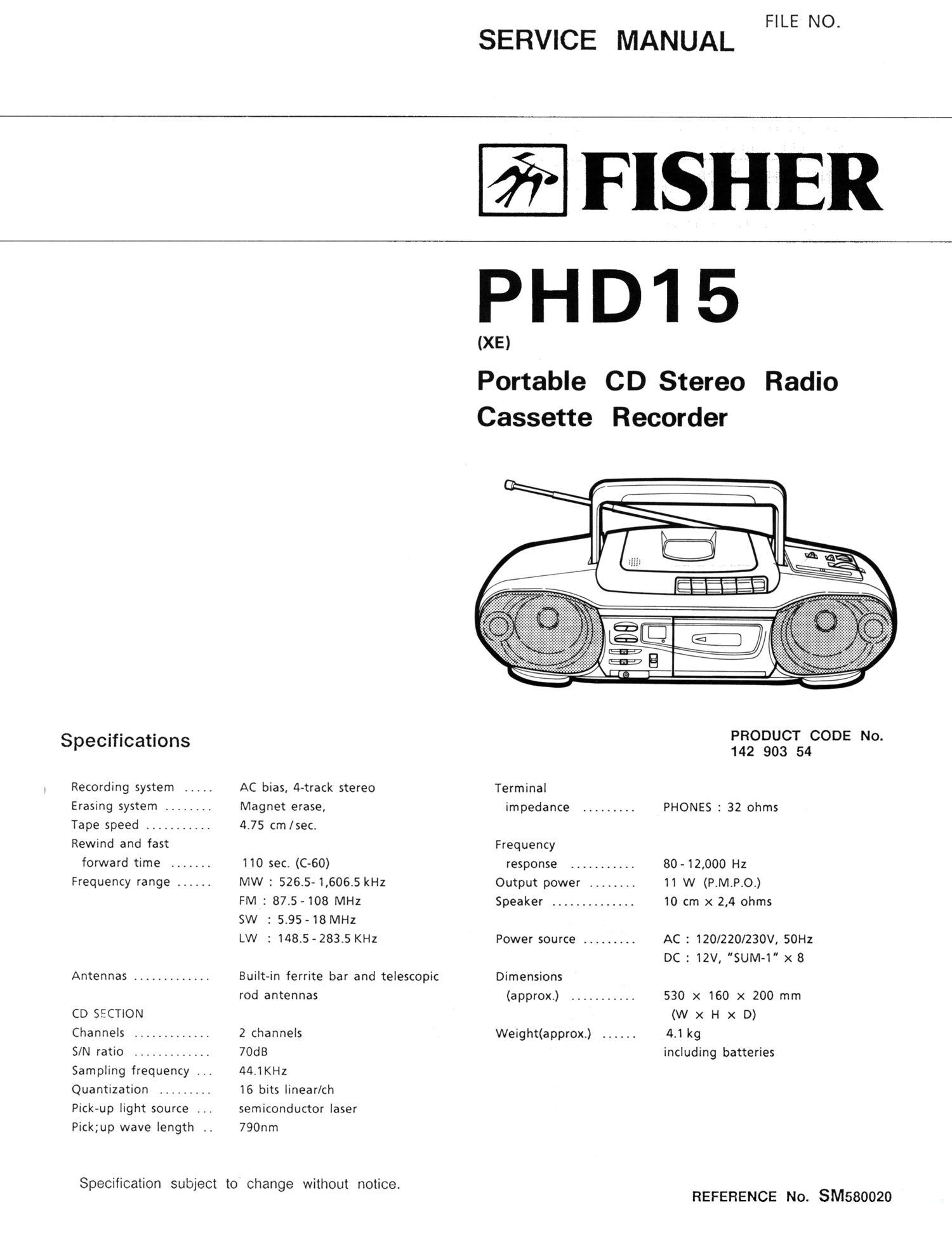

Page 1
FILE NO.
SERVICE MANUAL
I FISHER
Specifications
Recording system .....
Erasing system ........
Tape speed ...........
Rewind and fast
forward time .......
Frequency range ......
Antennas .............
CD SECTION
Channeb .............
S/N ratio .............
Sampling frequency . .
Quantization .........
Pick-up light source
Pick;up wave length ..
AC bias, 4-track stereo
Magnet erase,
4.75 cm/sec.
110 sec. (C-60)
MW : 526.5- 1,606.5 kHz
FM: 875-108 MHz
SW : 5.95- 18 MHz
LW : 1485-2835 KHZ
Built-in ferrite bar and telescopic
rod antennas
2 channels
70dB
44.1KHZ
16 bits linear/ch
semiconductor laser
790nm
Specification subject to change without notice.
PHI15
(XE)
Portable CD Stereo Radio
Cassette Recorder
PRODUCT CODE No.
142 903 54
Terminal
impedance ......... PHONES : 32 ohms
Frequency
response ........... 80- 12,000 Hz
Output power ........ 11 W (P.M.P.O.)
Speaker .............. 10 cm x 2,4 ohms
Power source ......... AC : 120/220/230V, SOHz
DC : 12V, SUM-1 x 8
Dimensions
(approx.) ........... 530 x 160 x 200 mm
(W x H x D)
Weight(approx.) ...... 4.1 kg
including batteries
REFERENCE No. SM580020
