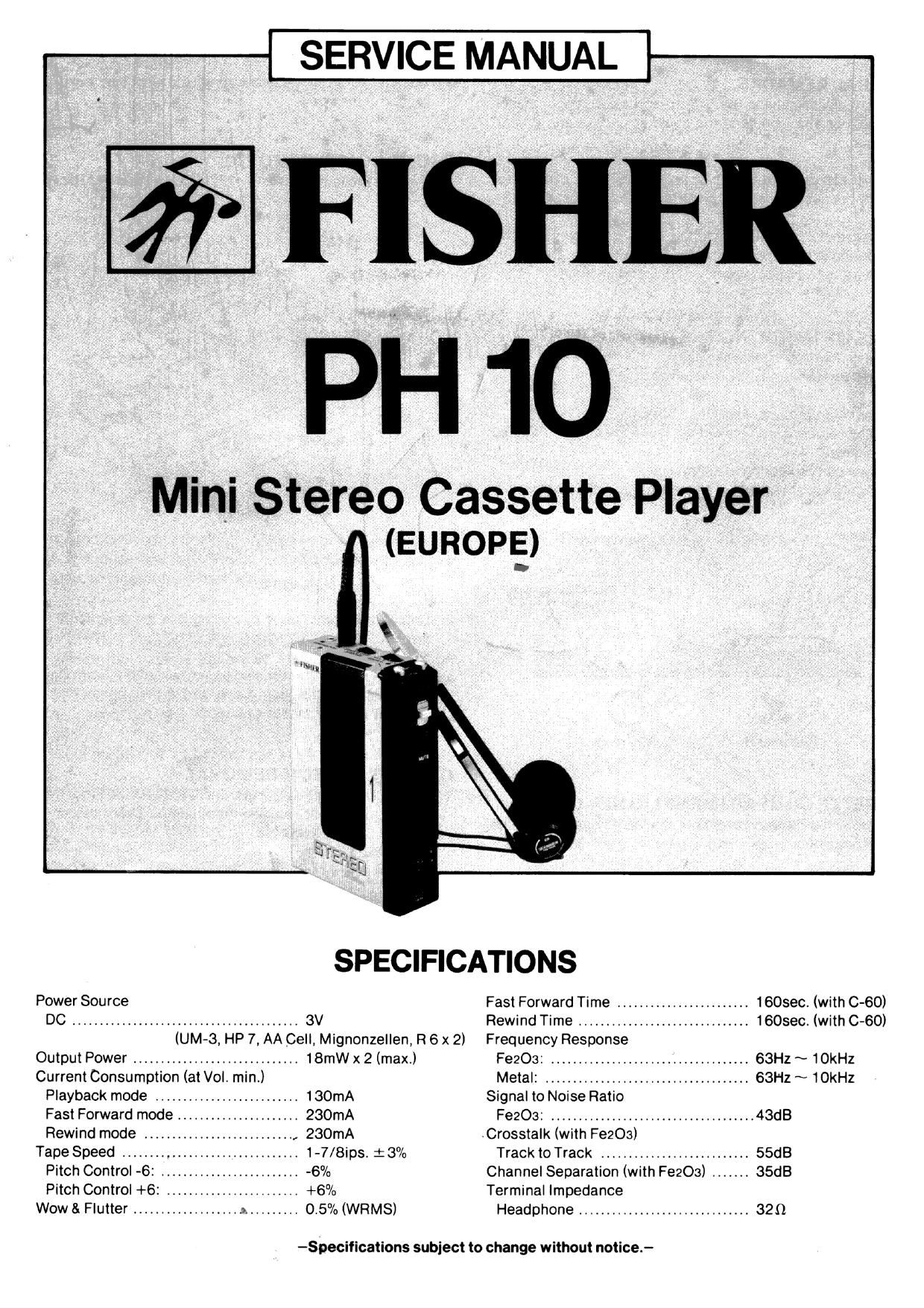

Page 1
SERVICE MANUAL
I FISHER
PH1O
Mini Stereo Cassette Player
(EUROPE)
SPECIFICATIONS
Power Source
DC ......................................... 3V
(UM-3, HP 7, AA Cell, Mignonzellen, R 6 x 2)
Output Power ............................. 18mW x 2 (max)
Current Consumption (at Vol. min.)
Playback mode .......................... 130mA
Fast Forward mode . . 230mA
Rewind mode ........................... , 230mA
Tape Speed ................................ 1-7/8ips. : 3%
Pitch Control -6: t -6"/o
Pitch Control +6: .................... +6%
Wow & Flutter ................... :- .......... 0.5% (WRMS)
Fast Forward Time ........................ 1608ec. (with 0-60)
Rewind Time ............................... leosec. (with 0-60)
Frequency Response
Fe203: .................................... 63Hz ~ 10kHz
Metal: ................................ 63Hz ~ 10kHz
Signal to Noise Ratio
Fe203: ..................................... 43dB
Crosstalk (with FezOs)
Track to Track ........................... 55:18
Channel Separation (with F9203) rrrrrrr 35dB
Terminal impedance
Headphone ............................... 32!)
-Specifications subject to change without notice.-
Page 2
CABINET EXPLODED VIEW
