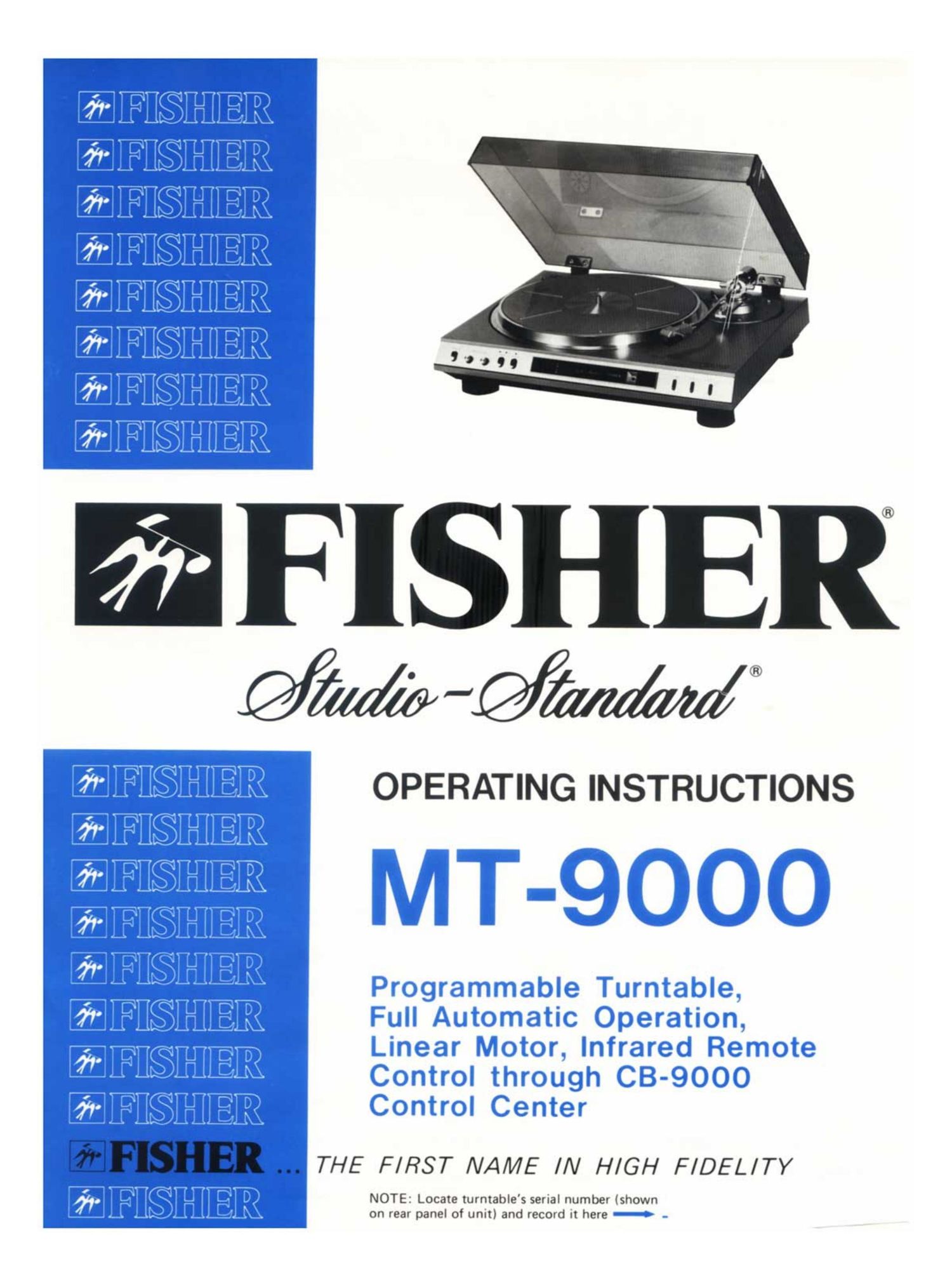

Page 1
OPERATING INSTRUCTIONS
fiFISHER THE FIRST NAME //v H/GH F/DEL/TY
NOTE: Locate turntable's serial number (shOWn
on rear panel of unrt) and record It here
Page 2
is» FISHER MT-9000
SPECIFICATIONS
MotOr 120 Pole Linear
Drive System Direct
Wow 8: Flutter iWRMSi 0.035 %
Rumble (DlN 455398) -70 d8
Speed Variation 20.3 %
Speed Control Range 16 %
Tracking Force 2 gram
Platter Diameter 12-5/16"
Platter Weight 2.2 lbs.
Strobe Light Yes
Record Speed Selector 33/45 rpm
Auto Function
Start Yes
Stop Yes
Reiect Yes
Cueing Yes
Repeat Yes
Automatic Tone Arm Return
at End 0! Record Yes
Manual FunctiOn
Start Yes
Stop Yes
Remote Control Function
Start Yes
Program Selection Yes
Reject Yes
Cueing Yes
Stop Yes
Tone Arm Data
Resonance «1510 Hz
Balance Adjustment Weight
Effective Length 222 mm
Shape J-Form
Bearing Type
Horizontal Thrust
Friction Sensitivity 0.15 gram
Vertical Pivot
Friction Sensitivity 0.2 gram
Max. Tracking Error 9.1.5 "
Cartridge Supplied Stereo Magnetic (MG-100$)
GENERAL 120 VAC .+10%
Power Requirements 50/60 Hz
Power Consumption 4.5 Watts
Dimensions lWxDxl-l) 17~5I16"x153/16"x5-5I16"
Weight iapprox.) 18 lbs.
'Specifications are subject to change without notice.
TI-IE WARRANTY ON THIS UNIT DOES NOT COVER DAMAGE CAUSED BY MISHANDLING OR MISUSE.
WARNING: To prevent fire or shock hazard, do not expose turntable to rain or moisture.
