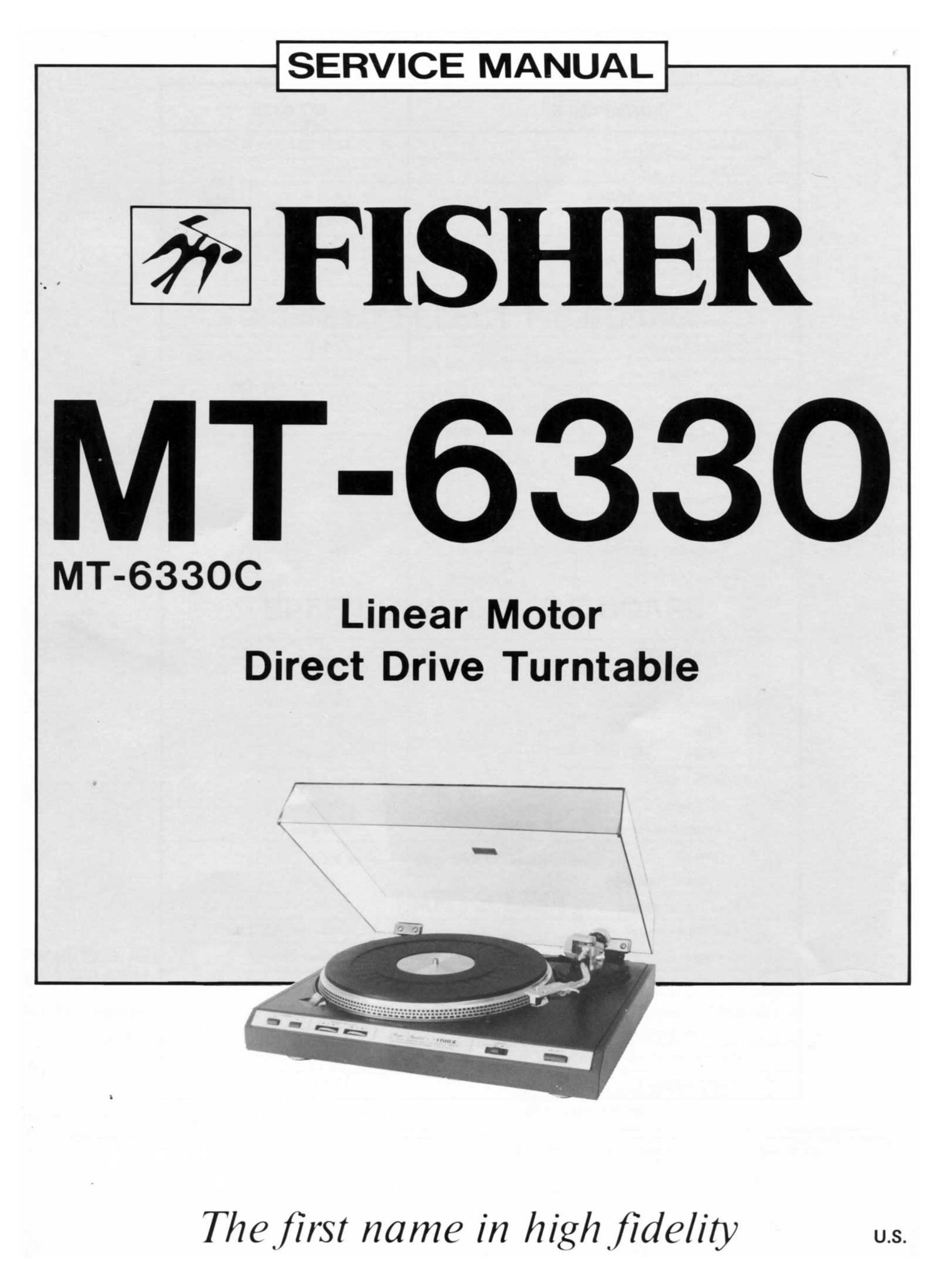

Page 1
SERVICE MANUAL
FISHER
MT-633.
MT-6330C
Linear Motor
Direct Drive Turntable
The/inst name in high fidelity u.s.
Page 2
SPECIFICATIONS
TURNTABLE
MT-633O
Motor 120 Pole Linear AC Servo
Drive Direct
Wow and Flutter (WRMS) p 0.035 %
Rumble (DIN 455398) -70 dB
Speed Variation 10.5%
Speed Control Range :3 %
Tracking Force Range
0.6 - 3.5 grams
Tracking Force Adjustment
Calibrated Counter Weight
Platter Diameter 12-3/8
Platter Weight 2.2 lbs.
Strobo Light Yes
Record Speed Selector 33/45 rpm
Auto Function
Stop Yes
Reject Yes
Automatic
Tone Arm Return at End of Record Yes
Manual Function
Start Yes
Stop Yes
Tone Arm Date
Resonance <10 Hz
Balance Adjustment
Counter-Weig ht
Effective Length 222 mm
Shape S-Form
Bearing-Type
Horizontal Thrust
Friction Sensitivity 0.18 gram
Vertical Pivot
Friction Sensitivity 0.22 gram
Max. Tracking Error :1.8°
Anti Skate Control
Calibrated Adjustable
Cueing
Viscous Damped
Overhang Indicator
Yes
GENERAL 120V AC 110%
Power Requirements 50/60 Hz 3.5 W
Dimensions (W x D x H) 17-5/16" x 14-15/16" x 5-7/16"
Weight (approx.) 13.7 lbs.
Because Fisher products are Sllb}((l to continuous improi-ement. Fisher reserves the right to modify. change. or alter any dCSlgll or spectfications without notice and without incurring any
obligation. Fisher reserves the right to make changes and improvements upon its products without any obligation to install such changes upon any of its products previously manufactured
