Fisher MT 6310 Service Manual
This is the 8 pages manual for Fisher MT 6310 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher MT 6310 Service Manual (Ocr-read)
Page 1

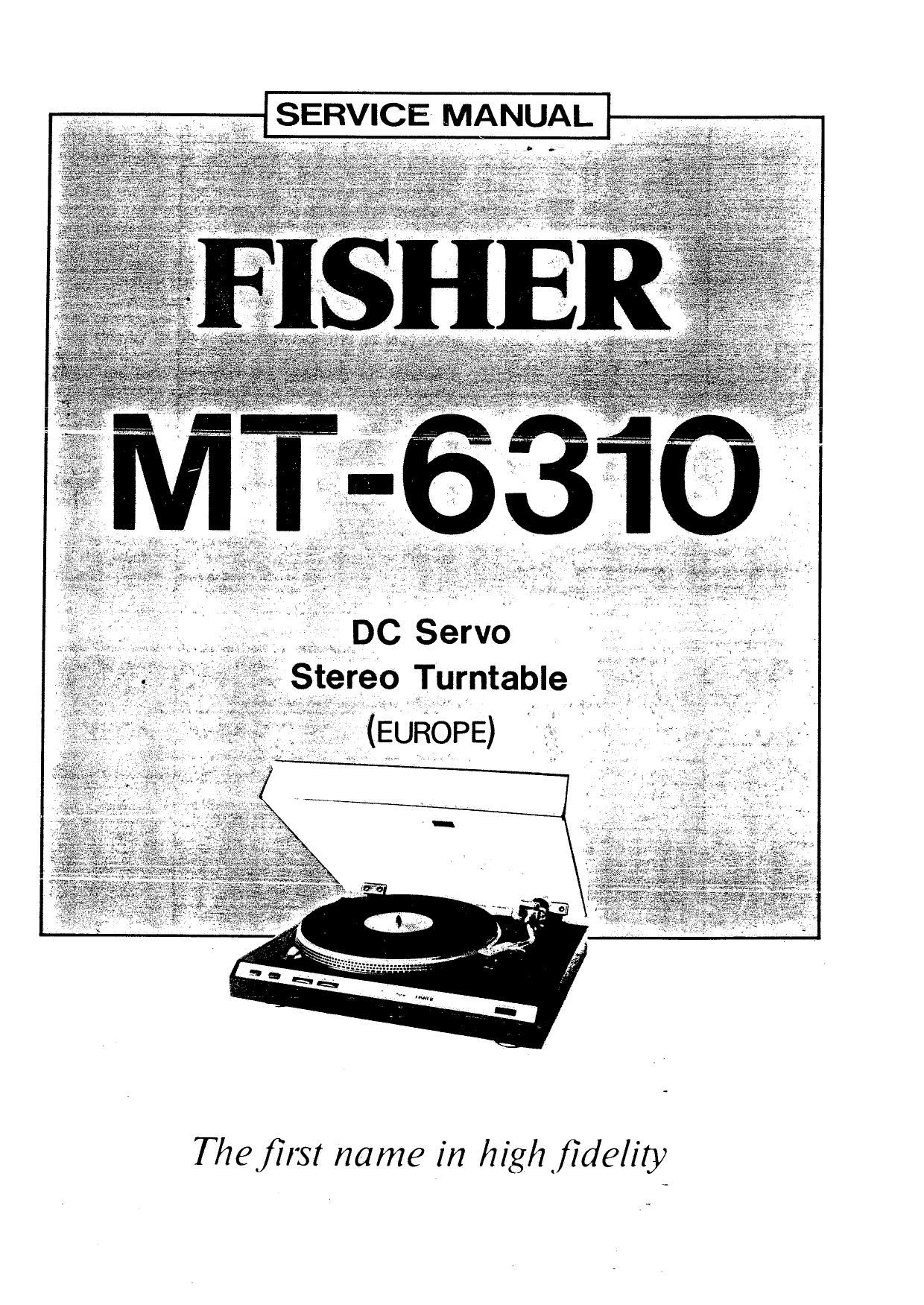

SERVICE» MANUAL
The first name in high fidelity
Page 2
Nominal Specifications for Information only.
TURNTABLE MT-6310 .
Motor " ' Dc Servo 6
Drive Belt
Wow and Flutter (WRMS) 0.04%
Rumble (DIN 455393) -68 dB
Speed Variation :0336
Speed Control Range t3%
Tracking Force Range 0.63.5 grams '
Platter Diameter 314 mm
Platter Weight 1.0 kg
Strobo Light Yes
Record Speed Selector 33/45 rpm
Auto Function
Stop Yes (f
Reject Yes
Manual Function
Start Yes
Stop Yes
Tone Arm Data
Resonance <10 Hz
Balance Adjustment Counter-Weight
Effective Length 222 mm é
Shape S-Form
Bearing~TyDe
_, Horizontal Thrust
Friction Sensitivity 0.2 gram
Vertical Pivot
Friction Sensitivity 0.25 gram e . " A-,
Maxi Tracking Error 22.0 V
Anti Skate Control Adjustable
Cueing Viscous Damped
Overhang Indicator Yes
GENERAL .
Power Requirements AC: 110/220V
56/60 HZ
Dimensions (W x D x H) 440x380x138 mm
Weight (approx) 4.6 kg » V
[immu- run" prudum m tubjcrl In continuous Imprbvtmenl. Fit-her reserves the right to maul/1v. mm, or any any new. or specifications without not. and without incurring an)
animation. Film? rewn'c: me ngm m mutu- changes and impmvtmem: upon its products mum: any obligation to "mull such changes upon any arm products previously manufactured
