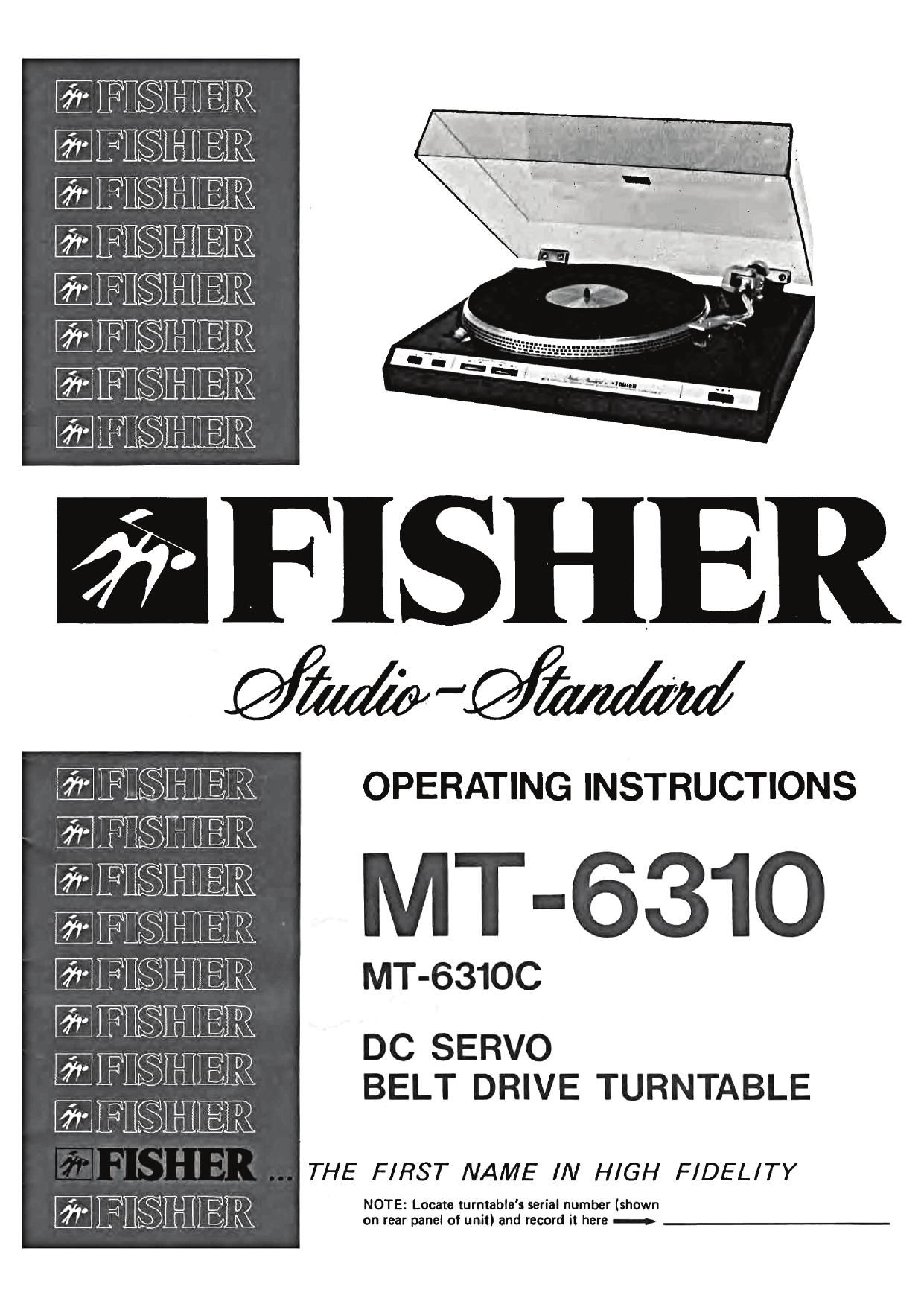

Fisher MT 6310 Owners Manual
This is the 8 pages manual for Fisher MT 6310 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher MT 6310 Owners Manual (Ocr-read)
Page 2
FISHER
MT-6310
SPECIFICATIONS
Motor DC Servo
Drive System 7 7 7 Belt
Wow & Flutter (WRMS) 0.04 96
Rumble (DIN 455393) -68 dB
Speed Variation 10.8 9:
Speed Control Range :3 '36
Tracking Force Flange 0.6 - 3.5 graml
Tracking Force Adiustment Calibrated
Countevweight
Platter Dlameter 1243/8
Platter Weight 2.2 lbs.
Strobe Light '2]
Record Speed Selector 33I45 rpm
Auto Function
Stop Yes
Reject Yes
Automatic
Tone Arm Return
al End of Record Yes
Manual Function
Start Yes
Stop Yes
Tone Arm Data
Resonance <10 Hz
Balance Adjustment Countemeight
Eltective Length 222 mm
Shape s-Form
Bearing Type
Horizontal Thrust
Friction Sensitivity 0.2 gram
Vertical . Pivot
Friction Sensitivity 0.25 gram
Max. Tracking Error 12.0'
Anti-Skate Control Calibrated Adiustable
Cueing Viscous Damped
Overhang Indicator Ye!
Cartridge Supplied Model MT-63IOC
Stereo Magnetic (M644)
GENERAL 120 V AC :10 96
Power Requirements 60/60 Hz
4 Watts
Dimensions inDxH) 17~5/16"x14~15/16"x5-7/16"
Weight (approx) 10.2 lbs.
Specifications are subject to change without notice.
