Fisher MT 6225 Service Manual
This is the 18 pages manual for Fisher MT 6225 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher MT 6225 Service Manual (Ocr-read)

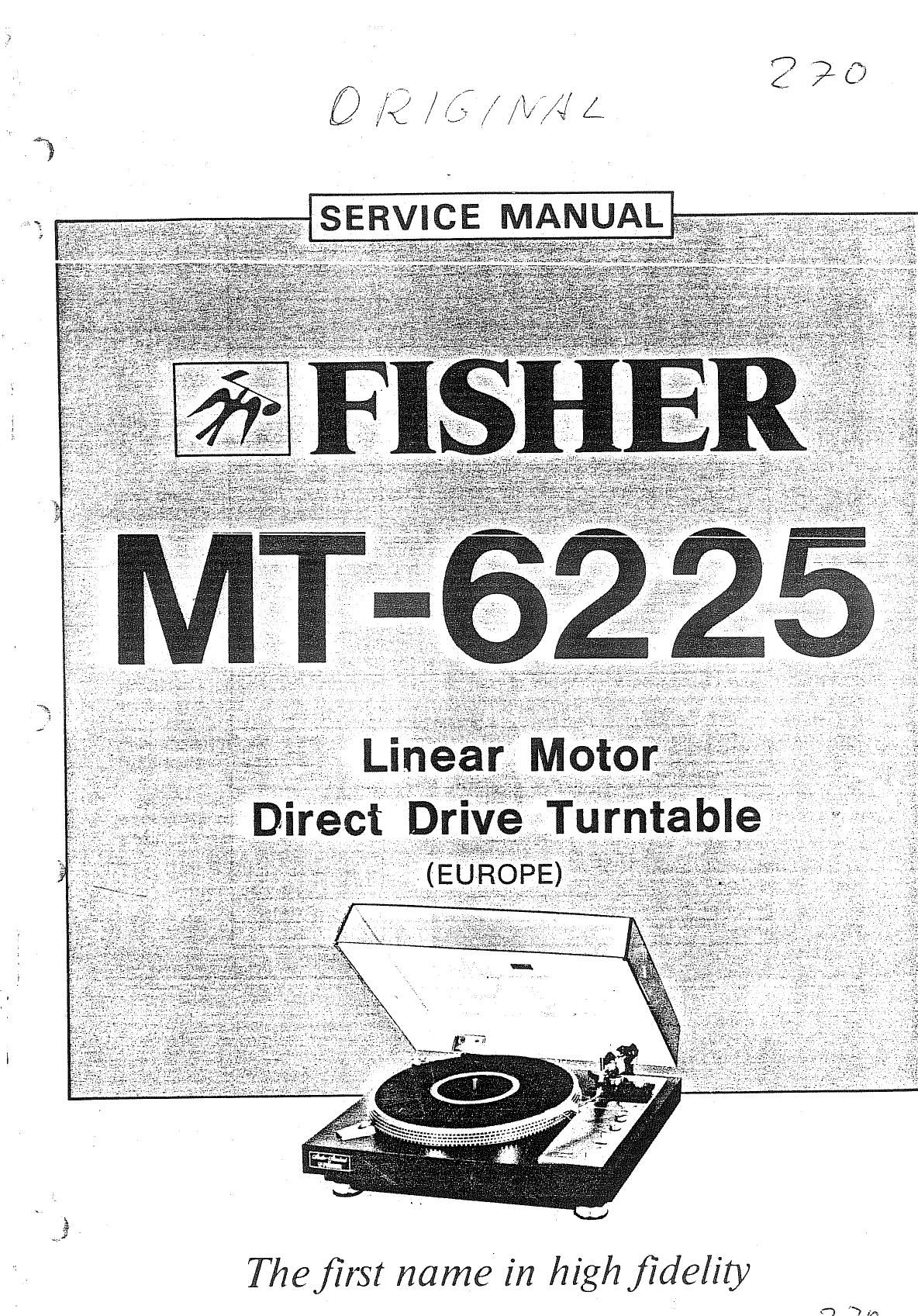

Page 1
The first name in high fidelity
(7 W m
Page 2
Nominal Specifications for Information Only
TURNTABLE
Power Requirements
MT6225
Motor Linear Direct
Drive Direct
Wow and Flutter (WHMS) 0.03 96
Rumble -70 dB
Speed Variation i 0.5 96
Speed Control Range :3 %
Tracking Force Range 0.6 - 3.5 grams
Platter Diameter 12-15/16"
Platter Weight 22 lbs.
Strobo Light Yes
Record Speed Selector 33/45 rpm
Auto Function
Stop Yes
Reject Yes
Manual Function
Start Yes
Stop Yes
Tone Arm Data
Resonance <10 Hz
Balance Adjustment Cou met-Weight
Effective Length 222 mm
Shape S-Form
Bearing-Type
Horizontal Thrust
Friction Sensitivitv 0.15 gram
Vertical Pivot
Friction Sensitivity 0.2 gram
Max. Tracking Error 115'
Anti Skate Control Adjustable
Cueing Viscous Damped
GENERAL
110/220VAC 110%
Dimensions
17-3/4"x6"x14-1/ "
Weight
1717 lbs.
, Hmul «mm and when: Incurrmg any
Heron" rum mdln'l: m mum 10 Continuous lmpruulmunl. nmr rawua m mam lu mom/y. change, or all" any design or spenficnuom w:
obligation ring; 115me Mm mam to mull: mm." and mlpmuenumls upon in products wllhaul any obligation in msmll such changes upon My aim products promously manu/armml
