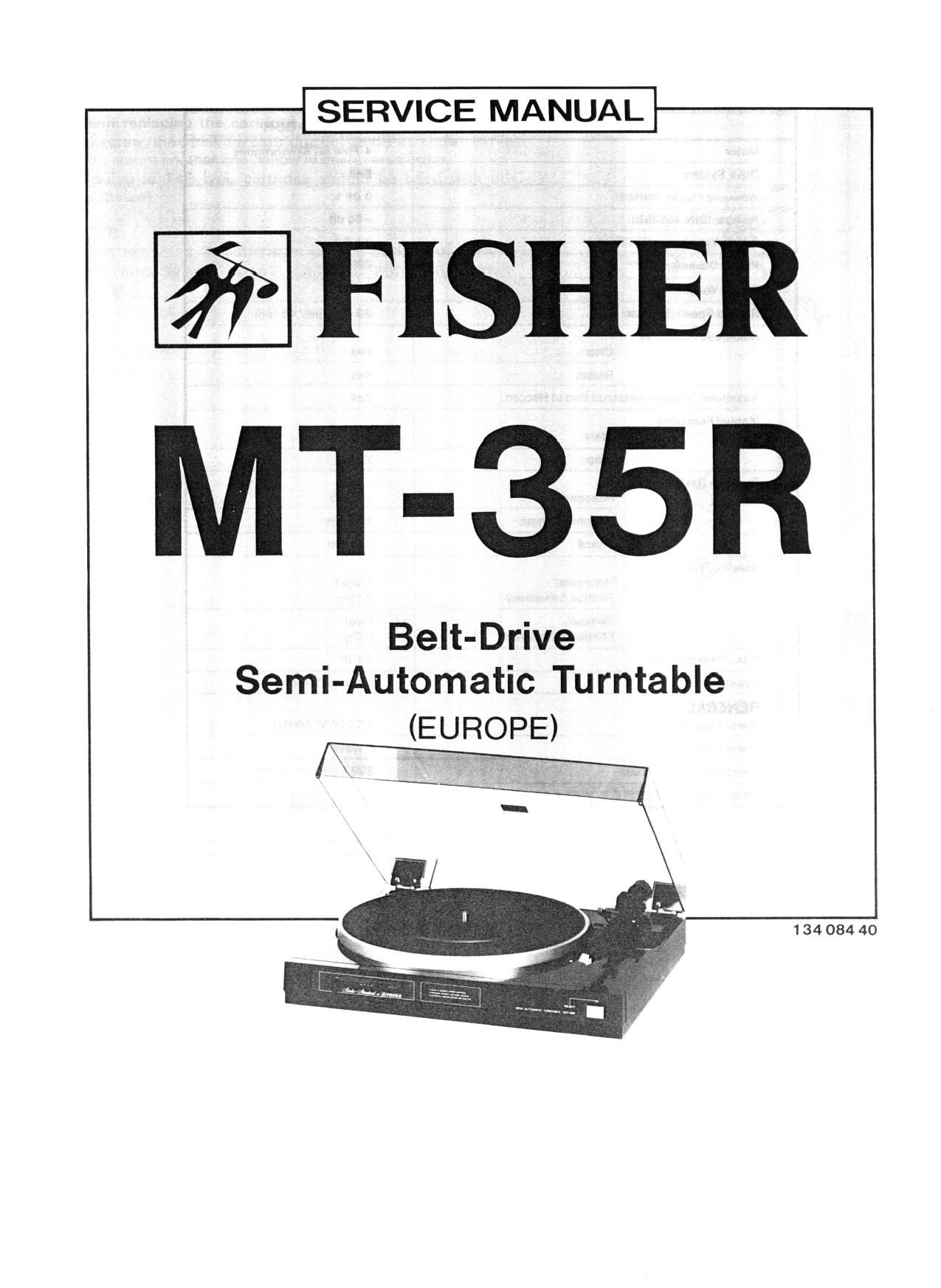

Fisher MT 35 R Service Manual
This is the 8 pages manual for Fisher MT 35 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher MT 35 R Service Manual (Ocr-read)
Page 2
SPECIFICATIONS
TURNTABLE MT-35FI
Motor 47Po|e AC Synchronous
Drive System fl 4 7 Belt
Wow and Flutter (WFiMS) 008 /n
Rumble (DIN 455393) 755 (13
Speed Variation 11.5 We"?
Platter Diameter 300mm
Platter Weight - 7 r 0 6kg
Record Speed Selector
33»1/3rpm/45 rpm
Automatic Functions
Stop Yes
Reject Yes
Automatic Tonearm Fieturn atEnd otRecord Yes
Manual Functions
Start Yes
Stop Yes
Tonearm Data
Resonance <10 Hz
Efiective Length 222 mm
Shape Straight
Bearing Type
Horizontal Thrust
Friction Sensitivity 0.15 9
Vertical Pivot
Friction Sensitivity 0.2 9
Max. Tracking Error :16"
Cueing
Viscous Damped
GENEFIIIL
Power Requirements
AC 220 V (50 Hz)
Power Consumption
8 Watts
DimenSIons (W x H x D)
398x342x112mm
Weight (approx)
33 kg
Because iIS products are subject to continuous improvement Fisher Corporation reserves the right to modlly
product designs and speciiications Without notlce and Without incurring any obligation
