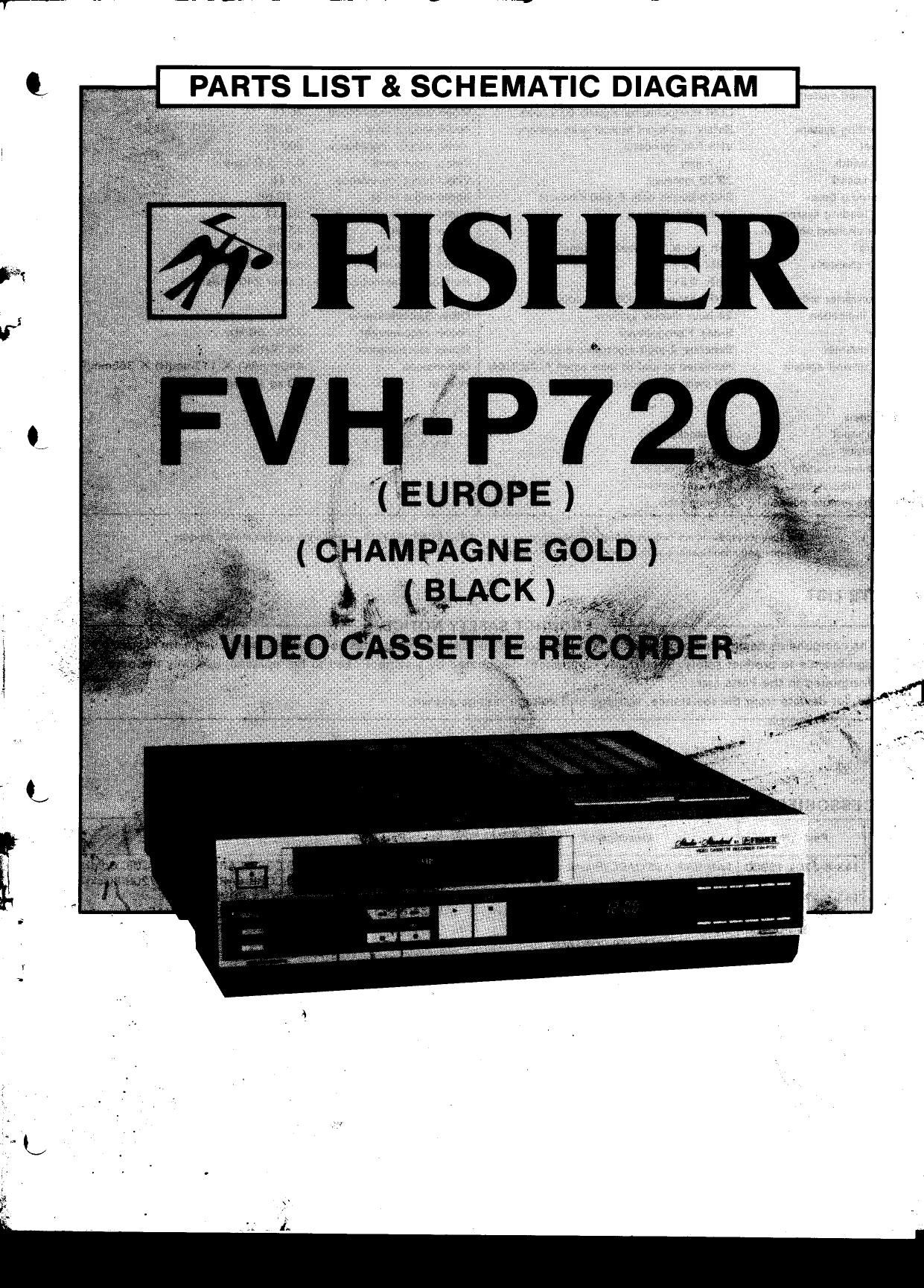

Fisher FVHP 720 Service Manual

Page 2

SPECIFICATIONS

General Specifications
Television system

Recording system
Format

Tape width

Tape speed

Recording time

Tape loading system
Tuner channel selection
system

Tuner channels

RF converter output
Time indication
Timer

Tape counter

Auto rewind system

Terminals

Aerial input

RF output

Video input/output
Audio input/output
Camera remote pause

PAL standard colour (system B e G) Er
CCIR monochrome signals 625 lines
Rotary two-head helical scan system
VHS PAL standard

127 mm

23.39 rum/sec.

240 minutes with E-24O cassette
Automatic loading

Soft touch, 12 preset channels

VHF: #2-#12

UHF; #21-#69

UHF channel 36 (30-39 adjustable]
24-hour display system

9-day 1 programme

Separate 4-digit electronic display
Activated at end of tape when FUNCTION
ON switch is pressed

DIN (socket)
DIN (plug)
BNC connector
RCA connector
2.5 mm jack

Electrical Specifications
Video output level
Video output impedance
Audio output level
Audio output impedance
Video input level

Video input impedance
Audio input level

Audio input impedance
Video S/N ratio

Audio S/N ratio

Audio bandwidth
Horizontal Resolution

Other Specifications
Power requirement
Power consumption
Dimensions

Weight

1 Vp-n

75 Q

-6 dB

600 Q
0.5-2.0 Vp-p
75 Q

-20 dB

50 k9

43 dB

42 dB

50 Hz-IO KHz
Colour 240 lines

ZZOVI 50 H2

36 Watts

440mm(W) X 117mm(H) X 355mmlD)
10 kg (Approximate)

Because its products are subject to continuous improvement, FISHER CORPORATION reserves the right to modify product
designs and specifications without notice and without incurring any obligation.

PARTS LIST

PRODUCT SAFETY NOTICE

The components designated by a symbol( A l in this schematic diagram designates components whose value are of special
significance to product safety. Should any component designated by a symbol need to be replaced, use only the part

designated in the Parts List.

00 not deviate from the resistance, wattage and voltage ratings shown.

ACCESSORIES

PACKING MATERIALS
Fm: Part No Description my, Pit . No Description

143-6-2704-19900

143-6-2704-22600

143-6-2714-00700
44924-00470

4-1 924-00540

4-2394-00030
143-6-2704-20000

4-2414-00040
143-6-2714-00200
143-6-4114-14200
143-6-4124-06100
143-6-4514-00900
143-2-1954-03105
143-2-1954-03407
143-2-1954-03605

FAN BAG ASSY(ACC)(Plastic Bag)
(C.Goldl

FAN BAG ASSY(ACC)(Plastic Bag)
(Black)

ENVELOPE-HAO

WIRELESS REMOTE CONTROL
(C.Go|d)

WIRELESS REMOTE CONTROL
(Black)

CONNECTOR CABLE

FAN BAG ASSY(P|astic Bag)
CASSETTE TAPE

ENVELOPE

INSTRUCTION MANUAL
INSTRUCTION CARD
WARRANTY CARD FSR

LABEL TIMER-F

IND SHEET TlM-HAC-B3

LABEL PRESET-HAB-F

143-6-1424-00707
143-6442400719
143-6-2614-00300
143-6-3114-00900
143-6-3114-01000

IND.CORR CARTON-FEUP720(C.Go|d)
IND.CORR CARTON-FEUP7ZOE(BIack)
IND.POLY COVER-HAA

TOP INNER CUSHION-HAG
BOTJNNER CUSHION-HAC

NOTE: Parts order must contain Model Number, Part Number and Description.

_1_

Page 6

CABIN ET PARTS (3)

In: Part No. Description a: Parr No. Descrription
1 143-2-3504-05600 Shield, Plate-HAC-B 11 103-3-1903-00811 Screw, Brazier Hd Tapping +M3X8
2 103-3-1903-01011 Screw. Brazier Hd Tapping +M3X10 12 143-2-5854-01600 Snap, Band KSG130
3 143-2-6904-02000 Ground, Plate Top-HAC 13 0-4014-02290 Luminance PC Assy
4 103-3-1703-01211 Screw, Brazier Hd Tapping +M3X12 14 143-2-7404~00200 P.C.B. Hinge»A
5 103-3-1804-01211 Screw, Tras Hd Tapping +M4><12 15 0-4014-02121 Syscan Servo PC Assy
6 143-2~5854-00300 Wire, Clamp 16 143-2-3304-02101 Base, PB Mounting-HAG
7 143-2-3404-09000 Brkt, Top Cover-HAC 17 103-3-1903-01219 Screw, Brazier Hd Tapping +M3><12
8 143-0-1304-00407 Cabinet Bottom Assy-HAC-F 18 0-4014-02182 Tracking VR PC Assy
9 143-2-5854-00400 Wire. Clamp 19 143-2-1704-08500 Knob, Tracking-HAC
10 04014-02000 Mute PC Assy 20 143-2-6904-02100 Ground, Spring-HAG

NOTE: Parts order must contain Model Number, Part Number and Description.
