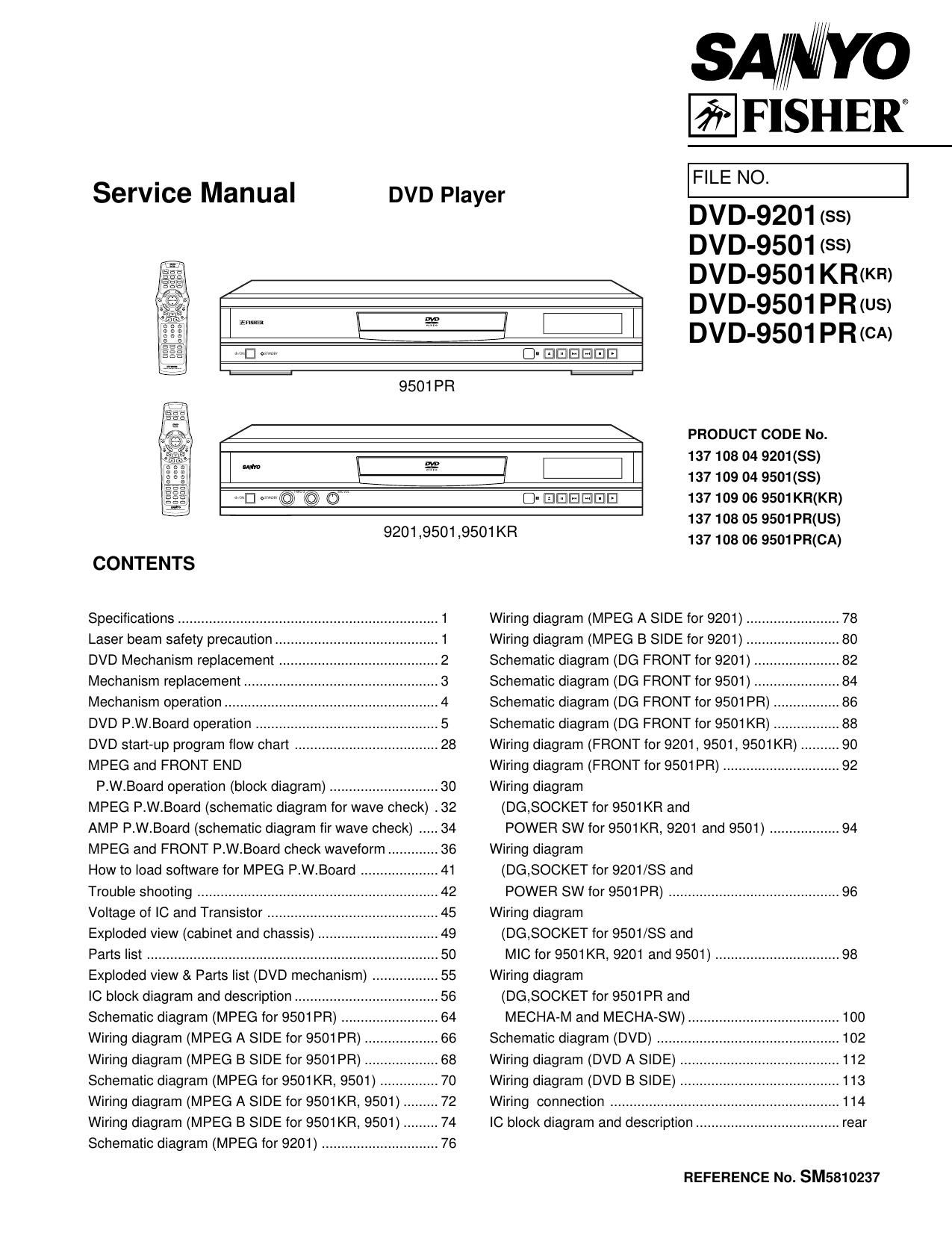

Fisher DVD 9501 Service Manual
This is the 26 pages manual for Fisher DVD 9501 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher DVD 9501 Service Manual (Ocr-read)
Page 1
- 1 - Playback system ..................... DVD-Video , Video CD , CD Playback standard .................. NTSC or PAL Laser ....................................... Semiconductor laser,wavelength 650/790nm Laser output (Continous wave max.) : 1 mW(DVD) , 0.5 mW(CD) Frequency range (digital audio) ................................................ 4 Hz to 22 kHz Signal to noise ratio ................ More than 105 dB Harmonic distortion ................. 0.003 % Wow and flutter ....................... Below measurable level Output: DIGITAL OUTPUT : For optical cable COMPONENT VIDEO OUT Y ............................................. 1.0 Vp-p (75 ohm) C B , C R.................................... 0.7 Vp-p (75 ohm) SPECIFICATIONS S-VIDEO OUT Y ............................................. 1.0 Vp-p (75 ohm) C ............................................. 0.286 Vp-p (75 ohm) (NTSC) 0.3 Vp-p (75 ohm) (PAL) VIDEO OUT ................................. 1.0 Vp-p (75 ohm) AUDIO OUT ................................. L, R : 2.0 V rms 5.1CH DISCRETE AUDIO OUT ... FRONT L, R: 2 V rms (9501/SS, 9501KR/KR) SURROUND L, R: 2 V rms CENTER: 2 V rms SUB WOOFER: 2 V rms Power requirements ..................... AC 220 V 60 Hz(KR) 110 - 240 V, 50/60 Hz(SS) 120 V, 60 Hz(US, CA) Power consumption ..................... 14.5 Watts Dimensions (W x H x D) ............... Approx. 435 x 79 x 281 mm Weight .......................................... Approx. 3 Kg Specifications subject to change without notice. - Pickup that emits a laser beam is used on this DVD section. CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. LASER OUTPUT ................ 1/0.5 mW Max. (CW) WAVE LENGTH ................. 650/790 nm LASER BEAM SAFETY PRECAUTION DIGITAL OUTOPT. RL VIDEO OUT MIXED 2CH AUDIO OUT S-VIDEO OUT TV SYSTEM PAL NTSC VIDEO OUT SELECTSCOMPONENT LL FRONTSURROUNDCENTER RR SUB WOOFER 5.1CH DISCRETE AUDIO OUT COMPONENT VIDEO OUTYCBCR CAUTION – INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. ADVARSEL – USYNLIG LASER STRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION, UNDGÅ UDS ÆTTELSE FOR STRÅLING. VARNING – OSYNLIG LASER STRÅLNING NÄR DENNA DEL ÄR ÖPPNAD\ OCH SPÄRR ÄR URKOPPLAD. STRÅLEN ÄR FARLIG. VORSICHT – UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT IST. NICHT, DEM STRAHL AUSSETZEN. VARO – AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEES\ EEN.
Page 2
- 2 - DVD MECHANISM REPLACEMENT 1.Cautionary instructions in handling the assy (Safety instructions) Optical pickup The laser beam used in the pickup is classified as "class 2". Exposing your eyes or skin to the beam is harmful. Take care not to do so. (Caution against static electricity and leakage voltage) Ground securely the work tables, tools, fixtures, soldering irons (including those made of ceramic) and measuring instruments used in the production lines and inspection departments that handle loaders. The workers shall also be grounded. (Cautionary instructions in handling) Do not touch the object lens when handling a loader, or the lens will be stained, resulting in inadequate playability. There is no power supply protection circuit provided for this product or adjustment/inspection device. Short-circuiting may lead to fire or damage. Take care so as to protect from exposure to water, the entry of metallic pieces or dew condensation. In particular, a strong magnet adjacent to the pickup will not only get inoperative but can damage the pickup if a small metallic piece, such as a screw or swarm, enters. The loader edge can cause injury if inadvertently handled. Do not touch a rotating disk, or injury may result. This product is a precision device. Handle carefully. A shock or dropping will cause misalignment or destruction. If it should occur, refer to clause 2. This product is so designed as to endure an initial shock equivalent to a drop from a height of approx. 90 cm under the packed condition. After the initial shock, the resistivity will still remain at a level of\ 50 to 60 G, but the mechanical robustness will weaken. Do not place in a dusty location. The entry and deposition of dirt into or on the pickup lens or moving section will cause malfunction or degradation.(Connectors) Do not connect or disconnect while power is on. Connecting or disconnecting signal wires or the main power cord when the power is on may destruct the unit or fixture. When connecting, push all the way in securely. An insufficient insertion may cause a bad contact, leading to an erroneous operation. Do not connect or disconnect roughly by an excessively strong force, or a broken wire or bad contact may result. Semiconductors are connected. Do not touch connector terminals directly. If the worker is grounded, there is nothing to worry about static electricity, but the rust on the connector terminal surface caused by the touch may result in bad contact. (Power source) The power source need be good in quality (free from instantaneous interruptions or noises). A low quality power source may well cause malfunction. (Storage) Do not place or store in a dusty place or a place where dew condensation is possible. The entry and deposition of dirt or dust into or on the pickup lens or moving section will cause malfunction or degradation. Also, dew condensation causes rust;the rust penetrate into the precision part of a pickup, causing malfunction, or degrading the optical quality of the internal lens and reflector, which also leads to malfunction.
Page 14
- 19 - DVD P.W.BOARD OPERATION(WIRING DIAGRAM FOR SIGNAL CHECK) B. B side (This is a basic wiring diagram and signal check.)
Page 20
- 25 - DVD P.W.BOARD OPERATION(SIGNAL) c. In the case of CD Disc Spindle kick SPD FG 6 FG = 1 revolution Tm > 300ms B. Disc diameter identification SPDO FG 6 FG = 1 revolution Tm > 155 ms SPDO FG 6 FG = 1 revolution Tm < 155 ms a. In the case of 12cm Disc b. In the case of 8cm Disc c. In the case of NO Disc
