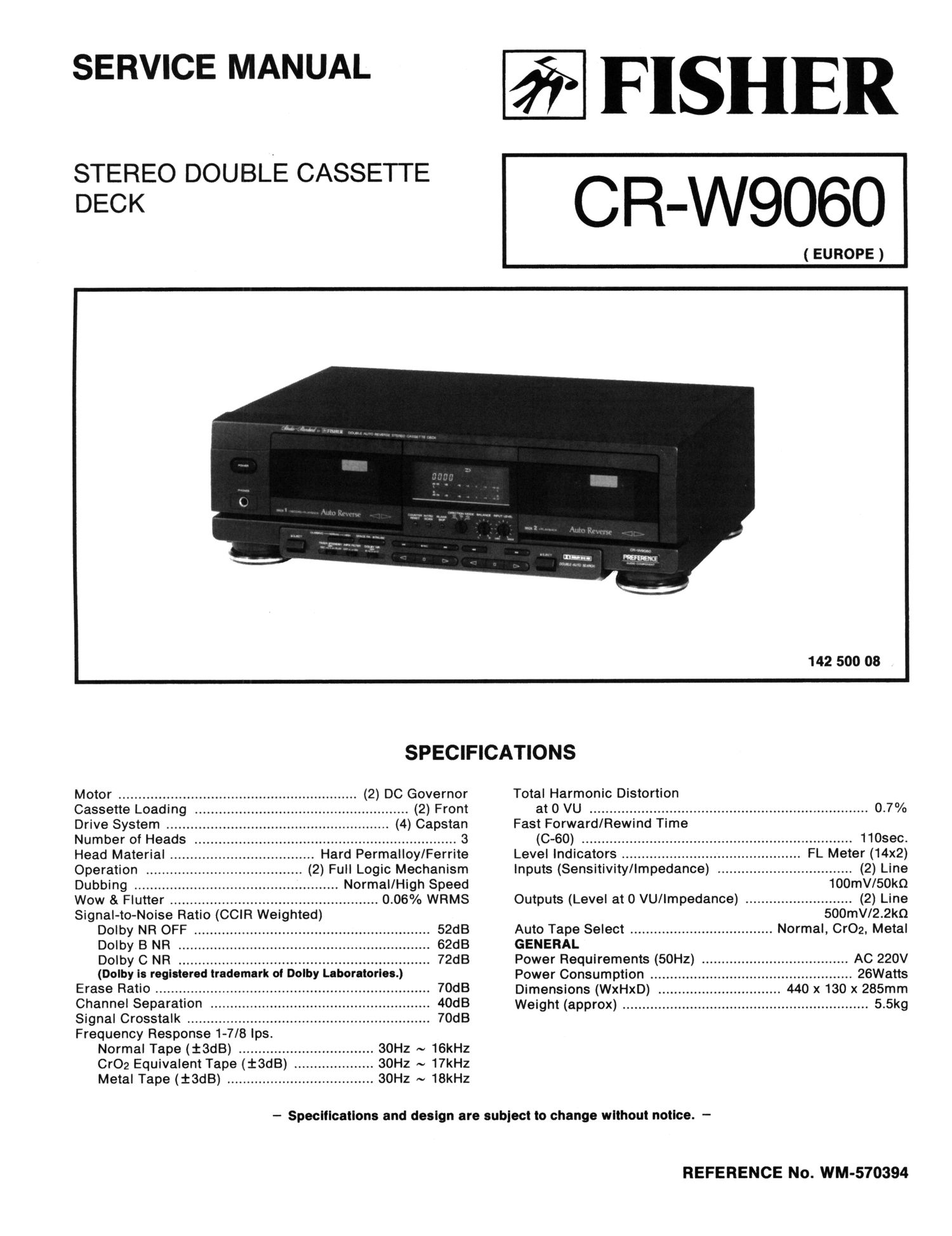

Page 1
SERVICE MANUAL
STEREO DOUBLE CASSETTE
DECK
I FISHER
R-WQHG
( EUROPE )
142 500 08
SPECIFICATIONS
Motor ............................................................ (2) DC Governor Total Harmonic Distortion
Cassette Loading ...................................................... (2) Front at O VU ...................................................................... 0.7%
Drive System ........................................................ (4) Capstan Fast Forward/Rewind Time
Number of Heads .................................................................. 3 (C-60) .................................................................... liosec.
Head Material .................................... Hard Permalloy/Ferrite Level Indicators ............................................. FL Meter (14x2)
Operation ....................................... (2) Full Logic Mechanism Inputs (Sensitivity/Impedance) .................................. (2) Line
Dubbing ................................................... Normal/High Speed 100mV/50kQ
Wow & Flutter .................................................... 0.06% WRMS Outputs (Level at 0 VU/lmpedance) ........................... (2) Line
Signal-to-Noise Ratio (CCIR Weighted) 500mV/2.2kn
Dolby NR OFF ........................................................... 52dB Auto Tape Select .................................... Normal, Cr02, Metal
Dolby B NR ............................................................... 62dB GENERAL
Dolby C NR ............................................................... 72dB Power Requirements (50Hz) ..................................... AC 220V
(Dolby is registered trademark of Dolby LaberaterleeJ Power Consumption ................................................... 26Watts
Erase Ratio ..................................................................... 70dB Dimensions (WxHxD) ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 440 x 130 x 285mm
Channel Separation ....................................................... 40dB Weight (approx) ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 5.5kg
Signal Crosstalk ............................................................. 70dB
Frequency Response 1-7/8 Ips.
Normal Tape (:tSdB) .................................. 30Hz ~ 16kHz
Cr02 Equivalent Tape (iSdB) .................... 30Hz ~ 17kHz
Metal Tape (i3dB) ..................................... 30Hz ~ 18kHz
- Specifications and design are sublect to change without notice. -
REFERENCE No. WM-570394
