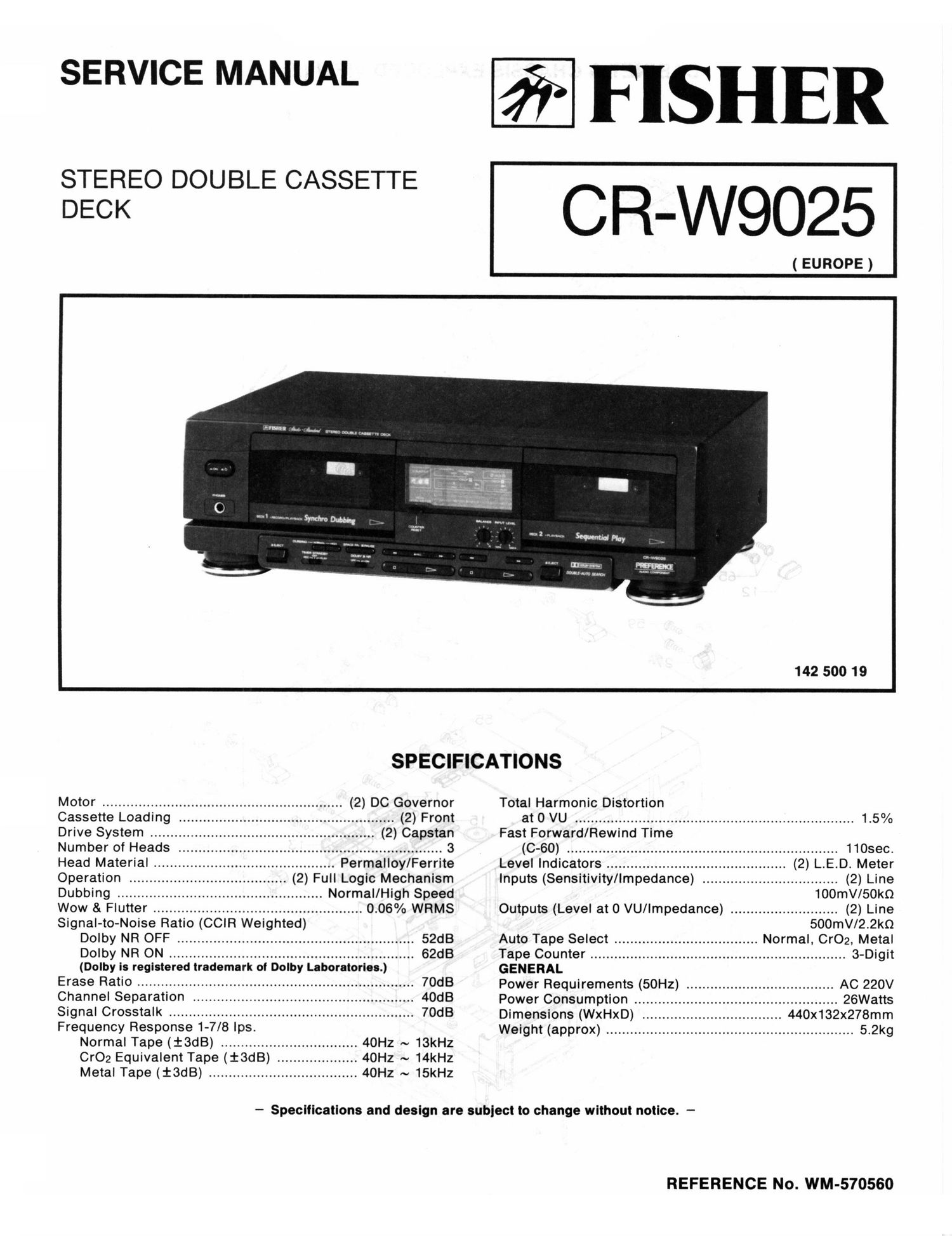

Page 1
SERVICE MANUAL
STEREO DOUBLE CASSETTE
DECK
I FISHER
CR-W9025
( EUROPE )
142 500 19
SPECIFICATIONS
Motor ............................................................ (2) DC Governor Total Harmonic Distortion
Cassette Loading ...................................................... (2) Front at O VU ...................................................................... 1.5%
Drive System ........................................................ (2) Capstan Fast Forward/Rewind Time
Number of Heads .................................................................. 3 (C-60) .................................................................... 110sec.
Head Material ............................................. Permalloy/Ferrite Level Indicators ............................................. (2) LED. Meter
Operation ....................................... (2) Full Logic Mechanism Inputs (Sensitivity/impedance) .................................. (2) Line
Dubbing ................................................... Normal/High Speed 100mV/50ko
Wow & Flutter .................................................... 0.06% WRMS Outputs (Level at 0 VU/lmpedance) ........................... (2) Line
Signal-to-Noise Ratio (CCIR Weighted) 500mV/2.2ko
Dolby NR OFF ........................................................... 52dB Auto Tape Select .................................... Normal, Cr02, Metal
Dolby NR ON ............................................................. 62dB Tape Counter ................................................................ 3-Digit
(Dolby is registered trademark of Dolby Laboratories.) GENERAL
Erase Ratio ..................................................................... 70dB Power Requirements (50Hz) ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, AC 220V
Channel Separation ....................................................... 40dB Power Consumption ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 26Watts
Signal Crosstalk ............................................................. 70dB Dimensions (WxHxD) ___________________________________ 440x132x278mm
Frequency Response 1-7/8 '05- Weight (approx) .............................................................. 5.2kg
Normal Tape (iSdB) .................................. 40Hz ~ 13kHz
Cr02 Equivalent Tape (:t3dB) .................... 40Hz ~ 14kHz
Metal Tape (iSdB) ..................................... 40Hz ~ 15kHz
- Specifications and design are subject to change without notice. -
REFERENCE No. WM-570560
