Fisher CR W560 Schematic

Extracted text from Fisher CR W560 Schematic (Ocr-read)

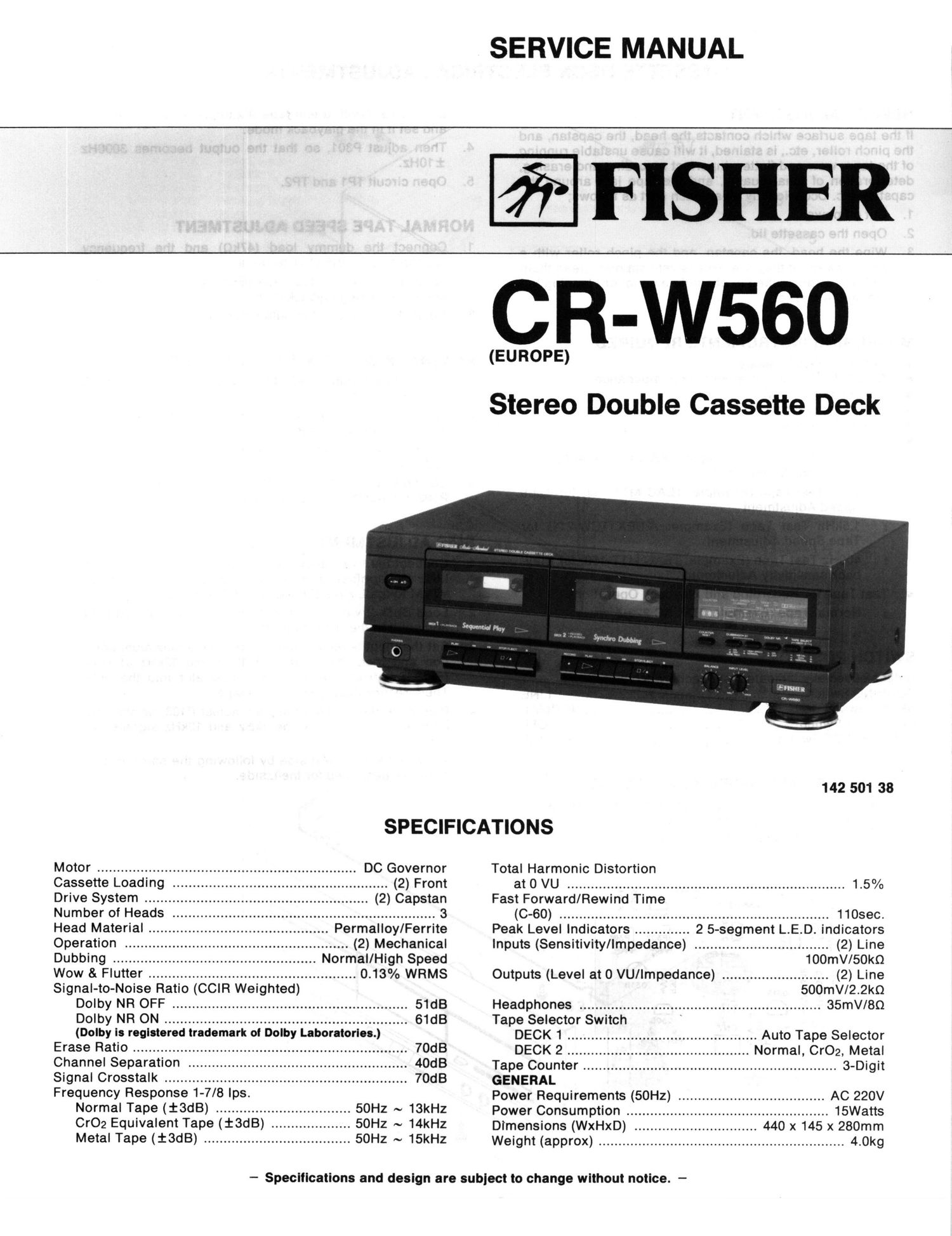

Page 1

SERVICE MANUAL

I
-
(EUROPE)
Stereo Double Cassette Deck
142 501 38
SPECIFICATIONS

Motor ................................................................. DC Governor Total Harmonic Distortion
Cassette Loading ...................................................... (2) Front at O VU ...................................................................... 1.5%
Drive System ........................................................ (2) Capstan Fast Forward/Rewind Time
Number of Heads .................................................................. 3 (C-60) .................................................................... 11OSec.
Head Material ............................................. Permalloy/Ferrite Peak Level Indicators .............. 2 5-segment LED. indicators
Operation ........................................................ (2) Mechanical Inputs (Sensitivity/Impedance) .................................. (2) Line
Dubbing ................................................... Normal/High Speed 100mV/50k0
Wow & Flutter .................................................... 0.13% WRMS Outputs (Level at 0 VU/lmpedance) ........................... (2) Line
Signal-to-Noise Ratio (CCIR Weighted) 500mV/2.2kQ

Dolby NR OFF ........................................................... 51dB Headphones ............................................................. 35mV/8Q

Dolby NR ON ............................................................. 61dB Tape Selector Switch

(Dolby is registered trademark of Dolby Laboratories) DECK 1 ................................................ Auto Tape Selector
Erase Ratio ..................................................................... 70dB DECK 2 ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Normal, CfOQ, Metal
Channel Separation ....................................................... 40dB Tape Counter ................................................................ 3-Digit
Signal Crosstalk ............................................................. 70dB GENERAL
Frequency Response 1-7/8 lps. Power Requirements (50Hz) ..................................... AC 220v

Normal Tape (i3dB) ---------------------------------- 50HZ ~ 13KHZ Power Consumption ................................................... 15Watts

Cr02 Equivalent Tape (i3dB) .................... 50Hz ~ 14kHz Dimensions (WxHxD) ............................... 440 x 145 x 280mm

Metal Tape (i3dB) ------------------------------------- 50HZ ~ 15kHZ Weight (approx) .............................................................. 4.0kg

- Specifications and design are subject to change without notice. -
