T

J

J A 1 .LJ. ,LJ

WORLD

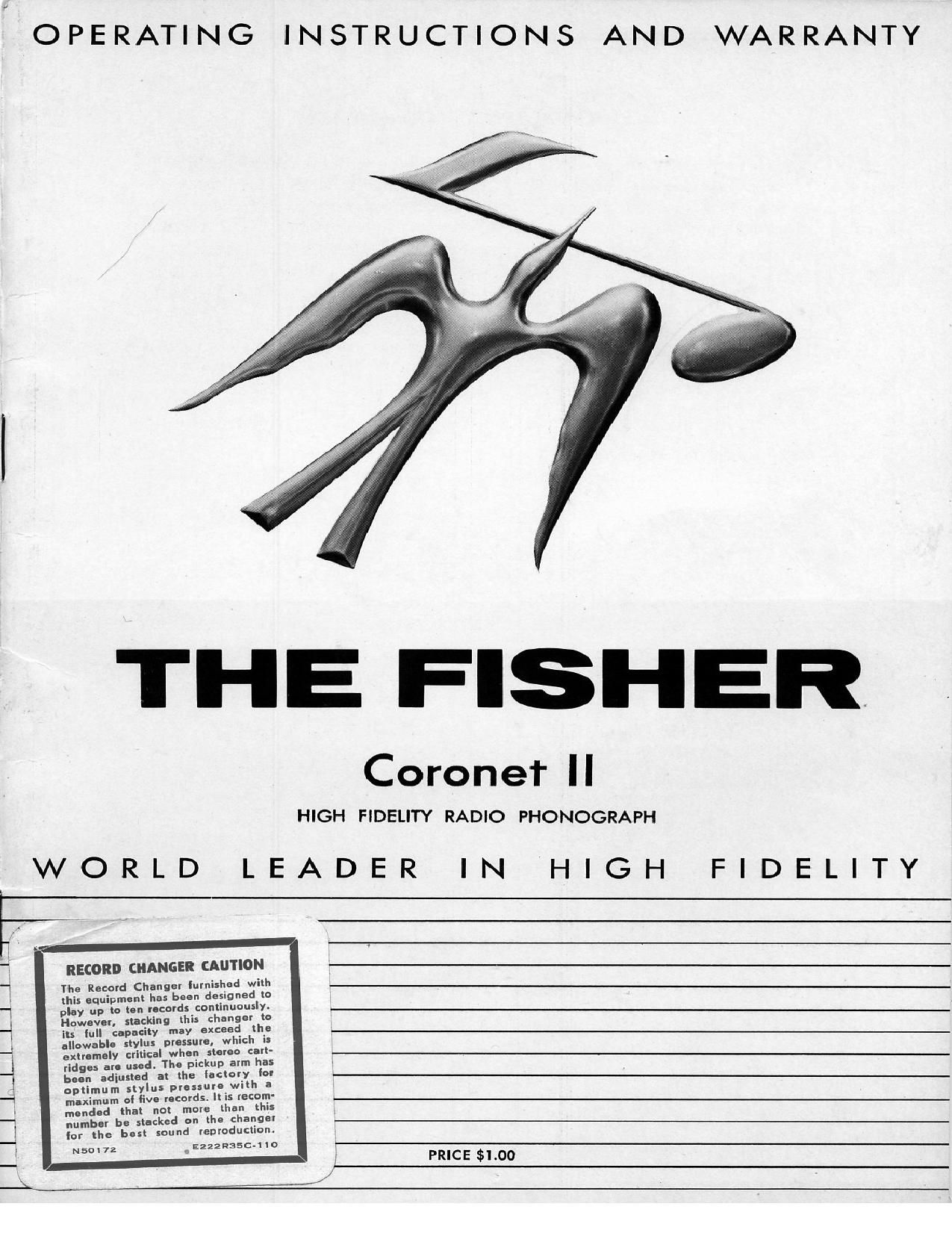

OPERATING

INSTRUCTIONS AND WARRANTY

THE FISHERV

RECORD CHANGER CAUTION

The Record Changer turnishad with
this Iquipmant has been designed to
play up to ten "cords continuously.
However, stacking this changer to
its full capacity may exceed the
aIIowabIe stylus prossura, which is
extrcmely critical whan stareo cart-

ridgas am used. The pickup arm has
been adiusted at the factory for
optimum stylus prassur- with a
maximum oi five racords. It is recom-
mended that not mora than this
number be stacked an the changer
Ior the best sound repruductionr

Nsol7z aazzzmscaro

Coronet II

HIGH FIDELITY RADIO PHONOGRAPH

LEADER

IN HIGH

FIDELITY

PRICE $I.00

Page 2

(A TABLE OF CONTENTS IS PROVIDED ON 'I'HETOLLOWING PAGE)

THE FISHER CORONE'I' II

High Fidelity Radio and Phonogrcph

The Coronet has been designed with but one aim in mind -- to provide a
complete high fidelity sound system for the home that will satisfy the most
critical electronic and aesthetic requirements. Towards this end, the FISHER
RADIO CORPORATION has chosen the finest stereophonic components and com-
bined these with a master-crafted custom console. The result is a musical in-
strument of exceptional quality that will enhance the decor of the most beauti-

fully appointed home.

Two separate, remarkably sensitive tuning sections bring you stereophonic
or monophonic FM and AM broadcasts. Combined with the tuning sections is a

Master Audio Control Center which permits you to adjust every nuance of sound
over the entire audio spectrum. A dual-channel Power Amplifier supplies 45

watts of undistorted music power. The world-fambus Canard Record Changer,
equipped with a magnetic stereo cartridge and a diamond LP stylus, will faithfully
reproduce every type of monophonic LP and stereophonic record available. Lastly,
two multiple-speaker systems are provided to reproduce the full panoramic sweep
of stereophonic sound-from the simplest musical passage to the most complex
orchestral cresendo.

Advanced electronic design, the use of costly, durable materials, and unv
hurried fabrication - the necessary elements in maintaining the level of excel-
lence that is often lost in mass production -- all of these will contribute toward
bringing you years of trouble-free performance and unsurpassed listening pleasure.
These are the qualities which have for over two decades created the world wide
reputation enjoyed by FISHER products.

A NOTE ON STEREOPHONIC SOUND

Stereophonic sound is a giant step forward in the history of high fidelity
music reproduction. This unique dualvchannel system oflers a distinct advantage
over monophonic (single-channel) systems by virtue of two important character-
istics - the dimensions of direction and depth. These live sound qualities are
for the most part missing in monophonic systems because records are made
and reproduced over a single channel. This is analogous to listening to music
with one ear. Stereophonic recording techniques, however, utilize two separate
banks of microphones which are positioned in the left and right sections of the
orchestra. In this arrangement, the microphones ear the music as we do-with

I
