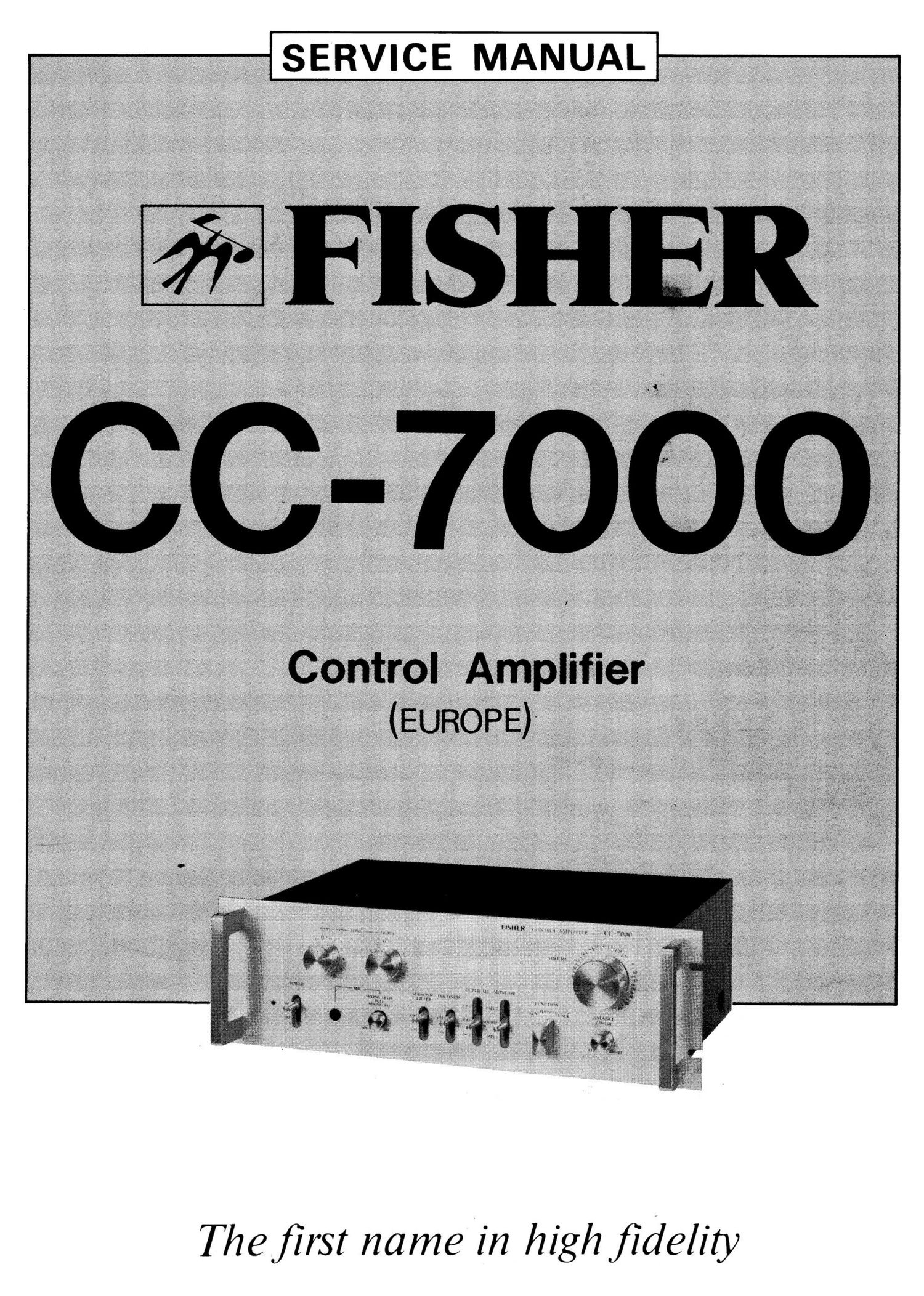

Fisher CC 7000 Service Manual
This is the 10 pages manual for Fisher CC 7000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher CC 7000 Service Manual (Ocr-read)
Page 2
Nominal Specifications For Information Only.
PRE AMPLIFIER SECTION '
Input Sensitivity Phono t ' 2.7 mV/50k Ohm
and Impedance Tuner 7 150 mV/45k ohm
Auxiliary 150 mV/45k ohm
Tape PB (Tape 1 & 2) 150 mV/45k ohm '
Mic (Impedance:600 ohms) 2 mV
Output Level/Impedance Output 1 V/1k ohm
Rec (Tape 1 & 2) 150 mV
Phono Max. Rated Input 180 mV (1 kHz RMS)
RlAA Deviation :05 dB
Frequency Response _ 10 Hz - 30 kHz (-2 dB)
Residual Noise - Less Than 0.1 mV
Signal to Noise Ratio Phono 70 dB (IHF A network) _
Tuner 100 dB (IHF A network)
Auxiliary" 100 dB (IHF A network)
Tone Control - Bass 21:9 dB (100 Hz)
Treble :8 dB (10 kHz)
Subsonic Filter ' 50 Hz (-6 dB/Oct.)
Loudness Control +9 dB(1OO Hz) , +5 dBl10 kHz)
GENERAL
Power Source . AC 1 10 V/220 V, 50 Hz
Power Consumption 8 W
Dimensions (W x H x D) ' 450 x 135 x 265 mm
Weight 4.5 kg (approx)
Because Fisher products are subject to continuous improvement, Fisher reserves the right to modify, change, or alter any design or specifications without notice and without incurring any
obligation-Fisher reserves the right to make changes and improvements upon its products without any obligation to install such changes upon any of its products previously manufactured.
