Fisher CA 9435 Service Manual

Extracted text from Fisher CA 9435 Service Manual (Ocr-read)

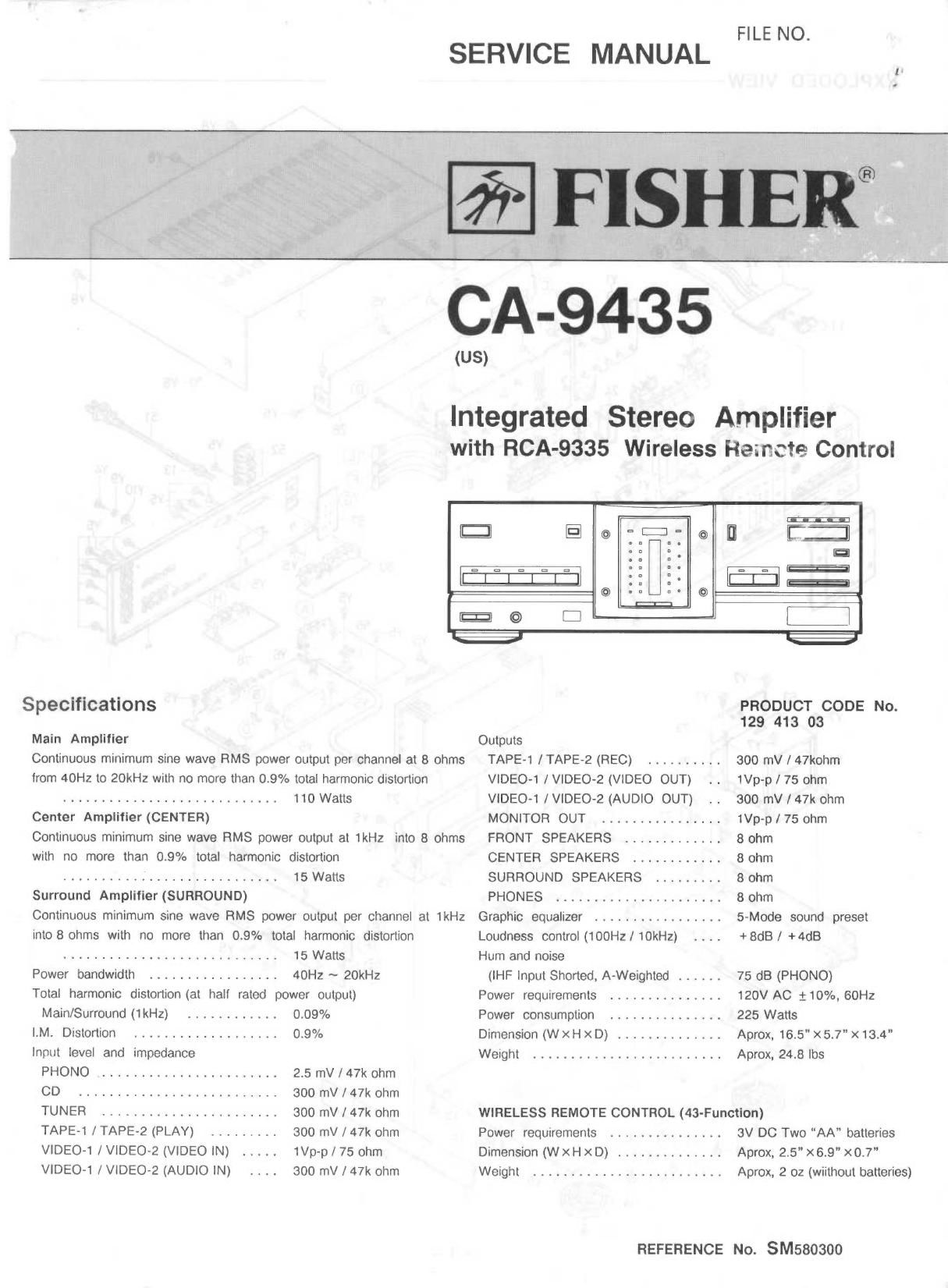

Page 1

FILE NO.

SERVICE MANUAL

I FISHER®

CA-9435

(US)

Integrated Stereo Amplifier
with RCA-9335 Wireless Remote Control

i
I
I

U

F:II

rm

.......9

Specifications

Main Amplifier

Continuous minimum sine wave RMS power output per channel at 8 ohms
lrorn 40Hz to 20kHz With no more than 0.9% total harmonic distortion
............................ 1 10 Watts

Center Amplifier (CENTER)
Continuous minimum sine wave RMS power output at 1kHz into 5 ohms
with no more than 0.9% total harmonic distortion
............................ 15 Watts

Surround Amplifier (SURROUND)
Continuous minimum Sine wave RMS power output per channel at 1kHz
intoB ohms with no more than 0.9% total harmonic distortion

15 Watts

40Hz ~ 20kHz

Total harmonic distortion (at hall rated power output)

Main/Surround (1kHz) 0.09%

IM, Distortion ................... 0.9%

Input level and impedance
PHONO ....................... 25 mV / 47k ohm
CD .......................... 300 mV l47k ohm
TUNER 300 mV / 47k ohm

TAPE»1 lTAPE-Z (PLAY)
VlDEOri xvaoz (VIDEO IN)
VIDEO-t IVIDEOVZ (AUDIO IN)

300 mV / 47k ohm
1Vp-p / 75 Ohm
300 mV / 47k ohm

PRODUCT CODE No.
129 413 03

Outputs
TAPE-1 /TAPE»2 (REC)
VIDEO-1 [VIDEO-2 (VIDEO OUT)
VIDEO»1 IVIDEOQ (AUDIO OUT)
MONITOR OUT

800 mV / 47kohm
1Vpp / 75 ohm
300 mV / 47k ohm
1Vp-p / 75 ohm

FRONT SPEAKERS ............. 8 ohm

CENTER SPEAKERS ............ 8 ohm

SURROUND SPEAKERS ,,,,,,,,, 8 ohm

PHONES ...................... 8 ohm
Graphic equalizer ................. SvMode sound preset
Loudness control (1(3on / tokHz) +8dB / +4dB

Hum and noise
(tHF Input snorted, A-Weighted ......
Power requirements

75 dB (PHONO)

120V AC :10%. 60Hz
225 Watts

Aprox. 165 x5r7"x13.4
Aprox, 243 lbs

Power consumption
Dimension (W X H x D) ..............
Weight

WIRELESS REMOTE CONTROL Mil-Function)

Power requrremenls 3V DC Two AA" batteries
Dimension (WxH XD) .............. Aprox, 2.5 x6.9" XOJ"
Weight Aprox, 2 oz (wiiihout batteries)

REFERENCE No. SM580300
