Fisher CA 9335 Service Manual

Extracted text from Fisher CA 9335 Service Manual (Ocr-read)

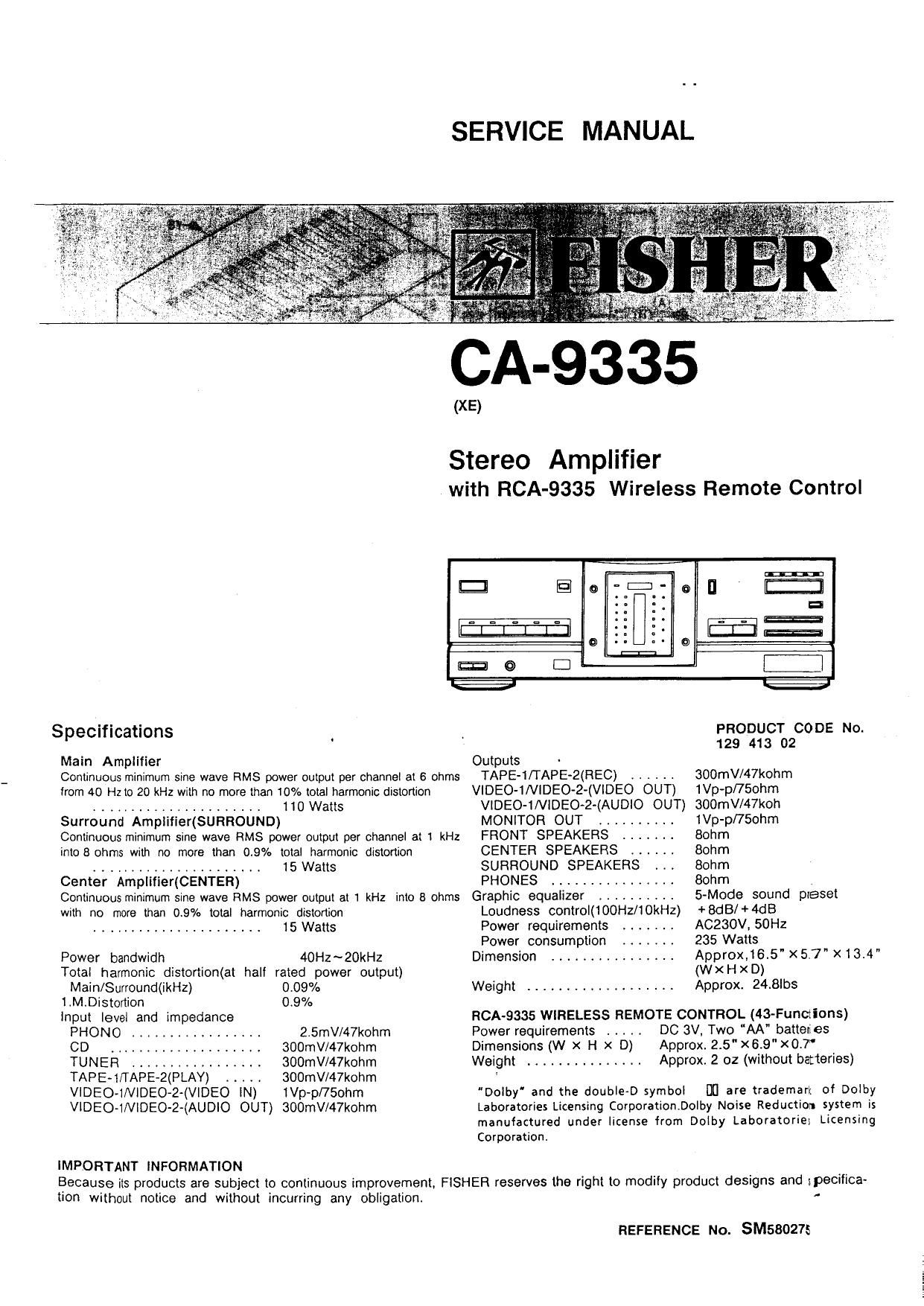

Page 1

SERVICE MANUAL

CA-9335

(XE)

Stereo Amplifier
with RCA-9335 Wireless Remote Control

Specifications .

Main Amplifier

Continuous minimum sine wave HMS power output per channel at 6 ohms

from 40 Hz to 20 kHz with no more than 10% total harmonic distortion

...................... 110 Watts

Surround Amplifier(SUFlROUND)

Continuous minimum Sine wave RMS power output per channel at 1 kHz

into 8 ohms with no more than 0.9% total harmonic distortion

...................... 15 Watts

Center Amplifier(CENTER)

Continuous minimum Sine wave RMS power output at 1 kHz into 8 ohms

with no more than 0.9% total harmonic distortion

...................... 15 Watts

Power bandwidh 40Hz~20kHz

Total harmonic distortion Main/Surround(ikHz) 0.09%

1.M,Distortion 0.9%

Input level and impedance

PHONO 2.5mV/47kohm
CD 300mV/47kohm
TUNER 300mV/47kohm
TAPE 1/TAPE-2(PLAY) ..... 300mV/47kohm
ViDEO-tNlDEO-ZiVIDEO lN) 1Vp-p/750hm

VlDEO-iNlDEO-Z-(AUDIO OUT) 300mV/47k0hm

lMPORTANT lNFORMATION

m
o l] E
n
i=2
-- ,.;.__.
o
1 :
PRODUCT CODE No.
129 413 02
Outputs
TAPE-IITAPE-2(REC) ...... 300mV/47kohrn
VlDEO-1NlDEO-2-(VIDEO OUT) 1Vp-p/750hm

VlDEO-iNlDEO-Z-(AUDIO OUT) SOOmV/47k0h

MONITOR OUT .......... 1Vp-pf750hm

FRONT SPEAKERS ....... 80hm

CENTER SPEAKERS ...... 80hm

SURROUND SPEAKERS 80hm

PHONES ................ 80hm

Graphic equalizer tttttttttt 5-Mode sound preset

Loudness control(100Hz/10kHz) +8dB/+4dB

Power requirements ....... ACZSOV, 50Hz

Power consumption ....... 235 Watts

Dimension ................ Approx,16.5" x57" X13.4"
(WXHXD)

Weight ................... Approx. 24.8lbs

RCA-9335 WIRELESS REMOTE CONTROL (43-Functions)
Power requirements DC 3V, Two AA" batten es
Dimensions (W X H x D) Approx. 2.5" x6.9" x07
Weight ............... Approx. 2 02 (without batteries)

"Dolby and the double Laboratories Licensing CorporationDolby Noise Reduction system is
manufactured under license from Dolby Laboratoriei Licensing
Corporation.

Because its products are subject to continuous improvement FISHER reserves the right to modify product designs and specifica-

tion without notice and without incurring any obligation.

REFERENCE No. SM580275

Page 2

EXPLODED V|EW (CABINET & CHASSIS)
