Fisher CA 9030 Schematic

Extracted text from Fisher CA 9030 Schematic (Ocr-read)

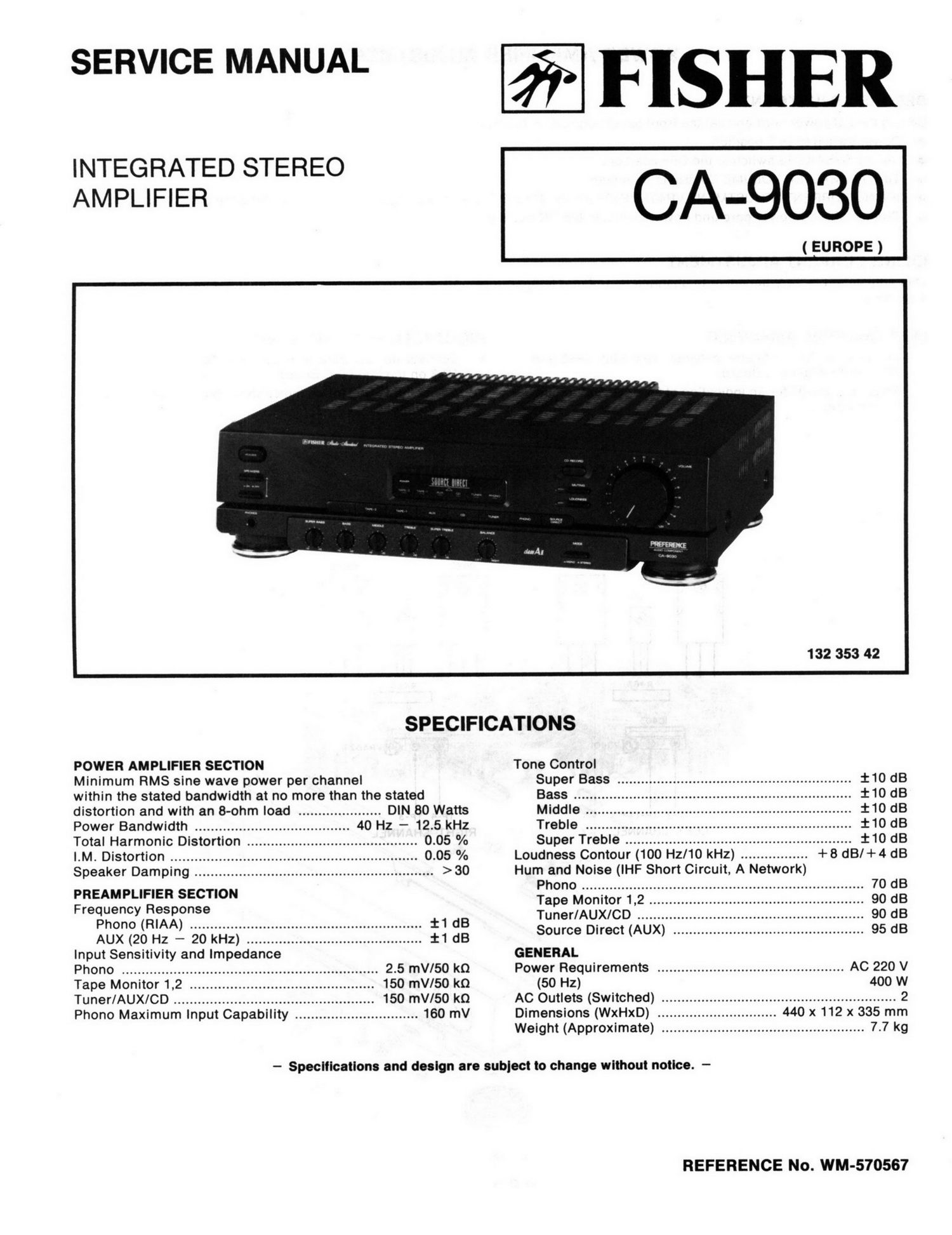

Page 1

SERVICE MANUAL

INTEGRATED STEREO
AMPLIFIER

I FISHER

A-9030

(EUROPE)

132 353 42

SPECIFICATIONS

POWER AMPLIFIER SECTION
Minimum RMS sine wave power per channel
within the stated bandwidth at no more than the stated

distortion and with an 8-ohm load ..................... DIN 80 Watts
Power Bandwidth ....................................... 40 Hz - 12.5 kHz
Total Harmonic Distortion ........................................... 0.05 %
|.M. Distortion .............................................................. 0.05 °/o
Speaker Damping ............................................................ >30

PREAMPLIFIER SECTION
Frequency Response

Phono (RIAA) .......................................................... :I:1 dB
AUX (20 Hz - 20 kHz) ............................................ :I:1 dB
Input Sensitivity and Impedance
Phono ................................................................ 2.5 mV/5O kQ
Tape Monitor 1,2 .............................................. 150 mV/50 k0
Tuner/AUX/CD .................................................. 150 mV/50 kn
Phono Maximum Input Capability ............................... 160 mV

Tone Control
Super Bass ........................................................... i 10 dB
Bass ...................................................................... :I: 10 dB
Middle ................................................................... :t 10 dB
Treble ................................................................... i 10 dB
Super Treble ......................................................... :I: 10 dB
Loudness Contour (100 Hz/10 kHz) ................. + 8 dB/+4 dB
Hum and Noise (IHF Short Circuit, A Network)
Phono ....................................................................... 70 dB
Tape Monitor 1,2 ...................................................... 90 dB
Tuner/AUX/CD ......................................................... 90 dB
Source Direct (AUX) ................................................ 95 dB
GENERAL
Power Requirements ............................................... AC 220 V
(50 Hz) 400 W
AC Outlets (Switched) ........................................................... 2
Dimensions (WxHxD) .............................. 440 x 112 x 335 mm
Weight (Approximate) ................................................... 7.7 kg

-- Specifications and design are subject to change without notice. -

REFERENCE No. WM-570567
