Page 1

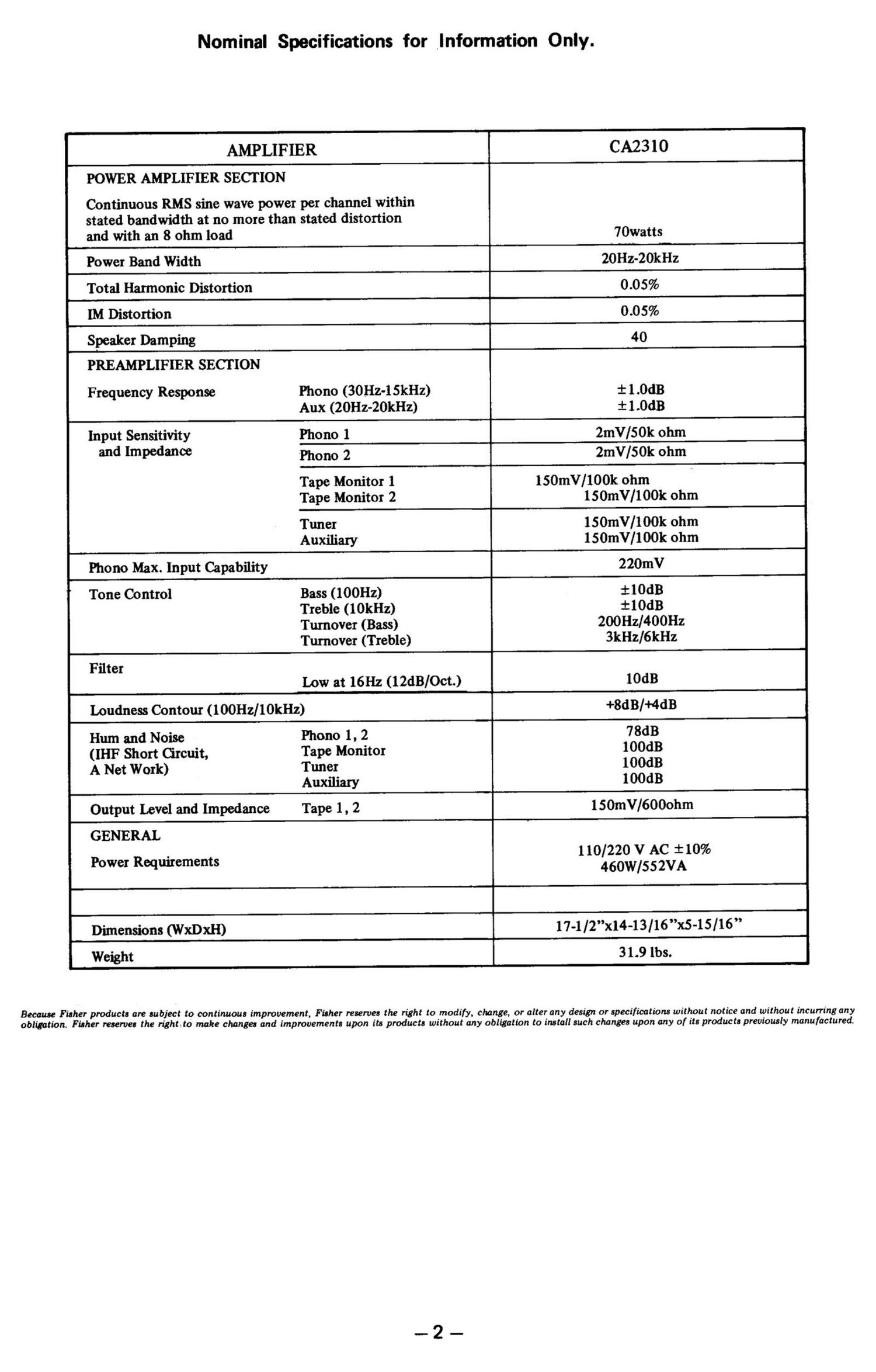

Nominal Specifications for information Only.
AMPLIFIER CA2310
POWER AMPLIFIER SECTION
Continuous RMS sine wave power per channel within
stated bandwidth at no more than stated distortion
and with an 8 ohm load 70watts
Power Band Width 20Hz-20kHz
Total Harmonic Distortion 0.05%
[M Distortion 0.05%
.4
Speaker Damping 40
PREAMPLIFIER SECTION
Frequency Response Phono (301-12-1 5kHz) i- 1.0dB
Aux (20Hz-20kHz) l i 1 .OdB
Input Sensitivity Ihono l 2mV/50k ohm
and Impedance Phono 2 j 2mV/50k ohm
Tape Monitor 1 lSOmV/ 100k ohm
Tape Monitor 2 150mV/ 100k ohm
Tuner lSOmV/ 100]: ohm
Auxiliary 150mV/ 100k ohm
Phono Max. Input Capability 220mV
Tone Control Bass (100Hz) :thdB
Treble (lOkHz) iIOdB
Turnover (Bass) 200Hz/400Hz
Turnover (Treble) 3kHz/6kHz
Filter
Low at 16Hz (lZdB/Oct.) IOdB
Loudness Contour (100Hz/ lOkHz) +8dBl+4dB
Burn and Noise Phono 1, 2 78dB
(IHF Short Circuit, Tape Monitor 100dB
A Net Work) Tuner 100dB
Auxiliary 100dB
Output Level and Impedance Tape 1 , 2 lSOmV/6000hm
GENERAL
. 110/220 V AC i 10%
Power Requirements 4 6 0W / 5 52V A
.i _. 1
r
Dimensions (WxDxH) 17-1 /2x14-13/l6x5-15/16
_________-+.- _ _
Weight 3 1.9 lbs.
Because Fisher products are subject to continuous improvement, Fisher reserves the right to modify. change, or alter any design or specifications without notice and without incurring any
obligation. Fisher reserves the right, to make changes and improvements upon its products without any obligation to install such changes upon any of its products previously manufactured.
