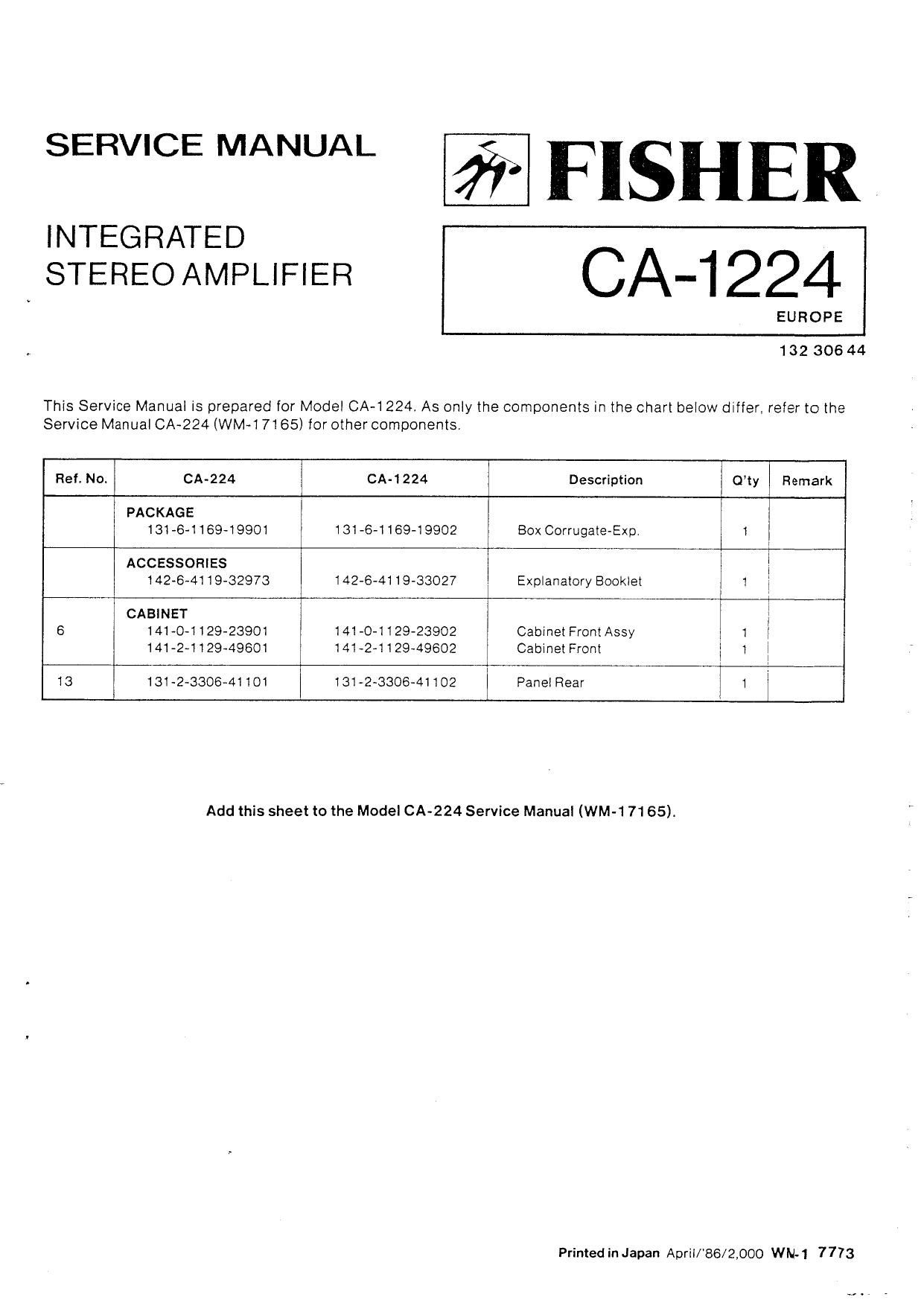

SERVICE MANUAL
FISHER .
CA-1224
EUROPE
INTEGRATED
STEREO AMPLIFIER
132 306 44
This Service Manual is prepared for Model CA-1224. As only the components in the chart below differ. refer to the
Service Manual CA~224 (WM-1 7165) for other components.
Ref. No. (IA-224 CA-1224 Description Oty Remark
PACKAGE 1
131-6-1169-19901 131 -6-1 1694 9902 Box Corrugale-Exp, 1 |
ACCESSORIES l
142-6-4119-32973 142-6-4119-33027 Explanatory Booklel 1 l
CABINET j
6 141-0-1129-23901 141»O-1129-23902 Cabine1FrontAssy 1 l
141-2-1 12949601 141-2-112949602 Cabinei Front 1 l
13 131-2630641101 131-2-3306-41102 Panel Rear 1 "
Add this sheet to the Model CA-224 Service Manual (WM-17165).
Printed in Japan April/86/2,000 WM 7773
