Fisher CA 2221 Service Manual

Extracted text from Fisher CA 2221 Service Manual (Ocr-read)


Page 1

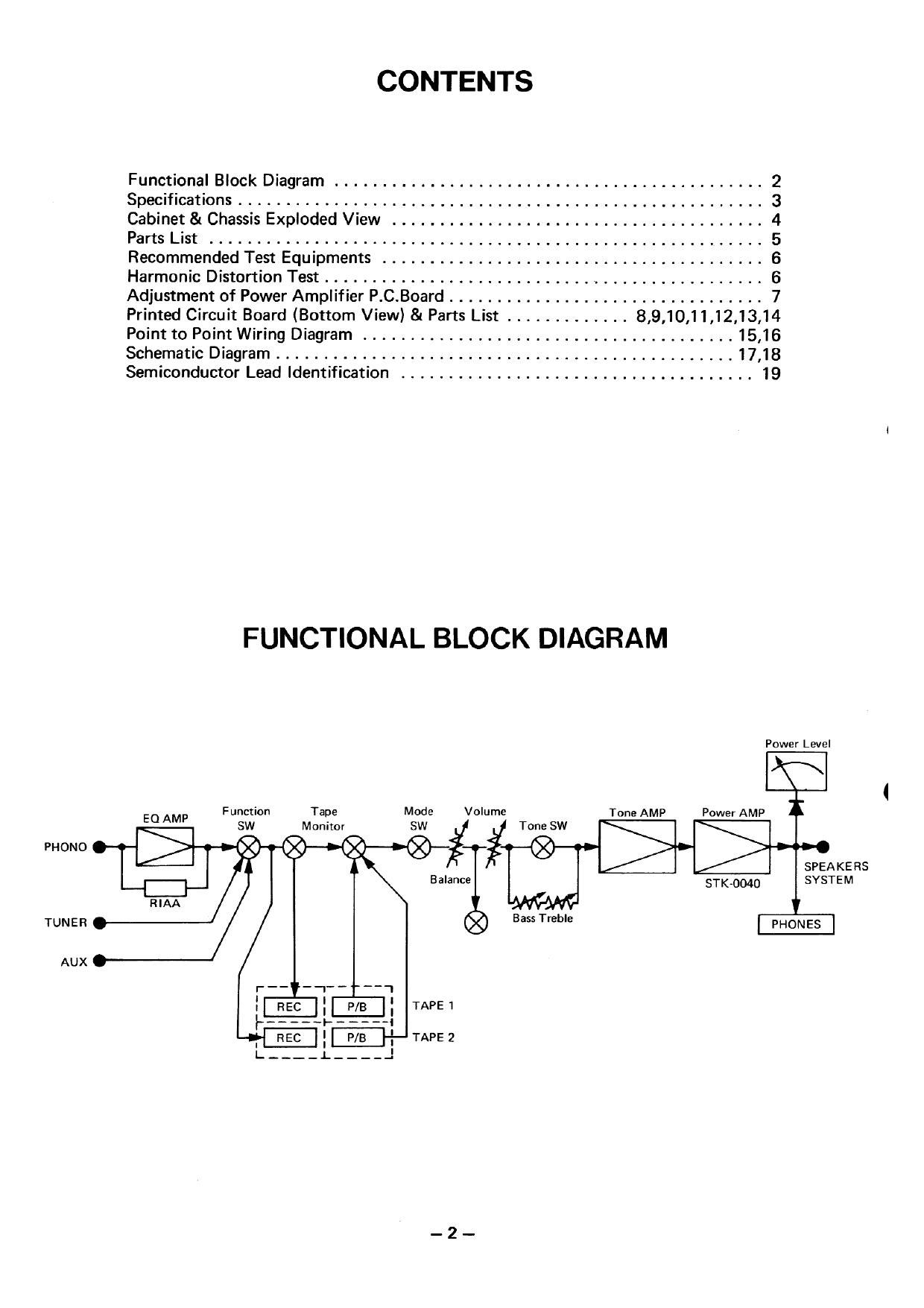

CONTENTS

Functional Block Diagram ............................................. 2
Specifications ....................................................... 3
Cabinet & Chassis Exploded View ....................................... 4
Parts List .......................................................... 5
Recommended Test Equipments ........................................ 6
Harmonic Distortion Test .............................................. 6
Adjustment of Power Amplifier P.C.Board ................................. 7
Printed Circuit Board (Bottom View) & Parts List ............. 8,9,10,11,12,13,14
Point to Point Wiring Diagram ....................................... 15,16
Schematic Diagram ................................................ 17,18
Semiconductor Lead Identification ..................................... 19

FUNCTIONAL BLOCK DIAGRAM

Power Level

V

Function Tme Mode Volume Tone AMP Power AMP

E0 AMP SW Monitor SW Tone SW
PHONO D

33'3" STK~0040

SPEA KE RS
SYSTEM

Bass Treble

TUNER

AUX

TAPE 1

TAPE 2

Page 2

SPECIFICATIONS

AMPLIFIER CA-2221

POWER AMPLIFIER SECTION
Continuous RMS sine wave power per
channel within stated bandwidth at no 30 Watts
more than stated distortion and with
an 8 ohm load.
Power Band Width 20 Hz - 20 kHz
Total Harmonic Distortion at Hated Power 0.03 36
IN. Distonion 0.03 %
Speaker Damping 50
PREAMPLIFIER SECTION

Phone (20 Hz - 20 kHz) :05 dB
Frequency Response

Aux. (20 Hz -20 kHz) $0.5 dB
Input Sensitivity Phono 2.5 mV/50k n

and Impedance Tape Monitor 1

150 mV/50k fl

Tape Monitor 2

150 mV/SOk SZ

Tuner 150 mV/SOk (2
Auxiliary 150 mV/SDk a
Phone Max. Input Capability
Phone 230 mV
Tone Control Bass (100 Hz) 210 dB
TreblelIOkHZ) :IOdB
Loudness Contour (100Hz/10kH2) +8 dB/+3 dB
Hum and Noise Phone 80 dB
(IHF Short Circuit, .
A Net Work) Tape Monitor 95 dB
Tuner 95 dB
Auxiliary 95 dB
GENERAL
AC: 110/720 V
Power Requirements
200 W/250 VA

Dimensions (W x D x H)

440 x 310 x 89.5 mm

Weight (approx)

7.6 kg

Because mixer pmdum are subject to continuum Improvement. Fisher reserves [he rum in modify. change. oraller nnv deny. or spmnmnons without Holt"! and wllhoul Incuflmg any
obligation, Fisher men, the nghl to make changzs and lmprouemenls upon its products million! an) obligation 10 main" such changes upon m of us pmducts previously manufactured.
