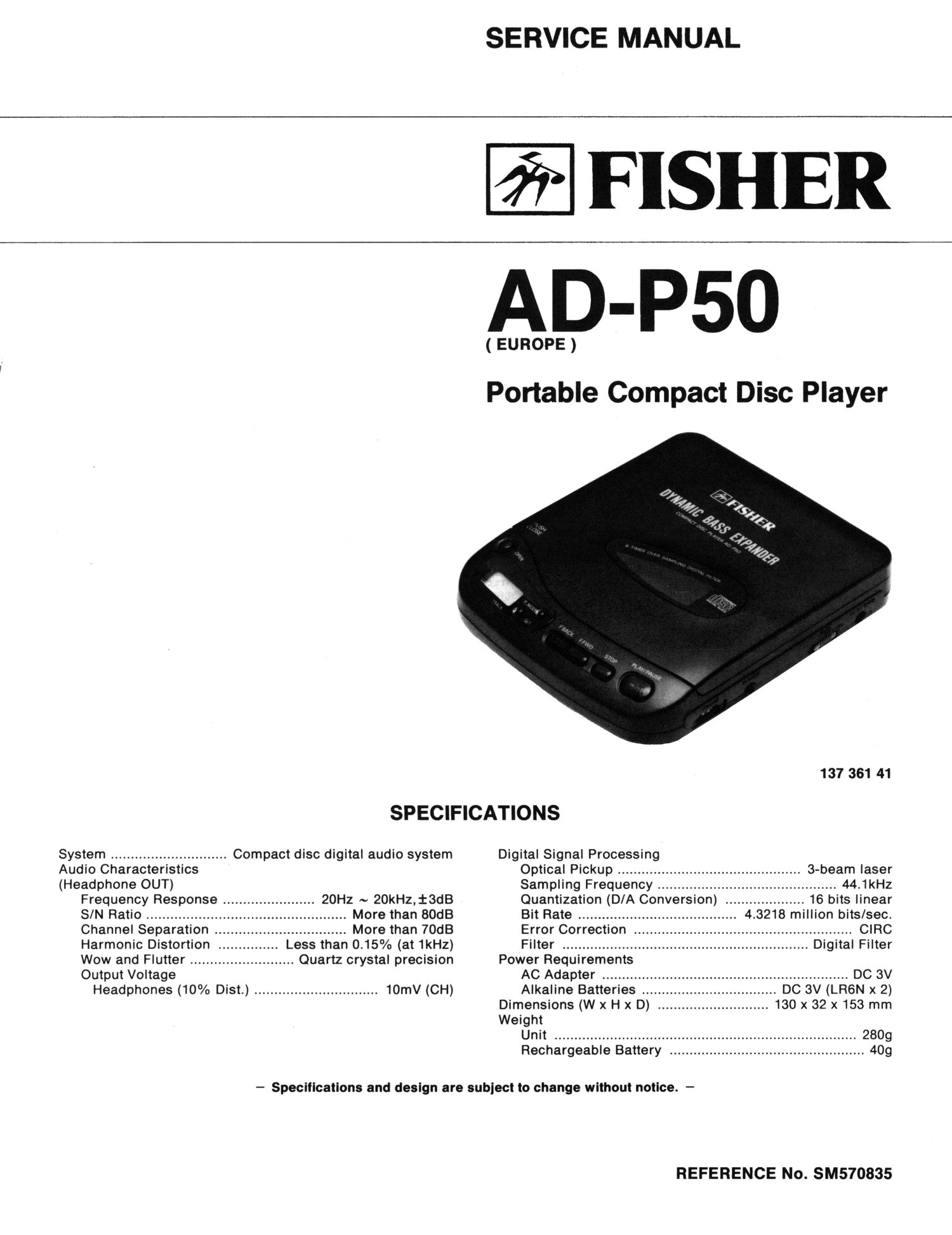

Page 1
SERVICE MANUAL
I FISHER
AID-P5
( EUROPE )
Portable Compact Disc Player
137 361 41
SPECIFICATIONS
System ............................. Compact disc digital audio system Digital Signal Processing
Audio Characteristics Optical Pickup .............................................. 3-beam laser
(Headphone OUT) Sampling Frequency ............................................. 44.1kHz
Frequency Response ....................... 20Hz ~ 20kHz,:l:3dB Quantization (D/A Conversion) .................... 16 bits linear
S/N Ratio .................................................. More than 80dB Bit Rate ........................................ 4.3218 million bits/sec.
Channel Separation ................................. More than 70dB Error Correction ....................................................... CIRC
Harmonic Distortion ............... Less than 0.15% (at 1kHz) Filter .............................................................. Digital Filter
Wow and Flutter .......................... Quartz crystal precision Power Requirements
Output Voltage AC Adapter .............................................................. DC 3V
Headphones (10% Dist.) ............................... 10mV (CH) Alkaline Batteries .................................. DC 3V (LR6N x 2)
Dimensions (W x H x D) ............................ 130 x 32 x153 mm
Weight
Unit ............................................................................ 2809
Rechargeable Battery ................................................. 409
- Specifications and design are subject to change without notice. -
REFERENCE No. SM570835
