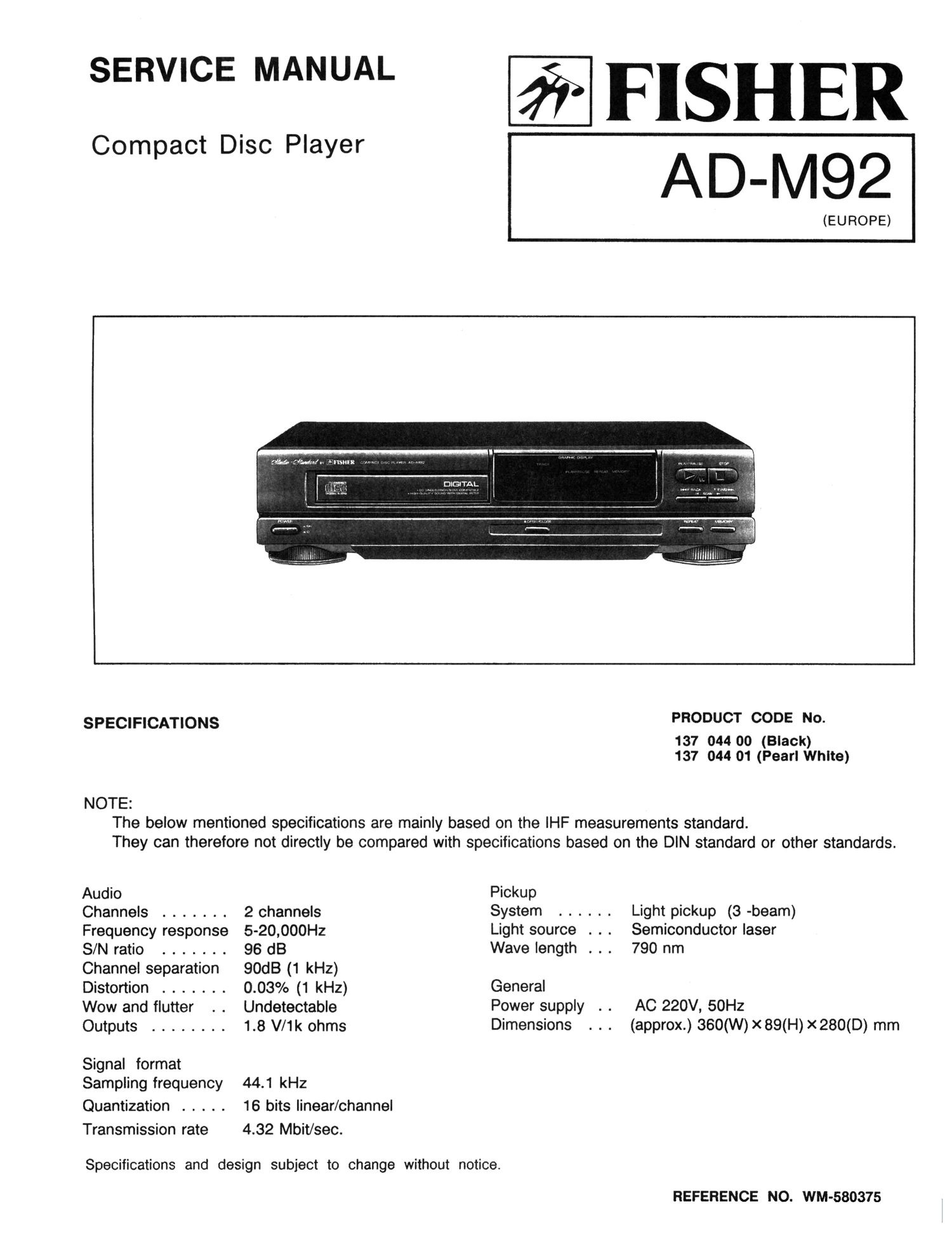

Page 1
SERVICE MANUAL
Compact Disc Player
flMfme/u Mun": wwr . n-
VI v , DIGITAL .
1" Iii II -i 0...)! :-:.\IU.V:.:".|lllu \- .u.
{82%. mm
W mu..." . V W..........,. www.mm . ~.\v...-.v.. -N. ......... m...
SPECIFICATIONS
NOTE:
.FlSHER
AI-MQ
(EUROPE)
slimlirtfi
PRODUCT CODE No.
137 044 00 (Black)
137 044 01 (Pearl White)
The below mentioned specifications are mainly based on the IHF measurements standard.
They can therefore not directly be compared with specifications based on the DIN standard or other standards.
Audio Pickup
Channels ....... 2 channels System ...... Light pickup (3 -beam)
Frequency response 5-20.000Hz Light source . . . Semiconductor laser
S/N ratio ....... 96 dB Wave length . . . 790 nm
Channel separation 90dB (1 kHz)
Distortion ....... 0.03% (1 kHz) General
Wow and flutter Undetectable Power supply AC 220V, 50Hz
Outputs ........ 1.8 V/1k ohms Dimensions (approx.) 360(W) X 89(H) X280(D) mm
Signal format
Sampling frequency 44.1 kHz
Quantization 16 bits linear/channel
Transmission rate 4.32 Mbit/sec.
Specifications and design subject to change without notice.
REFERENCE NO. WM-580375
