Fisher AD 925 Schematic
This is the 4 pages manual for Fisher AD 925 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Fisher AD 925 Schematic (Ocr-read)

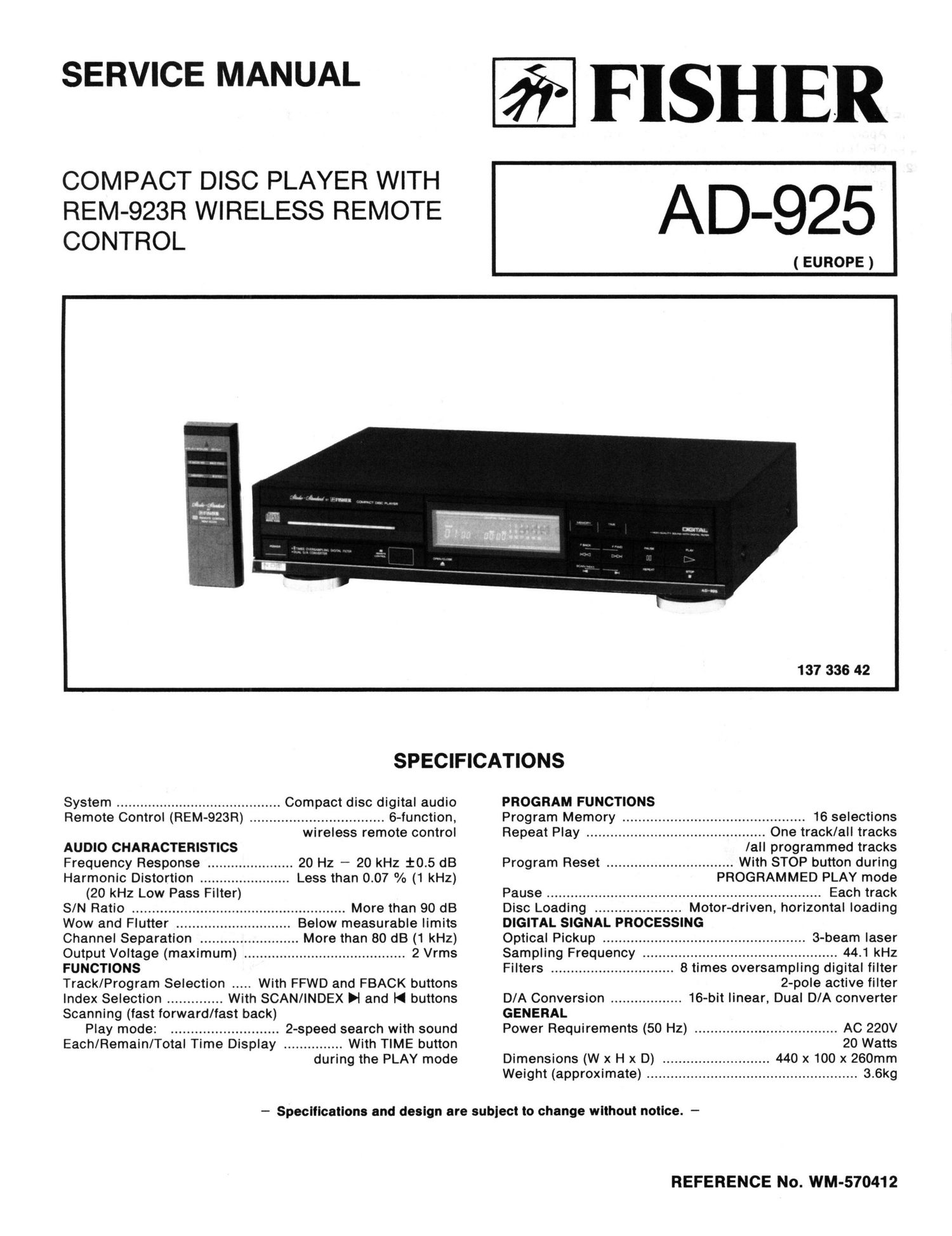

Page 1
SERVICE MANUAL
COMPACT DISC PLAYER WITH
REM-923R WIRELESS REMOTE
CONTROL
I FISHER
AD-925
( EUROPE )
137 336 42
SPECIFICATIONS
System .......................................... Compact disc digital audio PROGRAM FUNCTIONS
Remote Control (REM-923R) .................................. 6-function, Program Memory .............................................. 16 selections
wireless remote control Repeat Play ............................................. One track/all tracks
AUDIO CHARACTERISTICS /all programmed tracks
Frequency Response ...................... 20 Hz - 20 kHz $0.5 dB Program Reset ................................ With STOP button during
Harmonic Distortion ....................... Less than 0.07 °/o (1 kHz) PROGRAMMED PLAY mode
(20 kHz Low Pass Filter) Pause ..................................................................... Each track
S/N Ratio ...................................................... More than 90 dB Disc Loading ...................... Motor-driven, horizontal loading
Wow and Flutter ............................. Below measurable limits DIGITAL SIGNAL PROCESSING
Channel Separation ......................... More than 80 dB (1 kHz) Optical Pickup ................................................... 3-beam laser
Output Voltage (maximum) ......................................... 2 Vrms Sampling Frequency ................................................. 44.1 kHz
FUNCTIONS Filters ............................... 8 times oversampling digital filter
Track/Program Selection ..... With FFWD and FBACK buttons 2-pole active filter
Index Selection .............. With SCAN/INDEX H and I4 buttons D/A Conversion .................. 16-bit linear, Dual D/A converter
Scanning (fast forward/fast back) GENERAL
Play mode: ........................... 2-speed search with sound Power Requirements (50 Hz) .................................... AC 220V
Each/Remain/Total Time Display ............... With TIME button 20 Watts
during the PLAY mode Dimensions (W x H x D) ........................... 440 x 100 x 260mm
Weight (approximate) ..................................................... 3.6kg
- Specifications and design are subject to change without notice. -
REFERENCE No. WM-57041 2
