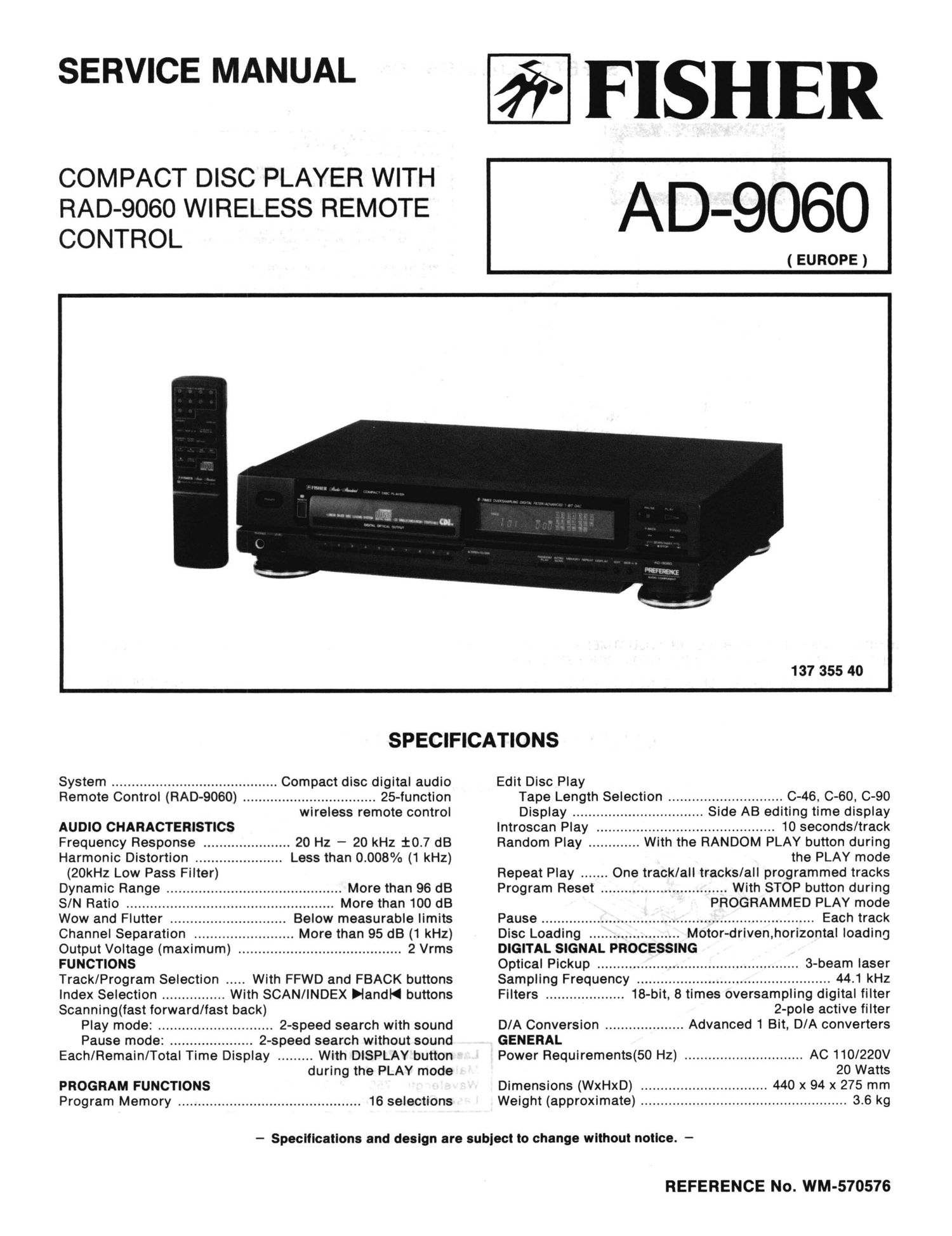

Page 1
SERVICE MANUAL
COMPACT DISC PLAYER WITH
RAD-9060 WIRELESS REMOTE
CONTROL
I FISHER
AD-9H6
(EUROPE)
137 355 40
SPECIFICATIONS
System .......................................... Compact disc digital audio Edit Disc Play
Remote Control (RAD-9060) .................................. 25-function Tape Length Selection ............................. C-46, C-60, C-90
wireless remote control Display ................................. Side AB editing time display
AUDIO CHARACTERISTICS lntroscan Play ............................................. 10 seconds/track
Frequency Response ...................... 20 Hz - 20 kHz 10.7 dB Random Play ............. With the RANDOM PLAY button during
Harmonic Distortion ...................... Less than 0.008% (1 kHz) the PLAY mode
(20kHz Low Pass Filter) Repeat Play ....... One track/all tracks/all programmed tracks
Dynamic Range ............................................ More than 96 dB Program Reset ................................ With STOP button during
S/N Ratio .................................................... More than 100 dB PROGRAMMED PLAY mode
Wow and Flutter ............................. Below measurable limits Pause ..................................................................... Each track
Channel Separation ......................... More than 95 dB (1 kHz) Disc Loading ....................... Motor-driven,horizontal loading
Output Voltage (maximum) ......................................... 2 Vrms DIGITAL SIGNAL PROCESSING
FUNCTIONS Optical Pickup ................................................... 3-beam laser
Track/Program Selection ..... With FFWD and FBACK buttons Sampling Frequency ................................................. 44.1 kHz
Index Selection ................ With SCAN/INDEX HandK buttons Filters .................... 18-bit, 8 times oversampling digital filter
Scanning(fast forward/fast back) 2-pole active filter
Play mode: ............................. 2-speed search with sound D/A Conversion .................... Advanced 1 Bit, D/A converters
Pause mode: ..................... 2-speed search without sound GENERAL
Each/Remain/Total Time Display ......... With DISPLAY button Power Requirements(50 Hz) .............................. AC 110/220V
during the PLAY mode 20 Watts
PROGRAM FUNCTIONS Dimensions (WxHxD) ................................ 440 x 94 x 275 mm
Program Memory .............................................. 16 selections Weight (approximate) .................................................... 3.6 kg
- Specifications and design are subject to change without notice. -
REFERENCE No. WM-570576
