Fisher 70 RT Service Manual
This is the 9 pages manual for Fisher 70 RT Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 9
Extracted text from Fisher 70 RT Service Manual (Ocr-read)

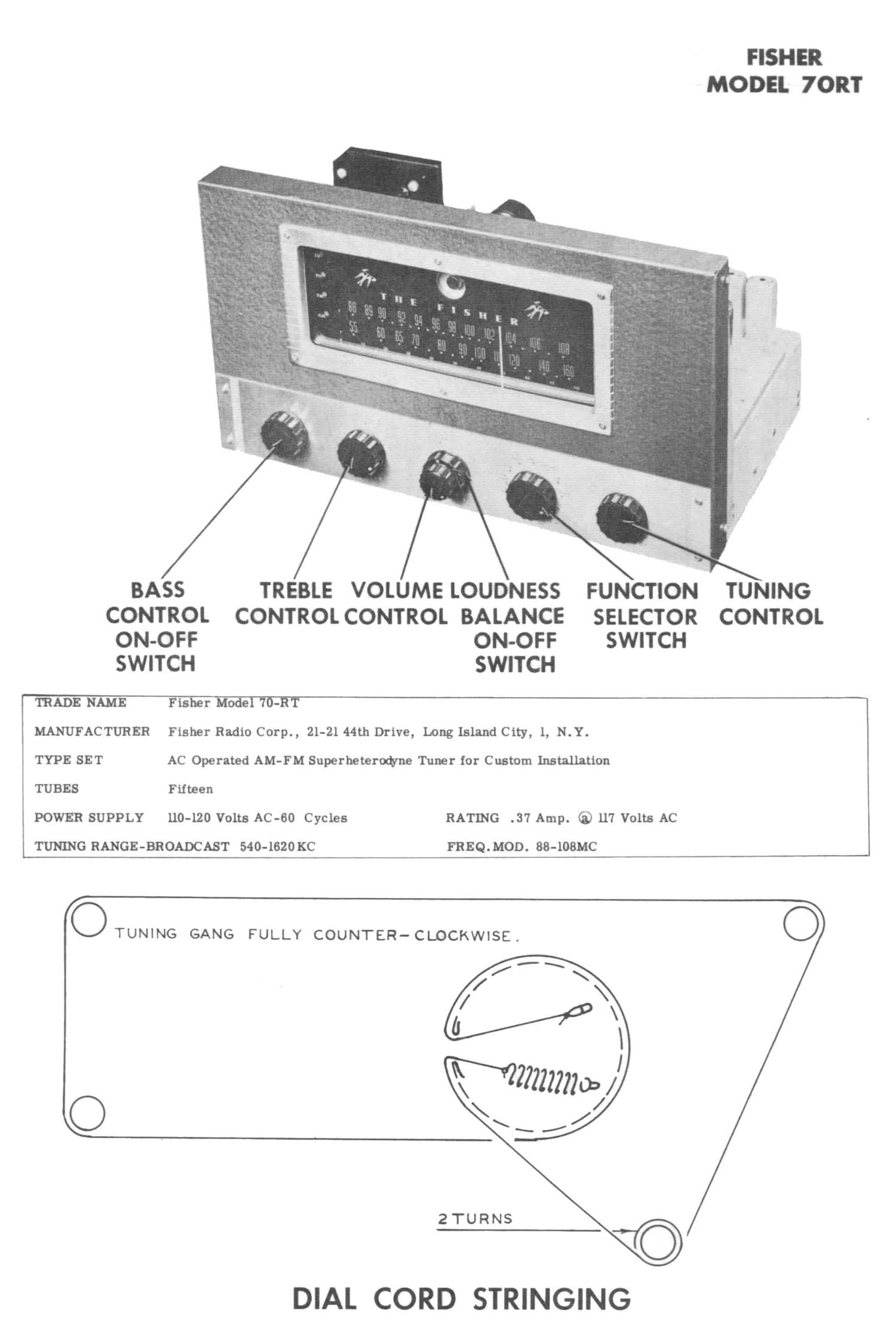

Page 1
FISHER
MODEL 7OR'I'
BASS TREBLE VOLUME LOUDNESS FUNCTION TUNING
CONTROL CONTROL CONTROL BALANCE SELECTOR CONTROL
ON-OFF ON-OFF SWITCH
SWITCH SWITCH
TREE TAMI-2 Fisher Modem-RT
MANUFACTURER Fisher Radio Corp., 21-214411: Drive, Long 181mm City, 1, N.Y.
TYPE SET AC Operated AM-FM Superheterodyne Tuner for Custom Installation
TUBES Fifteen
POWER SUPPLY 110-120 Volta AC-60 Cycles RATING .37 Amp. ® 117 Volts AC
TUNING RANGE-BROADCAST 540-1620 KC FREQ.MOD. 88-108MC
O TUNING GANG FULLY COUNTER- CLOCKWISE. O
ZTURNS
DIAL CORD STRINGING
