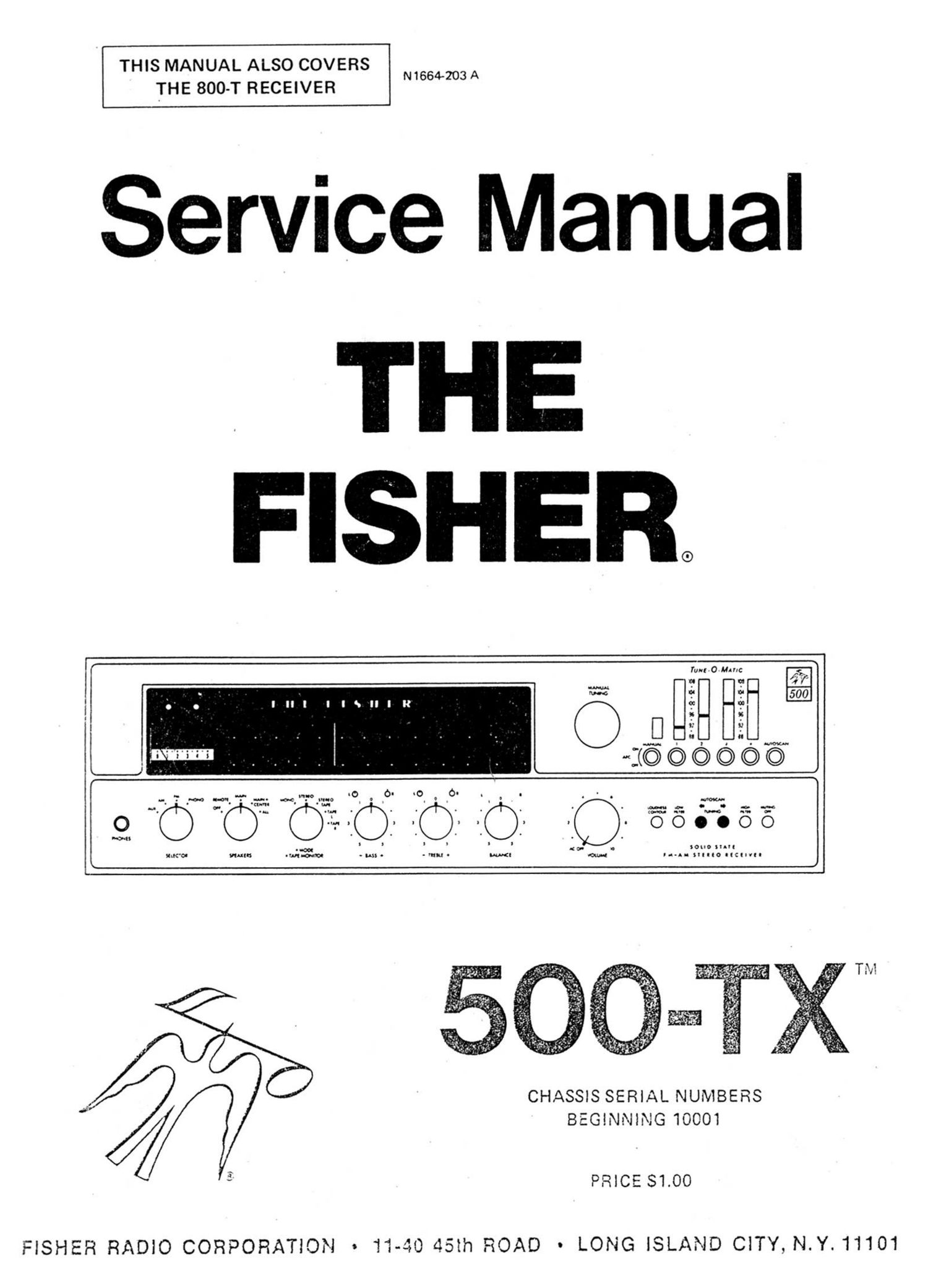

Fisher 500 TX Service Manual

Page 1

THIS MANUAL ALSO COVERs
THE 800-T RECEIVER

Service Manual

THE
FISHER

( Tu~l~0 MAI/c

o} 4/"
9F 500
_m

T" 5

1)

lllli1f7.:@OOOOO

1000000 ©5--05

SOU 0 8" AV!
9!!!! In. oAlSitllOIICII 'l.

N 1664-203 A

IIIIIISIIIR

a.=...8.g.§

CHASSIS SERIAL NUMBERS
BEGiNIJING 10001

(b)

PRICES1.00

FISHER RADIO CORPORATION . 11-40 45111 ROAD . LONG ISLAND CITY, NY. 11101

Page 2

(-_-_

REQUIRED TEST EQUIPMENT j

The following equipment is required to completely test and align modern high-fidelity amplifiers, tuners, and receivers.

Line Voltage Autotransformer or Voltage Regulator 10.7 MHz Sweep (39,19,310,

DC Vacuum Tube Voltohmmeter Multiplex Generator (preferably With RF Output -

FISHER 300)
455 kHz Sweep GeneraIOr

Accurately Calibrated AC Vacuum Tube Voltmeter

Oscilloscope ((Flat to 100 kHz Minimum)

Low-Distortion Audio (Sine Wave) Generator Ferrite Test L000 SW3

lntermodulation Distortion Analyzer 2 _. FU Range Speakers 0' Listening 751$

Harmonic Distortion Analyzer Stereo Source - Turntwle, Tape Recorder. etc.

Soldering Iron With Small Tip, Fully Insulated from AC Line
Suction Desoldermg T001

2 - Load resistors, 8-Ohms, 100 Watt (Minimum Rating)
AM/FM Signal Generator

Many of these items are included only as a reminder - they
are normal procedures for experienced technicians. Shortcuts
may be taken, but these often cause additional damage to
transistors, circuit components, or printed circuit boards.

SOLDERING: A well-tinned, hot, clean soldering -iron tip
will make soldering easier, without causing damage to the
printed circuit board or the components mounted on it.
Regular use of a sponge cleaner will 'maintain a clean
soldering surface. The heat available at the tip, (not the watt-
age of the iron) is important. Some 50-watt irons reach
temperatures of 1,0000 F, while others will hardly melt
solder. Small-diameter tips should be used for single solder
connections, pyramid and chisel tips for large areas.

Always disconnect the AC power cord from the line when
soldering. Turning the power switch OFF is not sufficient.
Power-line leakage paths, through the heating element of the
iron, may destroy transistors.

PARTS REMOVAL: If a part is not being returned for in-
warranty factory replacement, it may be cut in half (with
diagonal cutting pliers) to make removal easier. Multiple
terminal parts, such as IF transformers, or electrolytic
capacitors, should be removed using special de-soldering tips
made especially for this purpose. Removing solder from
terminals, reduces the possibility of breaking the printed
circuit board when the part is removed.

ACCIDENTAL SHORTS: A clean working area, free of
metal particles, screws, etc., is an important preventive in
avoiding servicing problems. Screws, removed from the
chassis during servicing, should be stored in a box until
needed. While a set is operating, it takes only an instant for a
base-to-collector short to destroy a transistor (and others
direct-coupled to it). In the time it takes for a dropped
machine screw, washer, or screwdriver, to contact a pair of
socket terminals (or terminal and chassis), a transistor can be
ruined.

SOLID-STATE DEVICES: Integrated Circuits contain the
equivalent of many circuit parts, including transistors, diodes,
resistors, and capacitors. The preferred troubleshooting pro-
cedure requires isolating the trouble to one stage using AC
signal tracing methods. Once the suspected stage is located,
the DC voltages at the input and output leads are measured to
give an accurate indication of the Operating conditions of the
IC. DO NOT use an ohmmeter to check continuity with the
IC mounted on the printed circuit board. Forward biasing the
internal junctions within the IC may burn out the transistors.
Do not replace a defective IC until all external resistors,
capacitors, and transformers are checked first, to prevent the
replacement IC from failing immediately due to a defect in
the connecting components. Solder and unsolder each lead
separately using a pliers or other heat sink on the lead to
prevent damage from excessive heat. Check that the leads are

CAUTION: This precision high-fideitv PST'U'T-s. 3r; . 3' 5-:
serviced only by qualified personnel, trained tr tee race ' 3
transistor equipment and printed circuitry.

connected to the correct locations on the printed circuit
board before turning the set or

Whenever possible. a transistor tester Mid be used to de-
termine the condition of a transistor or mode. Ohmmeter
checks do n0! prov-de conclusive data. rd may even destroy
the junctionlsl within the device

Never attempt to repair a "armor poser amplifier module
until the power supply filtercmac-tors are fully discharged.

If an Output or driver transistor becomes defective (opens or
shorts). always check ALL directco-apied transistors and
diodes in that channel. In addt-or. cnect the bias pot., and
other parts in the has networtc before artstaihng replacement
transistors All Output and once! transistors in one channel
may be destmyed if the bias "(W as defective. After parts
replacement, always check 2"! bus Wt for specified
idling current.

In some applications, replacement of transact: muSt be made
from the same beta grOup as the origins type. The beta group
is indicated by a colored martmg on the transistor. Be sure
to include this information when ordering replacement
transistors.

When mounting a replacement power transistor, be sure the
bottom of the flange, mica insulator. and the surface of the
heat sink, are free of foreign matter Dust and grit will
prevent flat contact reducmg heat transfer to the heat sink.
Metallic particles can puncture the emulator, cause a short,
and destroy the transistor.

Silicone grease must be used between the transistor and the
mica insulat0r, and between the mica and the heat sink, for
best heat transfer. Use Dow-Corning 003. or an equivalent
compound made for power transistor heat conduction.

Use care when making connections to speakers and output
terminals. To reduce the possibility of shorts, lugs should be
used on the exposed ends, or stranded wire should be tinned
to prevent frayed wire ends. Current in the speakers and out-
put circuitry is quite high - poor contacts, or small sized
wire, can cause significant power losses in the system. For
wire lengths greater than 30 feet, 16 AWG, .or heavier, should
be used.

VOLTAGE MEASUREMENTS: All voltages are measured
with the line voltage adjusted to 120 volts. All measured
voltages are 110%. DC voltages are measured to ground
with a VTVM, with no signal input unless otherwise noted.
AC signal voltages are measured under the conditions
specified on the schematic.

ALIGNMENT PROCEDURES: DO NOT attempt realignment
unless the required test equipment is available, and the
alignment procedure is thoroughly understood.

BECAUSE ITS PRODUCTS ARE SUBJECT TO CONTINUOUS IMPROVEMENT, FISHER RADIO CORPORATION RESERVES THE
RIGHT TO MODIFY ANY DESIGN OR SPECIFICATION WITHOUT NOTICE AND WITHOUT INCURRING ANY OBLIGATION.
