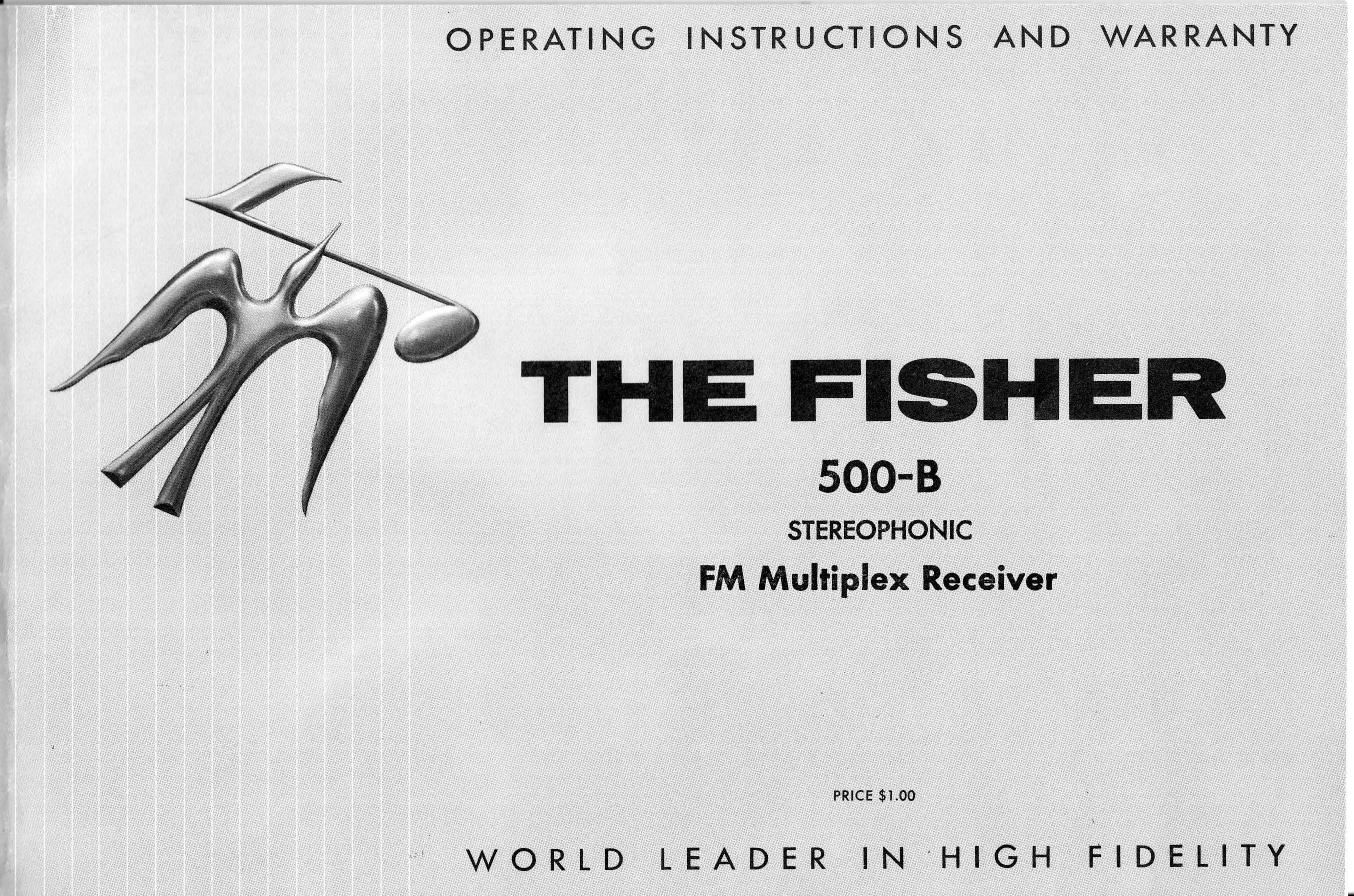

OPERATING INSTRUCTIONS AND WARRANTY

1" THE FISHER

500-3
STEREOPHONIC
FM Multiplex Receiver

PRICE $1.00

WORLD LEADER INHI,GH FIDELITY

Page 2

CONGRATULATIONS!

[TH your purchase of a FISHER instrument you have com-
pleted a chain of events that began many months ago, in our
research laboratories. For it is there that the basic concept of the
equipment you have just acquired came into being-its appearance,
its functions, its quality of performance, its convenience of use.

But the end step-your purchase-is merely a beginning. A door
has now opened, for you and your family, on virtually unlimited
years of musical enjoyment. Recognizing that one of the keys to
pleasurable ownership is reliability, we have designed this instru-
ment to give long and trouble-free service. In fact, instruments we

Remember always that we want this equipment to give you the best
performance of which it is capable. Should you at any time need
our assistance toward that objective, please write me personally.

AN IMPORTANT SUGGESTION

Many hours have been spent by our engineers and technical writers
to create this instruction book for your guidance and enjoyment.
If: you want the most out of your FISHER, there is only one way
to obtain it. With the equipment before you, please read this book-
let carefully. It will be time well spent!

made over twenty- five years ago are still in use today.

AWY FM Founder and President
