Fisher 50 C CH Service Manual

This is the 6 pages manual for Fisher 50 C CH Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 6
Fisher 50 C CH Service Manual

Extracted text from Fisher 50 C CH Service Manual (Ocr-read)

Page 1

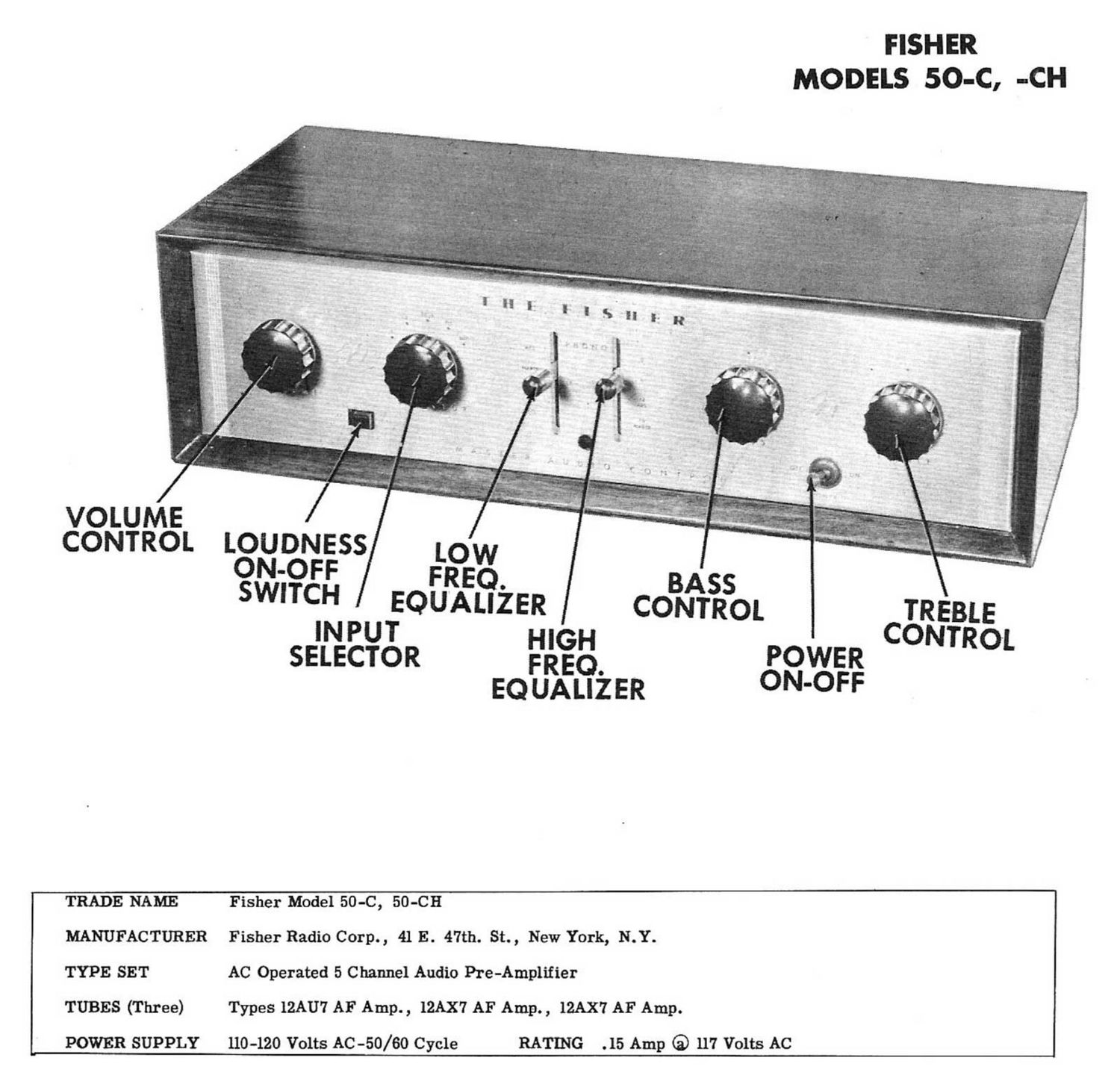

FISHER
MODELS 50-C, -CH


VOLUME
CONTROL LOU DN ESS LOW
Wig)? FREQ. BASS
': PU TEQUALIZER CONTROL CTREBLE
SELECTOR 2'53 POWER ONTROL
EQUALIZER ON-OFF
TRADE NAME Fisher Model so-c, 50-011
MANUFACTURER Fisher Radio Corp. , 41 E. 47th. St. , New York, N. Y.
TYPE SET AC Operated 5 Channel Audio Pre-Amplifier
TUBES (Three) Types 12AU7 AF Amp. , 12AX7 AF Amp. , 12AX7 AF Amp.
POWER SUPPLY 110-120 Volts Ac-so/so Cycle RATING .15 Amp Q 117 Volts Ac
