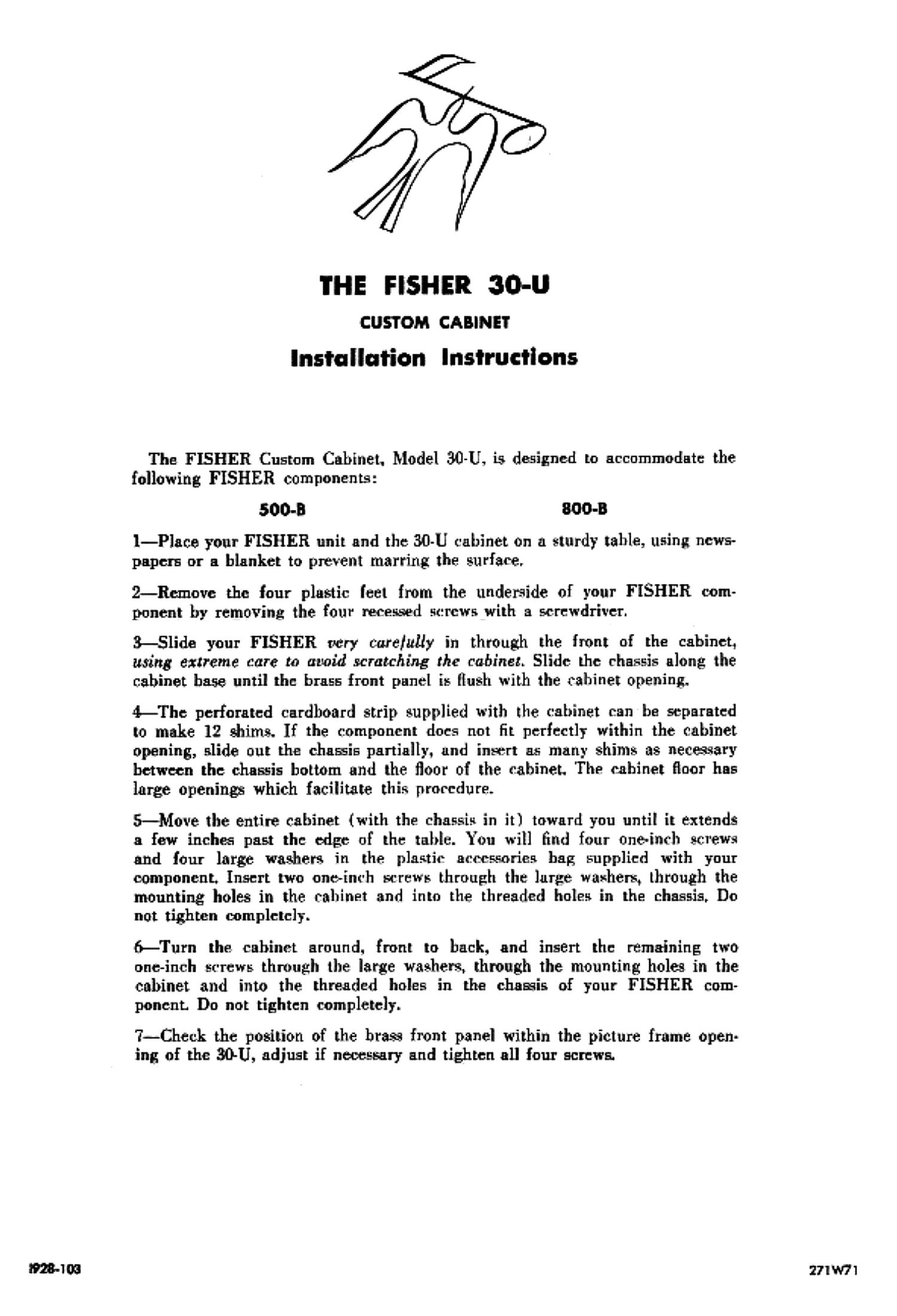

'I'l-IE FISHER 30-0

cusrom CABINEI'
Installation Instructions

The FISHER Custom Cabinet. Model all-U. is designed to accommodate the
following FISHER components:

500-! 800-3

l-Place your FISHER unit and the 30-U cabinet 0:: a sturdy table, using news-
papers or a blanket to prevent marring the surface.

2-11ch the four plastic leet from the underside of your FISHER com-
ponent by removing the feur recessed screws with a screwdriver.

3-Slide your FISHER very Carefully in thmugh the front of the cabinet1
using extreme care to anoid scratching the cabinet. Slide the chassis along the
cabinet base until the brass front panel its flush with the cabinet opening.

4-The perforated cardboard strip supplied with the cabinet can be separated
to make 12 chime. If the component does not fit perfectly within the cabinet
opening, slide out the chassis partially, and insert as many shims as nece'atsal'y
between the chassis bottom and the floor of the cabinet. The cabinet floor has
large opening which facilitate this. procedure.

S-Move the entire cabinet {with the chassis in it) toward you until it extends
a few inches past the edge of the table. Yen will find four One-inch screws
and {Our large washers in the plastic acccseoriee hag supplied with your
component. Insert two one-inch screw:- through the large washers, lhrOugh the
mannting holes in the rahinet and into the threaded holes in the chassis, Do
not tighten completely.

6-Turn the. cabinet around, front to back, and insert the remaining two
one-inch screws through the large fathers. through the mounting holes in the
cabinet and into the threaded holes in the chnmis of your FISHER com-
ponent. Do not tighten completely.

"IF-Check the position of the brace front panel within the picture from: open-
ing of the aou, adjust if necessary and tighten all four screws.

271W]
