Ferrograph S 1 Schematic
This is the 2 pages manual for Ferrograph S 1 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 2
Extracted text from Ferrograph S 1 Schematic (Ocr-read)
Page 2

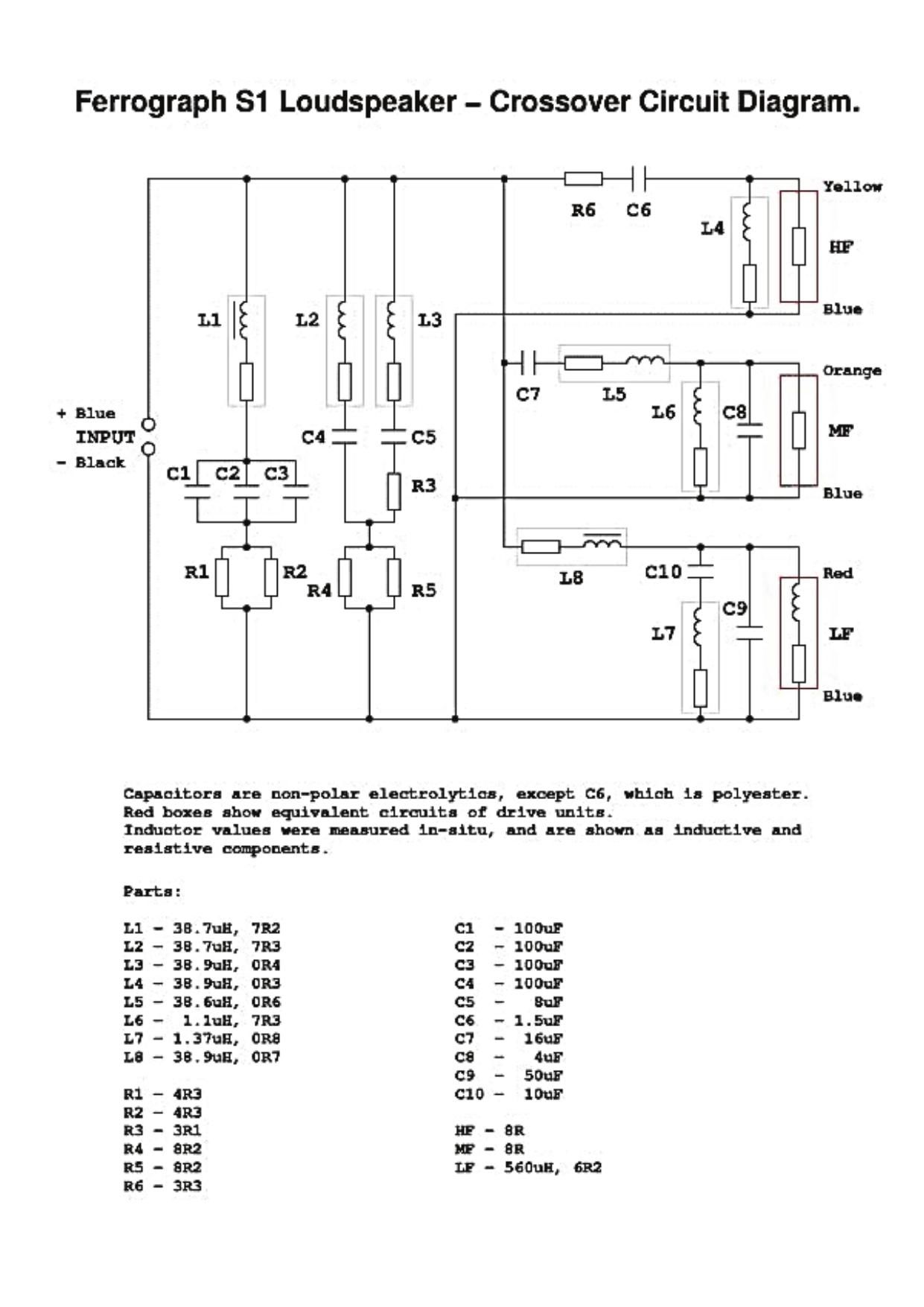

Ferrograph S1 Loudspeaker - Crossover Clrcult Board.
Component-side view.
Resistor. 81-85 are under: an aluminium cover.
