Fender vibrasonic service manual
This is the 9 pages manual for fender vibrasonic service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from fender vibrasonic service manual (Ocr-read)

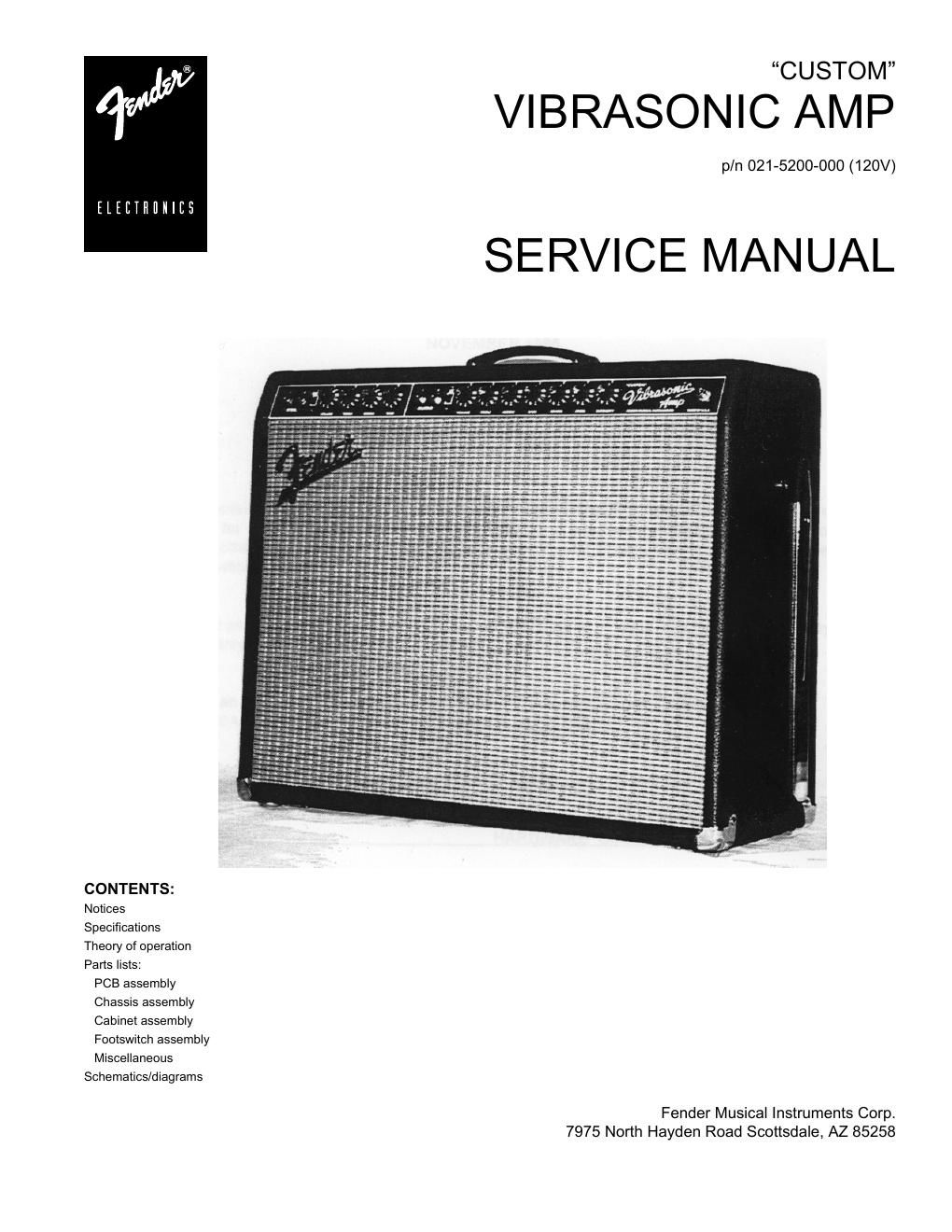

Page 1
CUSTOM VIBRASONIC (This is the model name for warranty claims) SERVICE MANUAL NOVEMBER 1995 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
CUSTOM VIBRASONIC SPECIFICATIONS Product Release No.:PR 186 (This is not a model number) Part Number:120V Version : 021-5200-000 Input impedance:Input 1, both channels 1mΩ Input 2, both channels 132kΩ Power Output:85 Watts RMS minimum @ 5% THD Rated load impedance:4Ω Speaker Complement:(1) 15 Special Design (p/n 049135) Dimensions:Height: 22" (55.9 cm) Width: 26 5/32" (66.4 cm) Depth: 10 3/8" (26.4 cm) Weight:71 lbs. (32.3 kg) Product specifications are subject to change without notice
