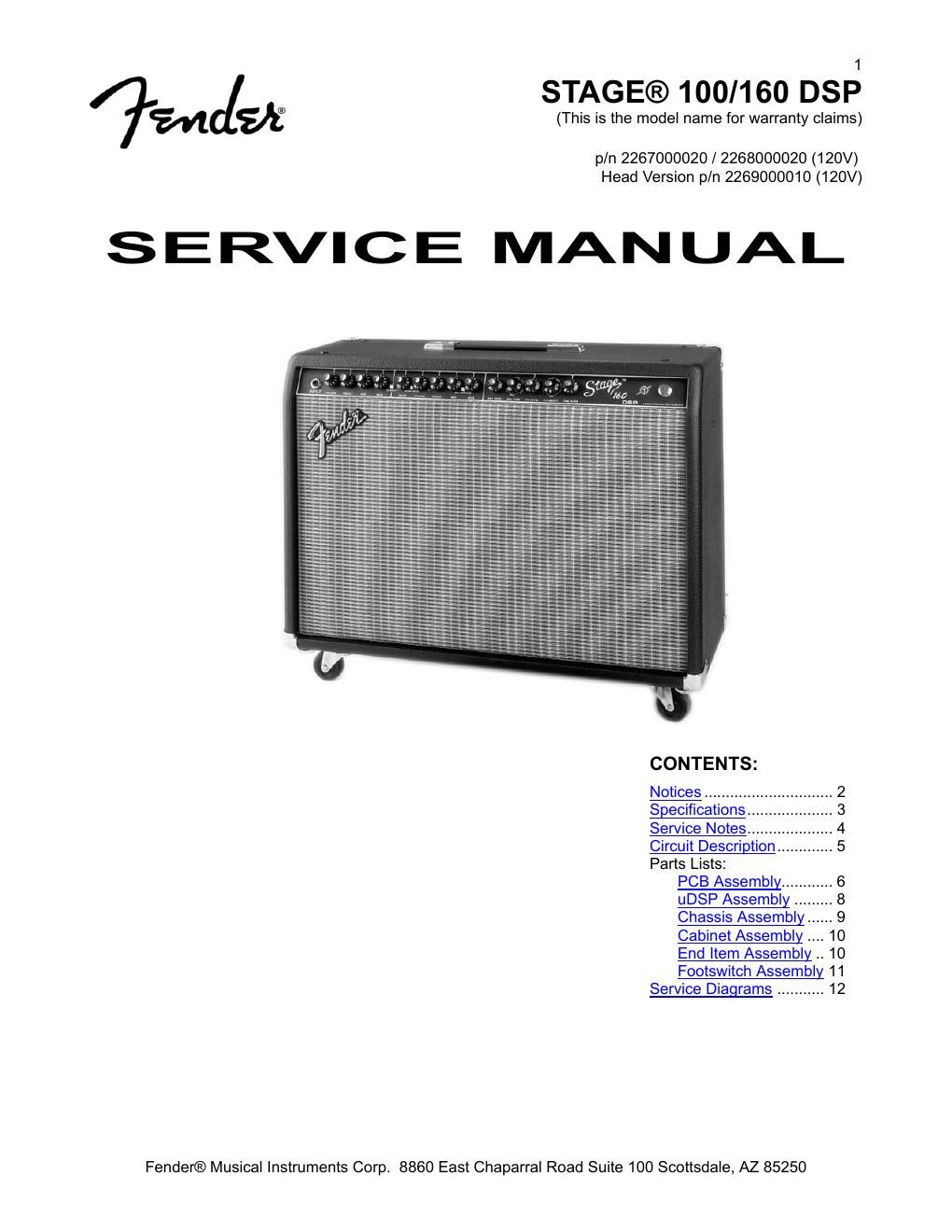

Fender stage 100 160 dsp
This is the 22 pages manual for fender stage 100 160 dsp.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from fender stage 100 160 dsp (Ocr-read)
Page 1
STAGE® 100/160 DSP (This is the model name for warranty claims)2 June, 2002 IMPORTANT NOTICE - Copyright © 2002 FMIC. All rights reserved. All information contained herein is CONFIDENTIAL and PROPRIETARY and is the property of Fender® Musical Instruments Corporation. It is not to be sold or assigned to another party and is disclosed solely for use by Fender Authorized Service Centers for purposes of product service and maintenance. All information is not to be dis- closed to others without the expressed permission of Fender® Musical Instruments Corporation. Allspecifications are subject to change without no- tice. This information and any copies produced electronically or otherwise must be surrendered upon demand of Fender Musical Instruments Cor- poration. - Parts marked with two asterisks ( **) indicate the required use of that specific part. This is neces- sary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! PARTS LIST CODES The description codes used in the itemized Parts Lists are defined below: CAPACITOR CODES CAP AE = Aluminum Electrolytic CAP CA = Ceramic Axial CAP CD = Ceramic Disk CAP MPF = Metalized Polyester Film CAP MY = Mylar CAP PFF = Polyester Film/Foil RESISTOR CODES RES CC = Carbon Comp RES CF = Carbon Film RES FP = Flame Proof RES MF = Metal Film RES WW = Wire Wound HARDWARE CODES BLX = Black Oxide CR = Chrome Plated HWH = Hex Washer Head M = Machine Screw NI = Nickel Plated OHP = Oval Head Phillips PB = Particle Board PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems SMA = Sheet Metal "A" Point SMB = Sheet Metal "B" Point SS = Stainless Steel TF = Thread Forming ZI = Zinc Plated
Page 2
STAGE® 100/160 DSP (This is the model name for warranty claims)3 SPECIFICATIONS Model Name: Stage 100 DSP Stage 160 DSP Stage 100H DSP (Head Version) Release Number:PR 501 PR 501 PR 501 (Not model numbers) Part Numbers (120V, 60Hz) US:2267000020 2268000020 2269000010 (110V, 60Hz) TW:2267001020 2268001020 2269001010 (240V, 50Hz) AUS:2267003020 2268003020 2269003010 (230V, 50Hz) UK:2267004020 2268004020 2269004010 (230V, 50Hz) ARG:2267005020 2268005020 2269005010 (230V, 50Hz) EUR:2267006020 2268006020 2269006010 (100V, 50/60Hz) JPN:2267007020 2268007020 2269007010 (220V, 60Hz) ROK:2267009020 2268009020 2269009010 (For all Models) Power Requirement:400W Power Output:100W RMS into 8 ohms @ 5%THD 160W RMS into 4 ohms @ 5%THD Power Amp Sensitivity:620mV for 100W into 8 ohms @ 5%THD 810mV for 160W into 4 ohms @ 5%THD Impedances Input (Pre-Amp):1M ohms Pre Amp Out:1k ohms Pwr Amp In:10k ohms Speaker Complement:One (1) 12", 8 ohm, Two (2) 12, 8 ohm, -NA- Celestion G12T-100 Celestion G12T-100 (P/N 0054420000) (P/N 0054420000) Dimensions Height:17.5 in (45 cm) 18.5 in (47 cm) 8.5 in (22 cm) Width:22.4 in (57 cm) 26.1 in (66 cm) 22.4 in (57 cm) Depth:10.2 in (26 cm) 10.3 in (26 cm) 9.5 in (24 cm) Weight:42 lbs (19.1 kg) 53 lbs (24.1 kg) 24 lbs (10.9 kg) Product specifications are subject to change without notice
