Fender sfx keyboard 200 11x17

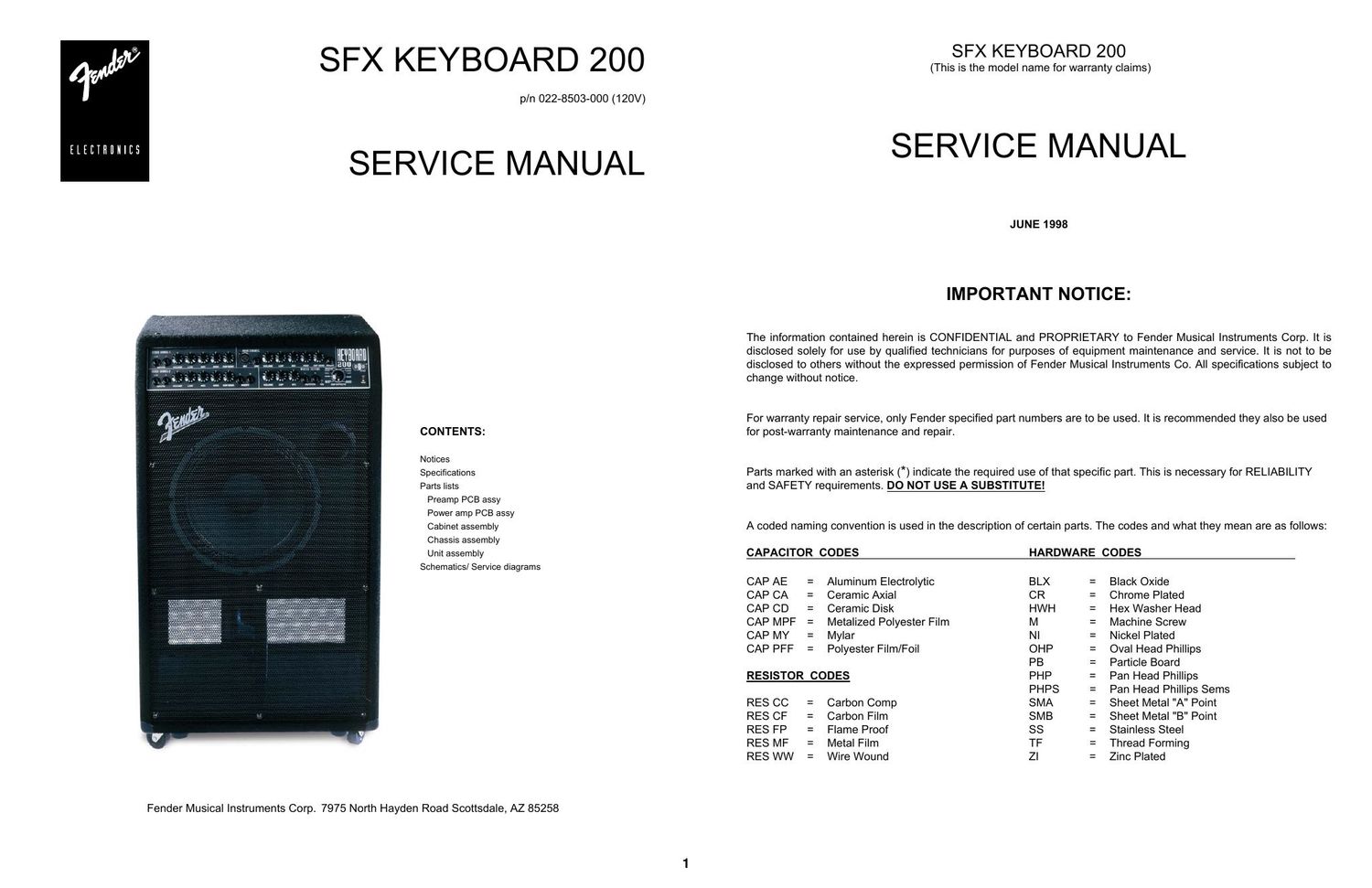

Page 1

S FX KEYB OARD 200 (ThisSisI:ttt)e( rrEEItaBmgérEA/{gagggaimm

p/n 022-8503-000 (120V)

inclining SERVICE MANUAL SERVICE MANUAL

JUNE 1998

IMPORTANT NOTICE:

The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical instruments Corp. It is
IIEI disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be
disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to
change without notice.

For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used

CONTENTS: for post-warranty maintenance and repair.
Notices
Specifications Parts marked with an asterisk (*) indicate the required use of that specific part. This is necessary for RELIABILITY
Parts lists and SAFETY requirements. DO NOT USE A SUBSTITUTE!
Preamp PCB assy
Power amp PCB assy
Cabinet assembly A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows:
Chassis assembly
Unit assembly CAPACITOR CODES HARDWARE CODES
Schematics] Service diagrams
CAP AE = Aluminum Electrolytic BLX = Black Oxide
CAP CA = Ceramic Axial CR = Chrome Plated
CAP CD = Ceramic Disk HWH = Hex Washer Head
CAP MPF = Metalized Polyester Film M = Machine Screw
CAP MY = Mylar Nl = Nickel Plated
CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips
PB = Particle Board
RESISTOR CODES PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
RES CC = Carbon Comp SMA = Sheet Metal "A" Point
RES CF = Carbon Film SMB = Sheet Metal "B" Point
RES FP = Flame Proof 83 = Stainless Steel
RES MF = Metal Film TF = Thread Forming
RES W = Wire Wound Zl = Zinc Plated

Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258
