Extracted text from fender schematic parts (Ocr-read)

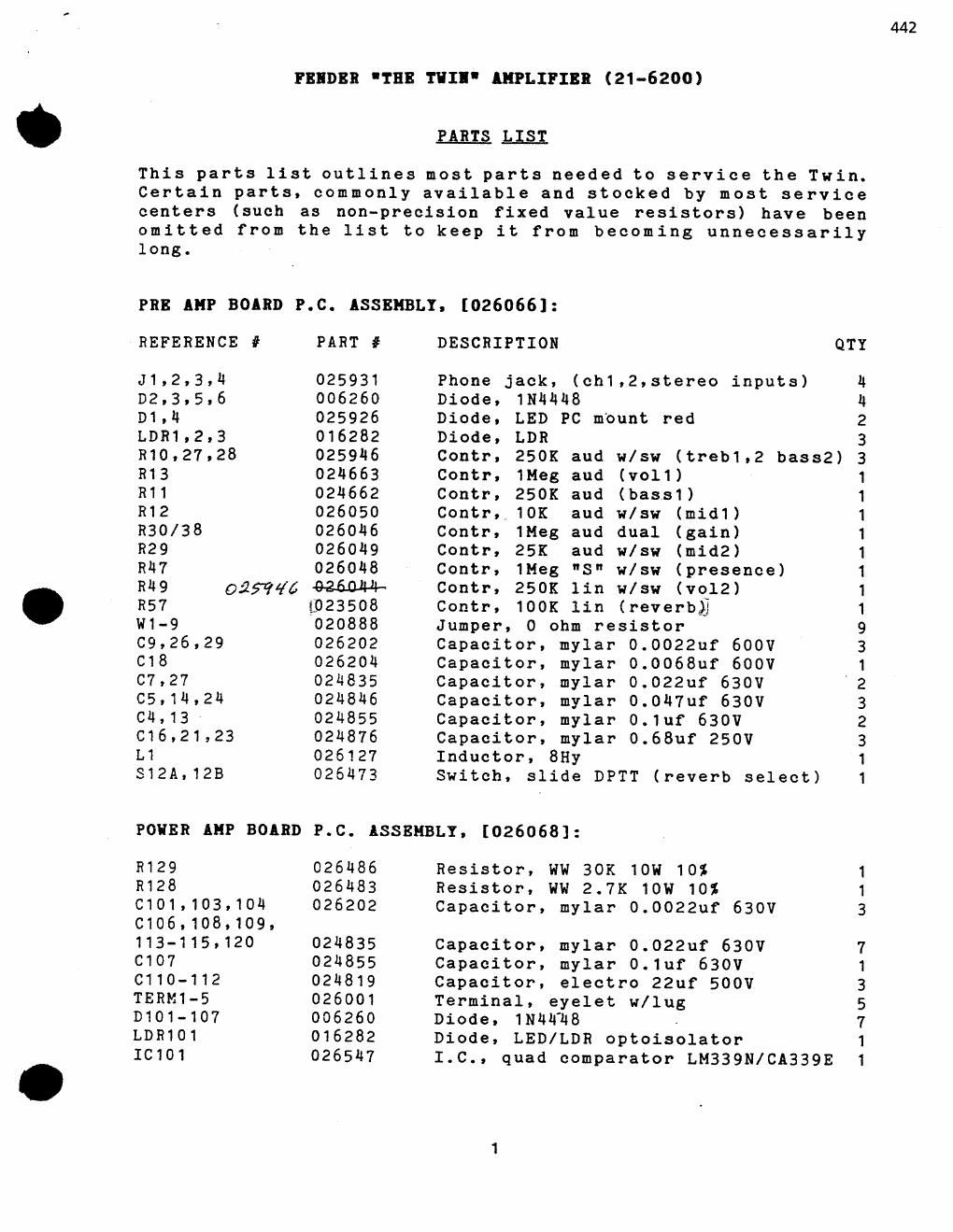

Page 2
443
POHBR SUPPLY BOARD P.C. ASSEMBLY. [026067]:
REFERENCE # PART # DESCRIPTION QTY (
FH301 022506 Fuse holder 1
FCR301 022507 Fuse carrier BAG 1
F301 013737 Fuse. HA $10 810 1
FC302 025996 Fuse clips 2
F302 013202 Fuse..5A 810 810 1
D307 006260 Diode. 1Nu048 signal 1
0301-306 026730 Diode. 1N5062 1A 800V 6
R306 026585 Resistor. WW 1.2K 3W 1
0303.300,305 026502 Capacitor, electro 100uf 100V 3
C301.302 013638 Capacitor. electro 220uf 285V 2
0306,307 024820 Capacitor, electro h7uf 3507 2
TERM1-13 026001 Terminal, eyelet w/lug 13
FA1.2 025802 Faston tab .250 2
w1,2 020888 Jumper. 0 ohm resistor 2
BIAS BOARD P.C. ASSEMBLY. [026370]:
J201-20H 025929 Jack. phone (effects. thru. ftsw) 4
TP201-203 026081 Jack. test (bias/balance set up) 3
R209.212 026133 Contr, trim 25K lin (bias/balance) 2
8201 026073 Switch. slide DPTT (loop level) 1
C201 024876 Capacitor. mylar 0.68uf 250V 1
C202 026502 Capacitor, electro 100uf 100V 1
w201 020888 Jumper. 0 ohm resistor 1
D201 006260 Diode, 1N0048 1
CHASSIS MOUNTED COMPONENTS:
T1 026B78 Output transformer 1
T2 026077 Power transformer 1
T3 022921 Reverb driver transformer 1
L2 022707 Choke, filter 1
89,10 026079 Switch, DPST (on/off. standby) 2
S11 -§025380 Switch, DPDT (output hi/lo 1
$8 026u72 Switch, DPTT (impedance selector) 1
--- 023606 Tube socket 9-pin min 7
~--- 023580 Tube socket 8-pin oetal u
--~- 023598 Tube shield w/spring 7
---- 02042H Tube retainer ring u
V5.6,10111 013301 12AX7/7025 electron tube 5
vu,8 023531 12AT7 electron tube 2
V1.2,3.7.9 023556 6L6GC electron tube u
D308 027287 Panel mount red LED 1
-- 027288 LED red lens 1
-- 020772 Jack, stereo phono dual reverb 1
~--- 021626 Jack. 3/8 N.0. (ext spkr par'l) 1
--- 068270 Jack. 3/8 N.C. (ext spkr ser's, out) 2
--- 026071 Jack. XLR (bal line out) 1
