Page 1

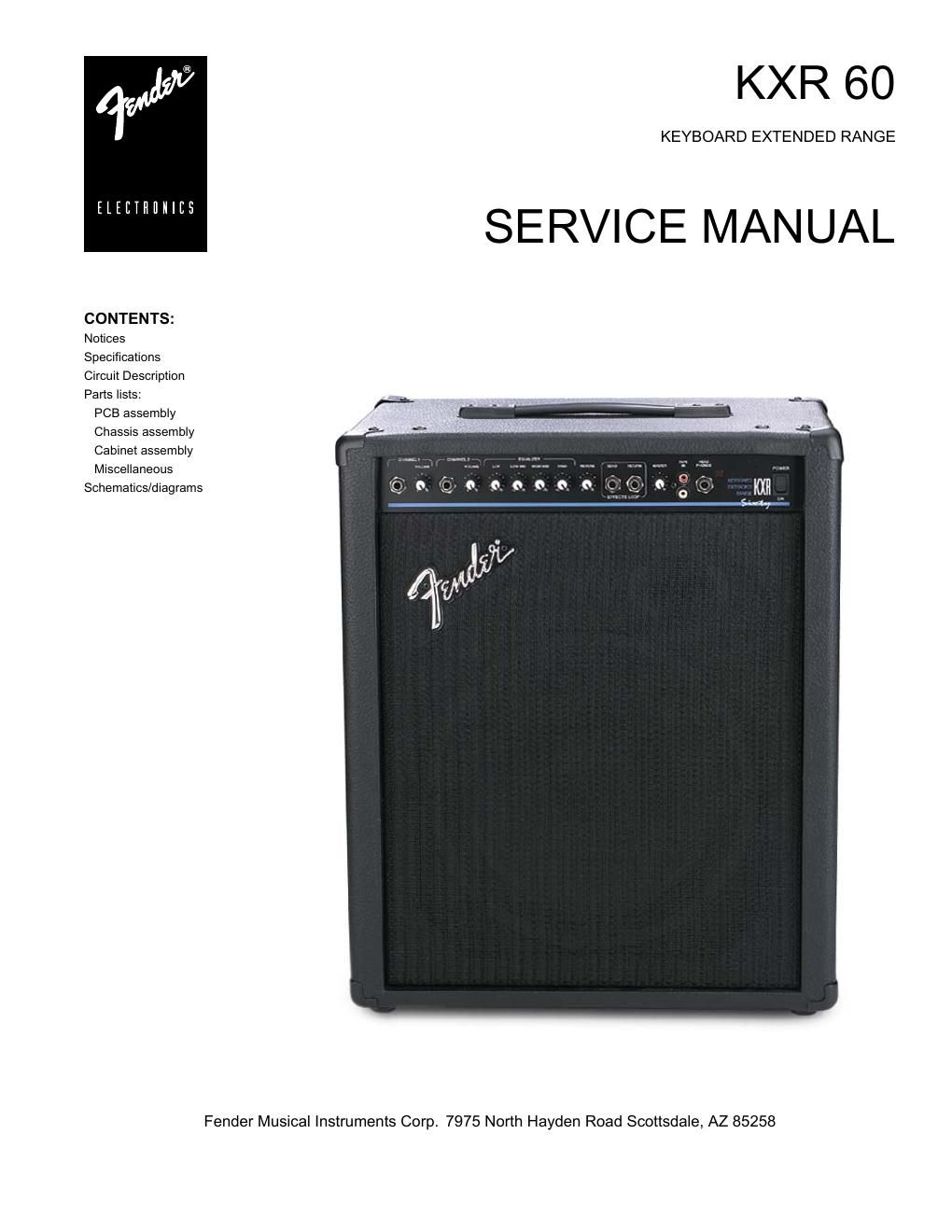

KXR 60 KEYBOARD EXTENDED RANGE (This is the model name for warranty claims) SERVICE MANUAL MARCH 1996 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
KXR 60 SPECIFICATIONS Product Release No.:PR 299 (This is not a model number) POWER AMPLIFIER SECTION: Power output:50 Watts RMS Distortion at 50 Watts:Less than .1% @ 1kHz, before compression Less than 1% @ 1kHz, maximum compression Rated load impedance:8 Ω Sensitivity:370 mV RMS Input impedance:33K Ω DELTACOMP Range:20dB PREAMP SECTION: Input Impedance:36k Ω Sensitivity for 50 watts:28 mV CHANNEL and MASTER VOLUME at maximum all tone controls at 0 Equalizer:Low +/- 12dB at 100Hz (shelving) Low Mid +/- 12dB at 338Hz High Mid +/- 12dB at 1188Hz High +/- 12dB at 4 kHz (shelving) DIMENSIONS:Height: 22" (55.9 cm) Width: 18" (45.7 cm) Depth: 12" (30.5 cm) Weight:46 lbs. (21 kg) Product specifications are subject to change without notice
