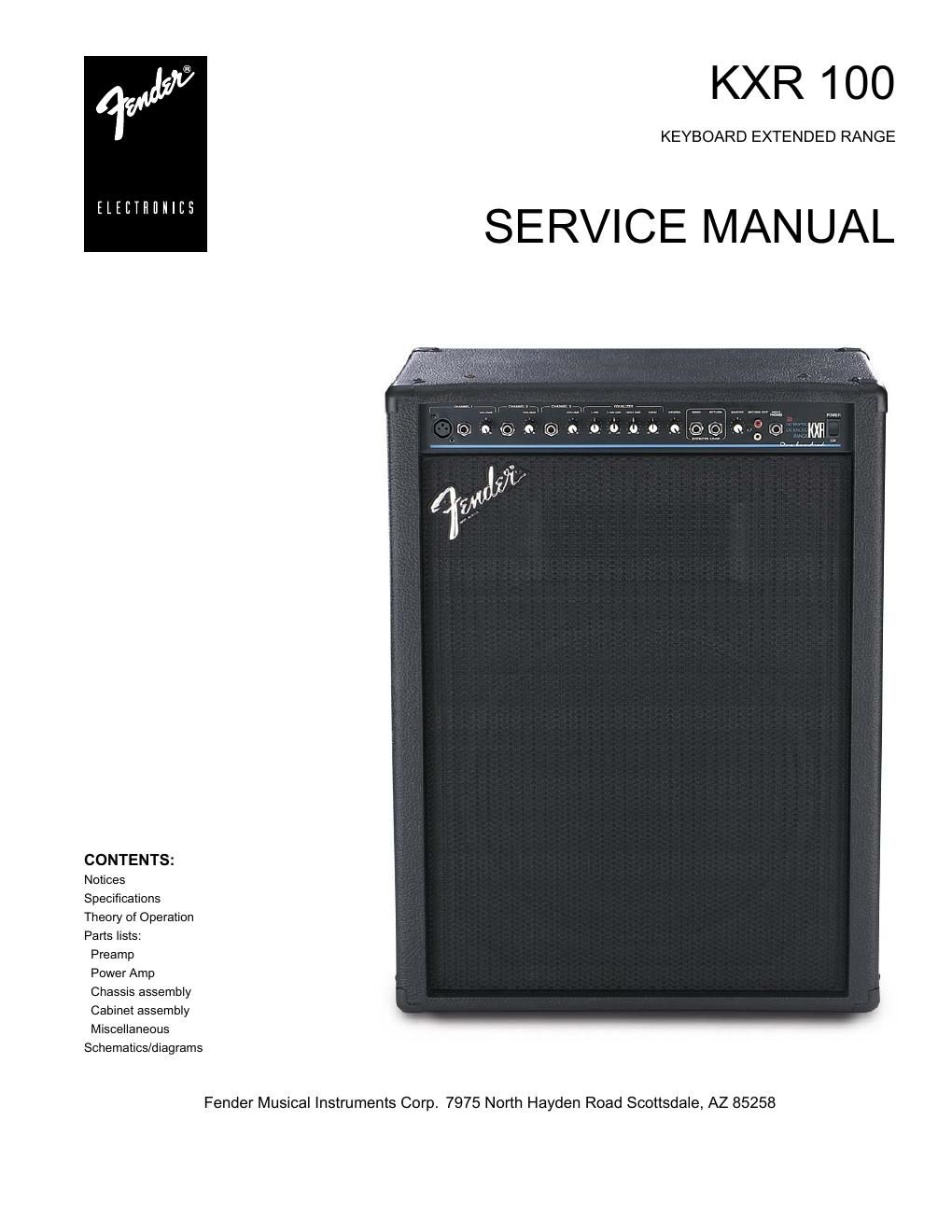

Page 1
KXR 100 (This is the model name for warranty claims) KEYBOARD EXTENDED RANGE SERVICE MANUAL FEBRUARY 1995 REV A TYPE PR262 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
KXR 100 SPECIFICATIONS Part Number:120V Version : 22-8501 230V Version : 22-8561 Power Amp Section Power output:80 Watts RMS Sensitivity:370mV RMS Input impedance:33K Ω Rated Load Impedance:4 ohms Distortion at rated power:Less than .1% @ 1kHz, before compression Less than 1% @ 1kHz, maximum compression DELTACOMP™ range:20dB PREAMP SECTION: Input Impedance:XLR – 10k Ω ¼ phone – 36 k Ω Sensitivity for 80 watts:XLR – 2.8 mV CHANNEL and MASTER¼ phone – 28mV VOLUME at maximum all tone controls at 0 Equalization Range:Low +/- 12dB at 100Hz Low Mid +/- 12dB at 338Hz High Mid +/- 12DB at 1588Hz High +/- 12dB at 4 kHz (shelving) Dimensions:Height: 27 1/2" (69.8 cm) Width: 20 1/2 " (52.1 cm) Depth: 12" (30.5 cm) Weight:55 lbs. (25 kg) Product specifications are subject to change without notice
