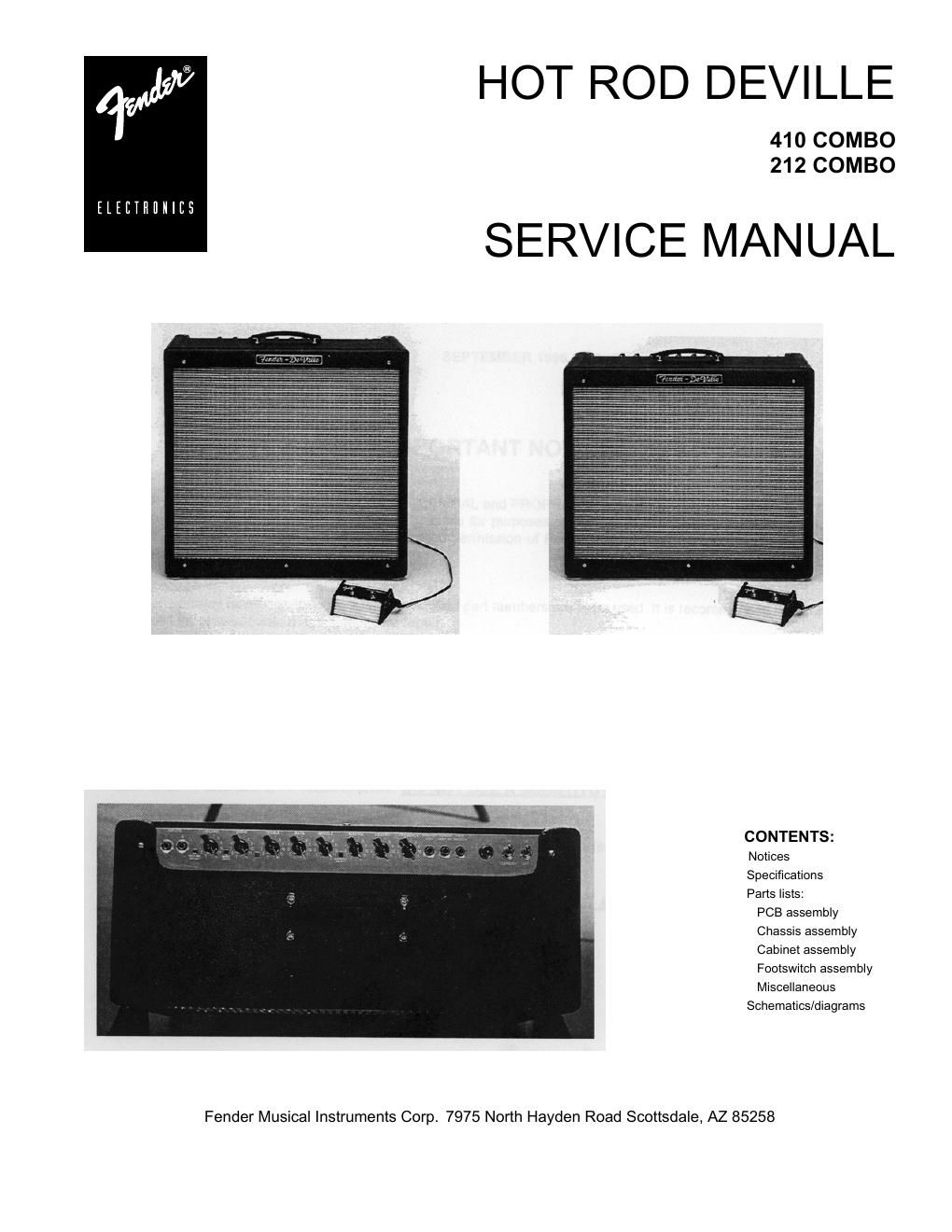

Fender hotrod deville service manual

Page 2

HOT ROD DEVILLE SPECIFICATIONS Product Release No.:PR 247 (This is not a model number) Hot Rod Deville Hot Rod Deville 212 Input Impedance:Input 1: 1M ohm Input 1: 1M ohm Input 2: 136kΩ Input 2: 136kΩ Power output:60 Watts RMS into 60 Watts RMS into 8 or 4Ω @ 5% THD 4 or 2Ω @ 5% THD Preamp Out Output Impedance:1.5kΩ max 1.5kΩ max Power Amp In Sensitivity:230mV for clipping 230mV for clipping Power Amp in Input Impedance:54kΩ 54kΩ Speaker Complement:Four 8 ohm Fender Model Two 8 ohm Fender Re-issue V1030 Special Design 10 Gold Label 12 speakers Speakers (P/N 048832) (P/N 037617) DImensions: Height:23.5 (59.7 cm) 21 (53.3 cm) Width:23.5" (59.7 cm) 24.25 (61.6 cm) Depth:10.75" (27.3 cm) 10.75 (27.3 cm) Weight:50 lbs. (22.7 kg) 53.5 lbs. (24.2kg) Product specifications are subject to change without notice PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 050388003 PCB ASSY H/R DEVILLE 212 STUFFED 3 028104 BUTTON PUSH SWITCH BLACK @S1,2,3 1 050688 CABLE JMPR 2 CKT .156 ROUND 3 050687 CABLE JMPR 6 CKT .156 ROUND 1 041311 CABLE REVERB @U2 4 038689001 CAP AE AX .47uF 100V C12,16,19,20 1 038690001 CAP AE AX 1.0uF 100V C8 5 009512 CAP AE AX 22uF 25V 20% C9,14,21,49,50 2 036954 CAP AE RDL 22uF 63V 20% C38,45 2 024819 CAP AE AX 22uF 500V C35,36 1 038693001 CAP AE AX 47uF 16V C1 2 024820 CAP AE AX 47uF 350V C33,34 4 031040 CAP AE RDL 100uF 100V 20% C37,39,42,43 2 028953 CA[ AE AX 100uF 350V 20% C31,32
