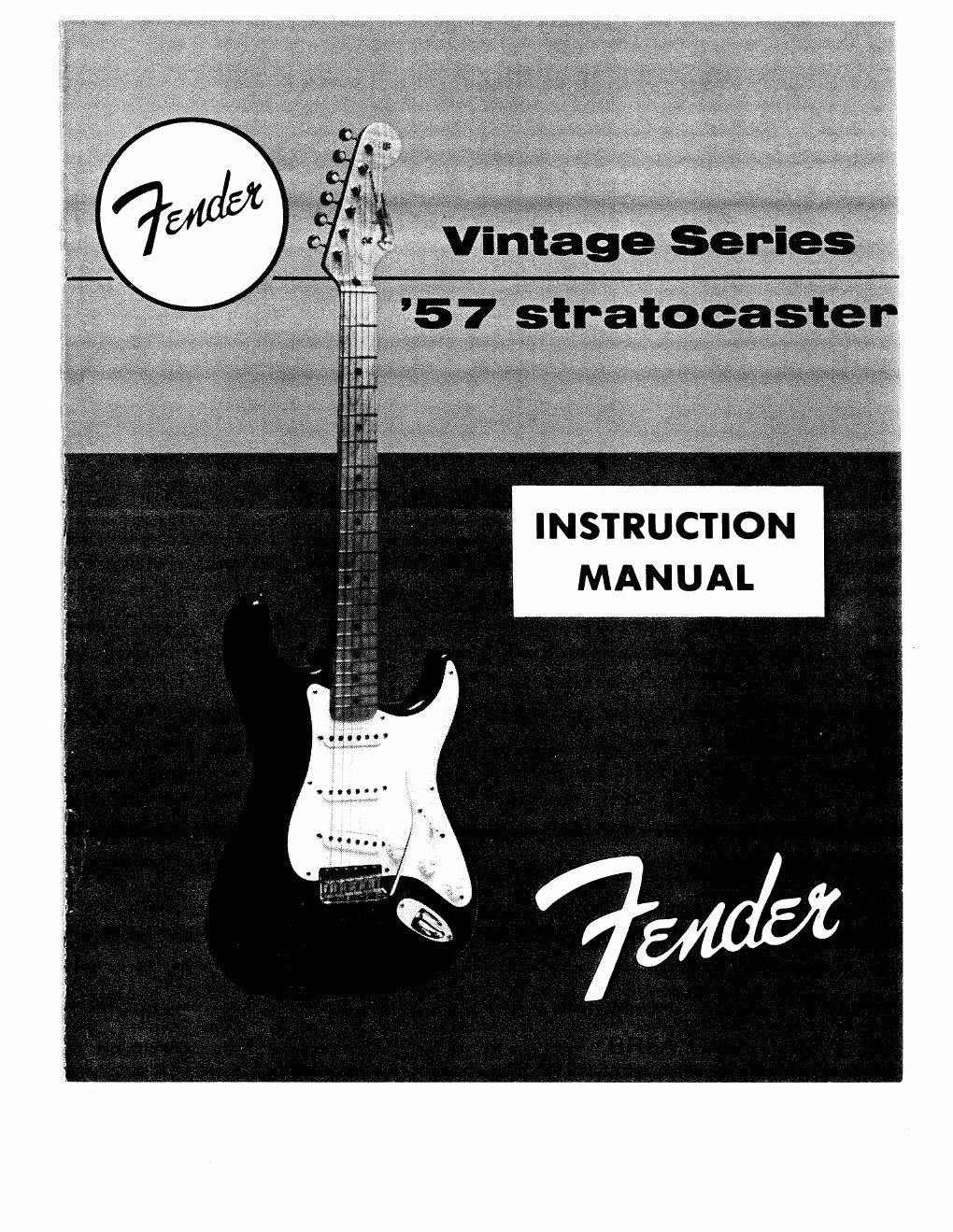

INSTRUCTION
MANUAL

Page 2

stratocaster

general description

MODERN STYLED NERD

Places keys all on one side for easier tuning.
5 Provides straight pull on all strings. Safety string
posts with steel and brass gears (non-slip).

rnsr ACTION NECK

Neck, of white maple, designed and graduated for

fast action and more comfortable playing. Em-

ploys adjustable truss rod.

Maple neck.

Deep cutaway for access to all twenty-one frets.
PICKUPS

(l) Rhythm Pickup

(2) Normal Tone Pickup

(3) Lead Pickup

Pickup elevating screws located at either end of

pickups for tone balance adjustment.

TREMOLD ARM

Conveniently located for use while playing and
may be swung around completely out of the play.
f ers way when not in use.

PICKUP SELECTOR SWITCH

(a) Forward position for deep soft rhythm work.
(b) Middle position for straight rhythm work.
(c) Rear position for lead work.

VOLUME CONTROL

; Functions in all positions of lever switch and
1 tone control.

TONE CONTROLS

(1) Functions as rhythm pickup modifier -
selector switch in forward position.

(2) Functions as straight rhythm pickup modifier
- selector switch in middle position.

Lead pickup does not require additional tone

modification.

i
E
3
l
l
l
l

Recessed plug receptacle easily accessible and
positioned to provide longer cord life.

COMFORT CONTOURED BODY
