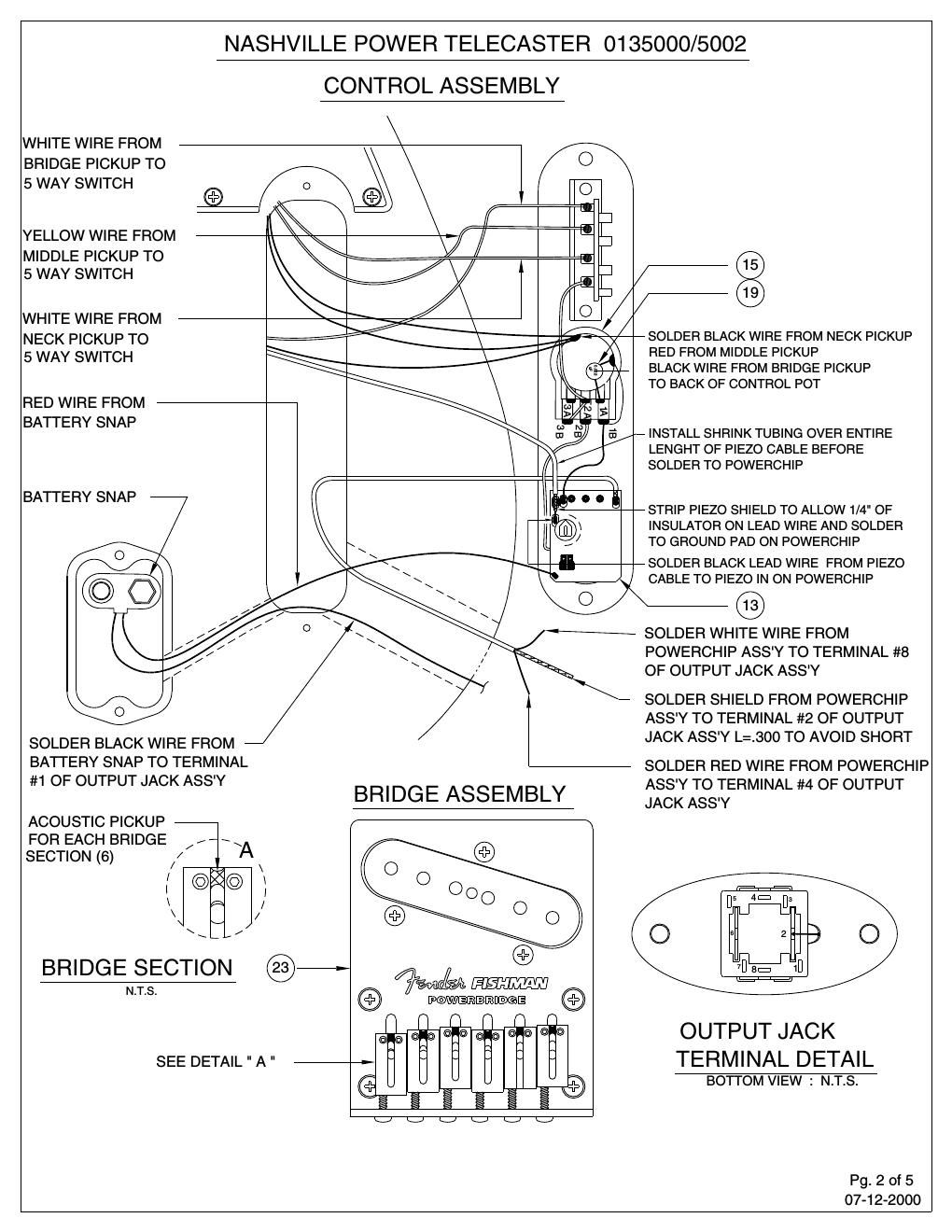

Fender nashville power tele wiring diagram

This is the 2 pages manual for fender nashville power tele wiring diagram.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
fender nashville power tele wiring diagram

Extracted text from fender nashville power tele wiring diagram (Ocr-read)

Page 1

SCALE: N.T.S. SCALE: N.T.S. TOP VIEW BOTTOM VIEW JUMPER IN THIS POSITION RED WIRE FROM BATTERY-SNAP RED WIRE FROM TWO CONDUCTOR SHIELDED CABLE TURN TRIM-POT FOR PIEZO VOL FULL CLOCKWISE SHIELD FROM TWO CONDUCTOR CABLE MAG-INPUT PAD WHITE WIRE FROM TWO CONDUCTOR SHIELDED CABLE NASHVILLE POWER TELECASTER 0135000/5002 FISHMAN PREAMP POWERCHIP (WIRING DETAIL) 07-12-2000 Pg. 3 of 5
