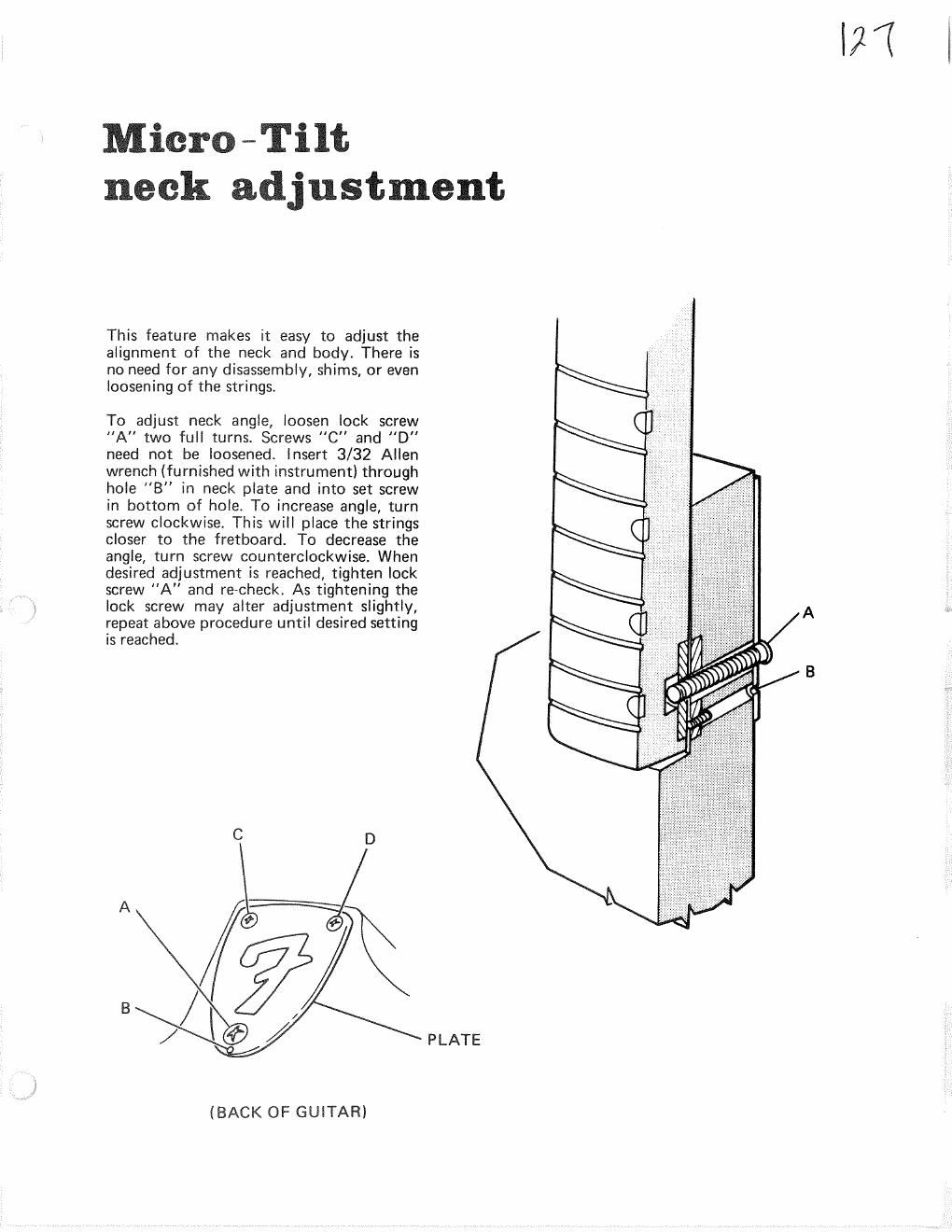

Micro «Tilt
neck adjustment
This feature makes it easy to adjust the
alignment of the neck and body. There is
no need for any disassembly, shims, or even . _
loosening of the strings. ' ,
To adjust neck angle, loosen lock screw
"A two full turns. Screws C" and "D"
need not be loosened, Insert 3/32 Allen
wrench (furnished with instrument) through
hole "B" in neck plate and into set screw
in bottom of hole. To increase angle, turn
screw clockwise. This will place the strings
closer to the fretboard. To decrease the
angle, turn screw counterclockwise, When
desired adjustment is reached. tighten lock
screw A" and re-check. As tightening the
lock screw may alter adjustment slightly,
repeat above procedure until desired setting
is reached.
B/l,
/ / PLATE
(BACK OF GUITAR)
