Fender 50s telecaster switch control
This is the 1 pages manual for fender 50s telecaster switch control.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 1

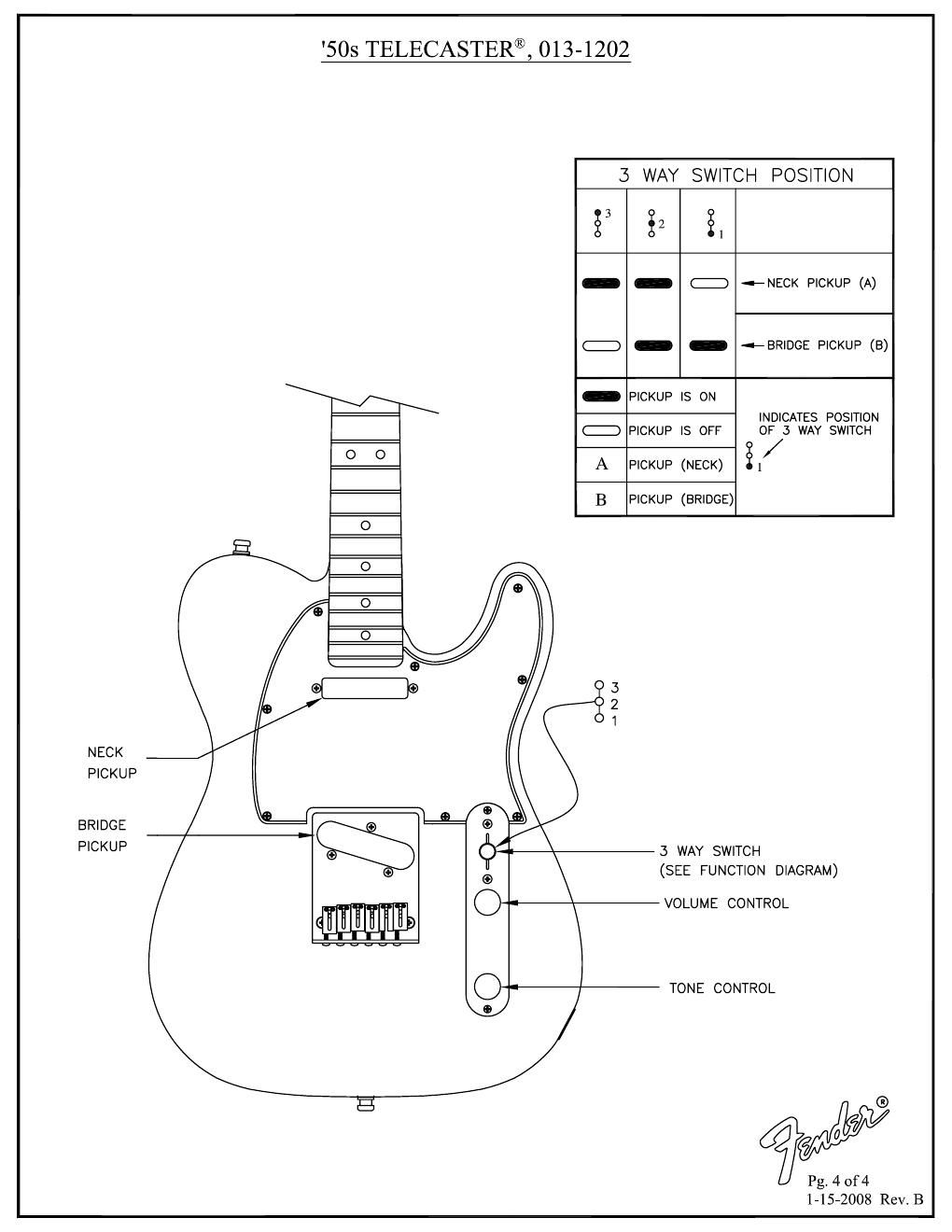

Extracted text from fender 50s telecaster switch control (Ocr-read)
Page 1
NECK
PICKUP
BRIDGE
PICKUP
'SOS TELECASTER®, 013-1202
3 WAY SWITCH POSITION
3
I §2 §1
- - (:) <-NECK PICKUP (A)
<:) - - <-BRIDGE PICKUP (B)
- PICKUP IS ON
INDICATES POSITION
C) PICKUP IS OFF OF 3 WAY SWITCH
A PICKUP (NECK) $1
B PICKUP (BRIDGE)
3 WAY SWITCH
VOLUME CONTROL
TONE CONTROL
(SEE FUNCTION DIAGRAM)
Pg 4 of4
1-15-2008 Rev. B
