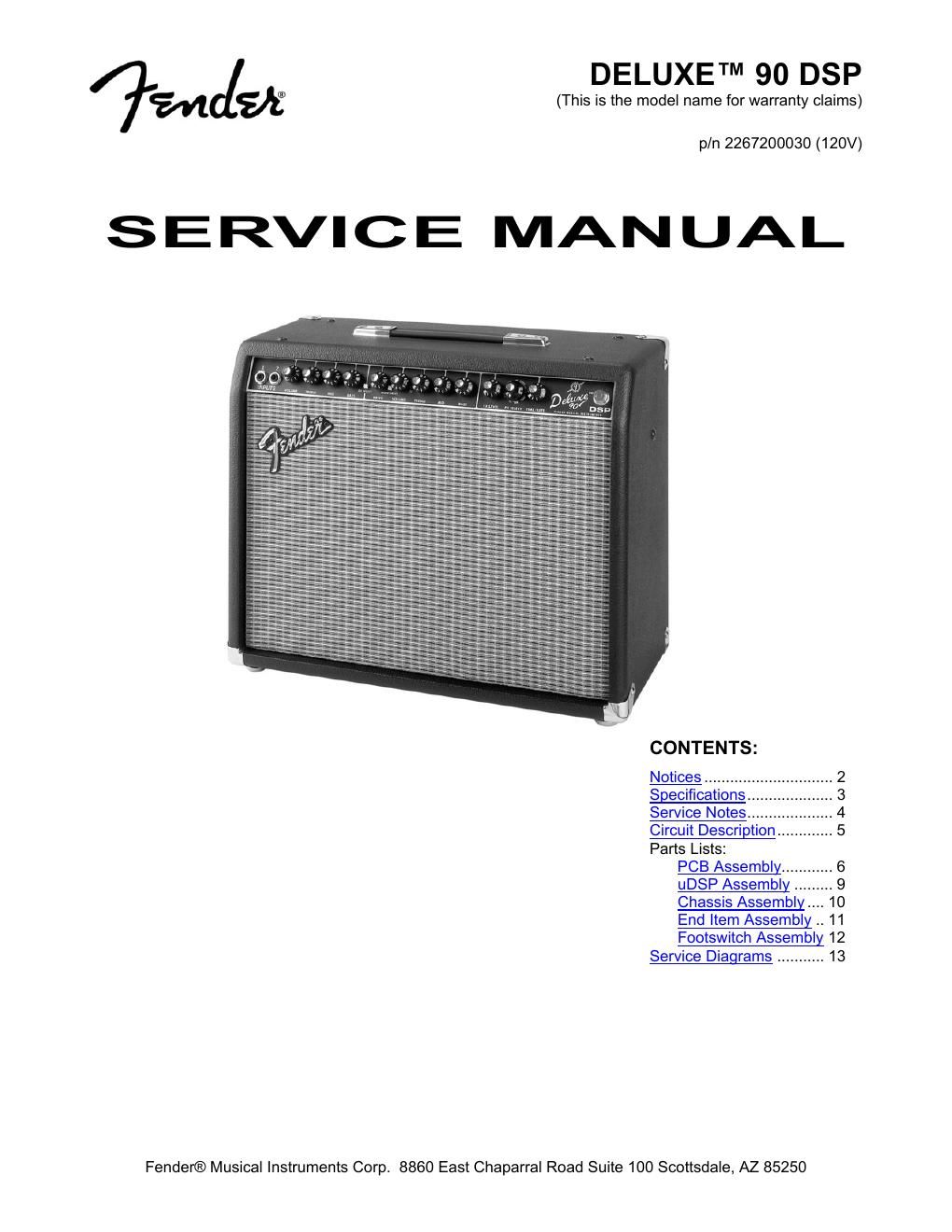

Page 1

6wa

DELUXE TM 90 DSP

(This is the model name for warranty claims)

p/n 2267200030 (120V)

SERVICE MAN UAL

CONTENTS:

Notices ..
Sgecificatlons ..
Service Notes..
Circuit Descrigtion..
Parts Lists:
PCB Assembly ............ 6
uDSP Assembly .. 9
Chassis Assembly 10
End Item Assembly .. 11
Footswitch Assembly 12
Service Diagrams ........... 13

01-wa

Fender® Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250

Page 2

7'wclflf

2
DELUXET'V' 90 DSP

(This is the model name for warranty claims)

June, 02

IMPORTANT NOTICE

c Copyright © 2002 FMIC. All rights reserved. All
information contained herein is CONFIDENTIAL
and PROPRIETARY and is the property of
Fender® Musical Instruments Corporation. It is
not to be sold or assigned to another party and is
disclosed solely for use by Fender Authorized
Service Centers for purposes of product service
and maintenance. All information is not to be dis-
closed to others without the expressed permission
of Fender® Musical Instruments Corporation. All

specifications are subject to change without no-
tice. This information and any copies produced
electronically or othenivise must be surrendered
upon demand of Fender Musical Instruments Cor-
poration.

- Parts marked with two asterisks (**) indicate the
required use of that specific part. This is neces-
sary for RELIABILITY and SAFETY requirements.
DO NOT USE A SUBSTITUTE!

PARTS LIST CODES

The description codes used in the itemized Parts Lists are defined below:

CAPACITOR CODES

CAP AE = Aluminum Electrolytic
CAP CA = Ceramic Axial

CAP CD = Ceramic Disk

CAP MPF = Metalized Polyester Film
CAP MY = Mylar

CAP PFF = Polyester Film/Foil

RESISTOR CODES

RES CC = Carbon Comp
RES CF = Carbon Film
RES FP = Flame Proof
RES MF = Metal Film
RES W = Wire Wound

HARDWARE CODES

BLX = Black Oxide

CR = Chrome Plated

HWH = Hex Washer Head

M = Machine Screw

NI = Nickel Plated

OHP = Oval Head Phillips
PB = Particle Board

PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
SMA = Sheet Metal "A" Point
SMB = Sheet Metal "B" Point
SS = Stainless Steel

TF = Thread Forming

Z] = Zinc Plated
