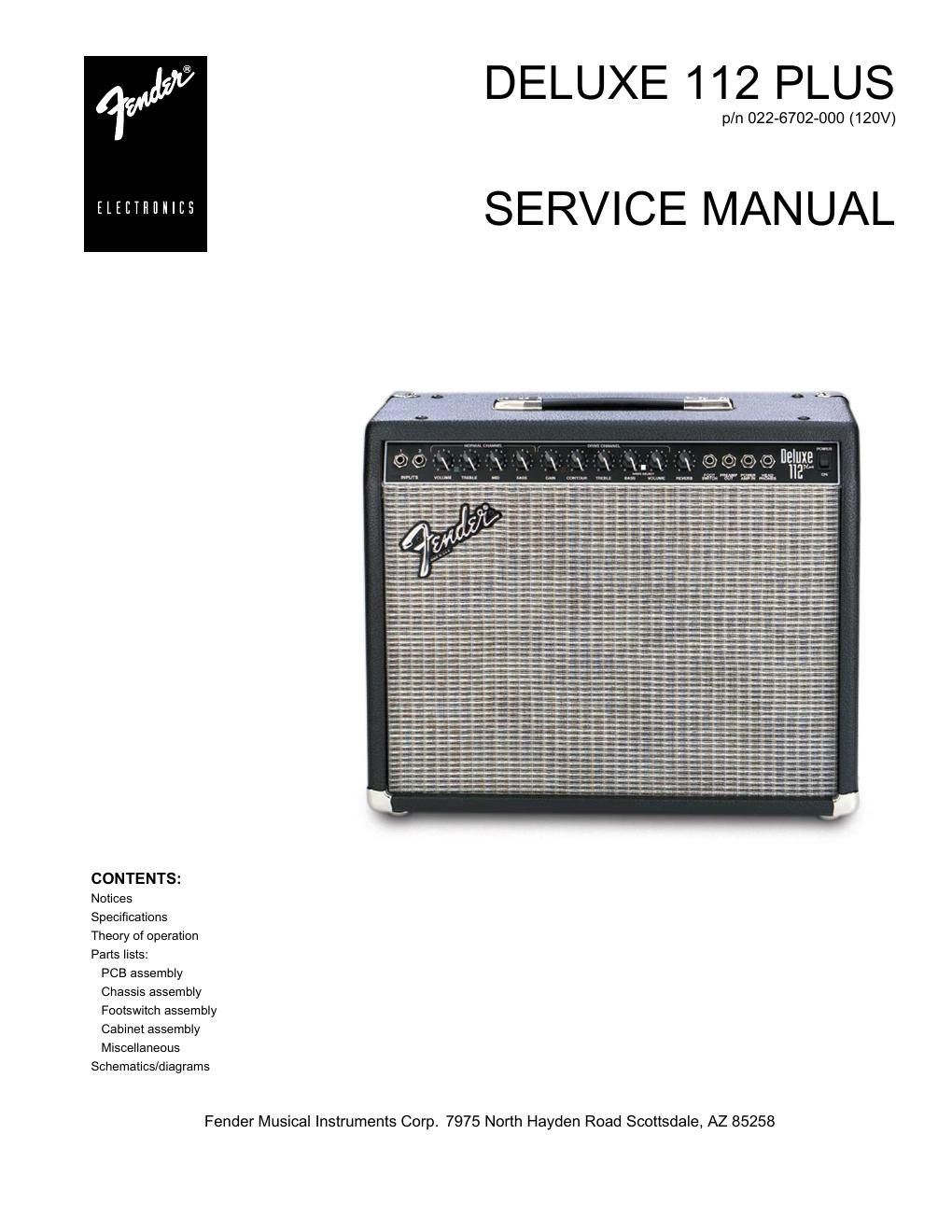

Page 1
DELUXE 112 PLUS (This is the model name for warranty claims) SERVICE MANUAL APRIL 1995 REV A IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated
Page 2
DELUXE 112 PLUS SPECIFICATIONS Product Release No.:PR 291 (This is not a model number) Part Number:120V Version : 22-6702 100V : 22-6772 230V : 22-6762 Power Requirements:180-120VAC, 50-60 Hz, 360W max. 230-240VAC, 50 Hz, 360w max. Input impedance:Input 1: 850kΩ Input 2: 66kΩ Power output:94 watts RMS into 4Ω at 5% THD Effects Loop:Preamp Output Impedance: 1kΩ Power Amp Input Impedance: 44kΩ Power Amp Sensitivity: 1.0V for Clipping Dimensions:Height: 16 1/2" (41.9 cm) Width: 20 5/8" (50.5 cm) Depth: 9" (22.9 cm) Weight:33 lbs. (14.9 kg) Product specifications are subject to change without notice
