Page 1

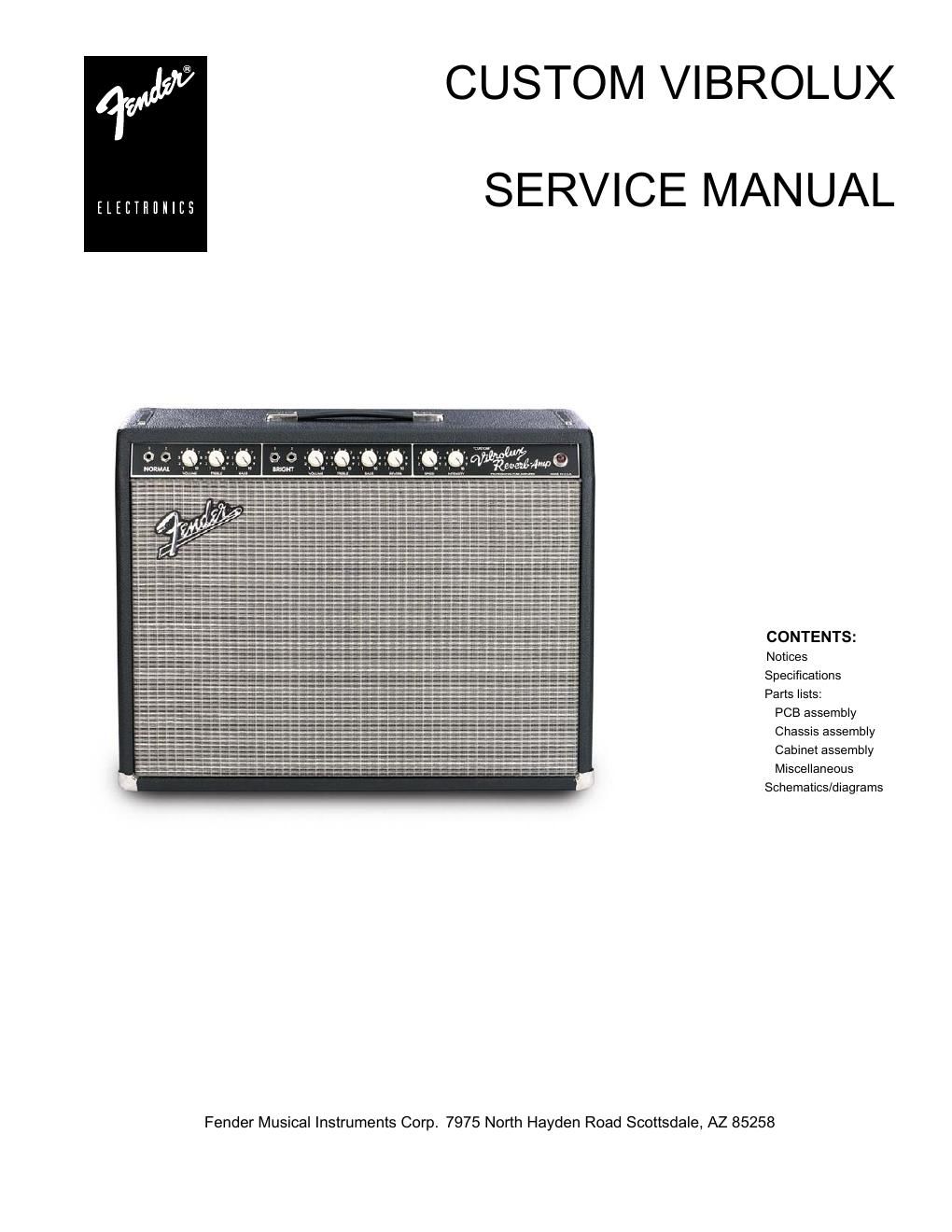

CUSTOM VIBROLUX (This is the model name for warranty claims) SERVICE MANUAL JANUARY 1995 IMPORTANT NOTICE: The information contained herein is CONFIDENTIAL and PROPRIETARY to Fender Musical Instruments Corp. It is disclosed solely for use by qualified technicians for purposes of equipment maintenance and service. It is not to be disclosed to others without the expressed permission of Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. Parts marked with an asterisk ( *) indicate the required use of that specific part. This is necessary for RELIABILITY and SAFETY requirements. DO NOT USE A SUBSTITUTE! A coded naming convention is used in the description of certain parts. The codes and what they mean are as follows: CAPACITOR CODES HARDWARE CODES CAP AE = Aluminum Electrolytic BLX = Black Oxide CAP CA = Ceramic Axial CR = Chrome Plated CAP CD = Ceramic Disk HWH = Hex Washer Head CAP MPF = Metalized Polyester Film M = Machine Screw CAP MY = Mylar NI = Nickel Plated CAP PFF = Polyester Film/Foil OHP = Oval Head Phillips PB = Particle Board RESISTOR CODES PHP = Pan Head Phillips PHPS = Pan Head Phillips Sems RES CC = Carbon Comp SMA = Sheet Metal "A" Point RES CF = Carbon Film SMB = Sheet Metal "B" Point RES FP = Flame Proof SS = Stainless Steel RES MF = Metal Film TF = Thread Forming RES WW = Wire Wound ZI = Zinc Plated

Page 2

CUSTOM VIBROLUX PARTS LIST PRINTED CIRCUIT BOARD ASSEMBLY QTY PART # DESCRIPTION REFERENCE DESIGNATION 1 041311 CABLE REVERB P1-4 6 009512 CAP AE AX 22UF 25V 20% C1,6,12,14,15,25 5 024819 CAP AE AX 22UF 500V C31-35 1 024820 CAP AE AX 47UF 350V C37 1 036654 CAP AE RDL 22UF 63V 20% C30 1 031040 CAP AE RDL 100UF 100V 20% C36 025995 CAP CD/FS 1 020909 CAP CD 47PF 1000V 10% C11 2 020867 CAP CD 330PF 1000V 10% C2,7 1 020842 CAP CD 500PF 1000V 10% C13,18 1 020842001 CAP CD 500PF 1000V 10% C16 2 024849 CAP MP .0068UF 400V C26,27 1 024833 CAP MPF RDL .047UF 400V 10% C17 2 024839 CAP MPF .033UF 400V C23,24 2 024845 CAP MPF RDL .047UF 400V 10% C4,9 1 024853 CAP MPF RDL .1UF 250V 10% C19 4 024854 CAP MPF RDL .1UF 400V 10% C3,8,28,29 2 024855 CAP MPF RDL .1UF 630V 10% C21,22 2 026204 CAP PFF RDL .0068UF 600V C5,10 1 036964 CONTROL 100K LINEAR R30 (REVERB) 2 036965 CONTROL 250K 10% AYDUI R7,18 (BASS) 2 036967 CONTROL 250K 20% AUDIO W/TAP R9,20 (TREBLE) 1 036962 CONTROL SNAPIN 250K TAPER R57 (INTENSITY) 1 036963 CONTROL 1 MEG 10% REV AUDIO R54 (SPEED) 2 036966 CONTROL 1 MEG 20% AUDIO R10,21 (VOLUME) 5 026730 DIODE 1N4006/1N5062 800PRV 1A CR1-5 14 025802 FSTN TAB MALE .250X.032 PCB MT CP1,2,5-14,28,29,31,33,35,36 14 026000 FSTN TAB AMALE PCB MT .187X.032 CP15-26,37,38 1 022546 FUSE HOLDER PCB MTG UNIVERSAL XF1 1 022547 FUSE CARRIER 3AG 1 077982 FUSE QA 1-1/4X1/4 250V 3A 4 037117 JACK PCB MONO CLOSED CKT J1-4 (NORMAL BRIGHT INPUTS) 1 013043 JACK PHONE STEREO 12B J5 (FOOTSWITCH) 1 049183 JUMPER WIRE 22GA .8X.175 13 020888 JUMPER WIRE 22GA .5X.175 W1-10,12-14, ACROSS R42 1 036989 PCB 63 VIBROVERB (RAW BOARD) 047555 PCB ASSY VIBROLUX (STUFFED) 2 026368 RES CF 1/2W 5% 100 OHM R62,63 1 048903 RES CF 1/2W 5% 2.7K R58 1 048903 RES CF 1/2W 5% 18K R59 1 025832 RES CF 1/2W 5% 22K R22 1 028857 RES CF 1/2W 5% 68K R64 1 025115 RES CF 1/2W 5% 82K R43 6 025116 RES CF 1/2W 5% 100K R4,15,29,34,44,55 1 036957 RES CF 1/2W 5% 470K R51 2 024964 RES CF 1/4W 5% 820 OHM R24,39 4 024969 RES CF 1/4W 5% 1.5K R5,16,28,33 1 024977 RES CF 1/4W 5% 4.7K R52 2 024979 RES CF 1/4W 5% 6.8K R8,19 1 024987 RES CF 1/4W 5% 22K R56 1 028865 RES CF 1/4W 5% 30K R53 4 024995 RES CF 1/4W 55 68K R1,2,12,13 1 024996 RES CF 1/4W 5% 82K R65 2 024997 RES CF 1/4W 5% 100K R6,17 3 025059 RES CF 1/4W 5% 220K R27,45,46 2 028016 RES CF 1/4W 5% 300K R49*,50 1 025063 RES CF 1/4W 5% 390K R31 1 025065 RES CF 1/4W 5% 470K R32 6 025069 RES CF 1/4W 5% 1M R3,14,25,36,38,40 1 027347 RES FILM W1 5% 2.2K R26
